CCT5902-0871F: DescriptionMains Power Connector, 6A, 125/250VAC, Female,; CategoryThe connector The connector; File Size753KB，3 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

CCT5902-0871F Overview

Mains Power Connector, 6A, 125/250VAC, Female,

CCT5902-0871F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-1
Connector type	MAINS POWER CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	6A, 125/250VAC
Manufacturer's serial number	CCT5902
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

Power Connectors

CCT1102-0701F

AC Outlet (Polarized)

■

Specification

1. Rating : 15A, 125V AC

2. Contact Resistance : 50mΩ max.

3. Insulation Resistance : 100MΩ min. at 500V DC

. Withstanding Voltage : 2000V AC (for one minute)

5. Operating Temperature Range : –10˚C to +60˚C

6. Main Unit Material : Thermoplastic Resin, Black,

9V-1

7. Catalog No. : IR19-1

■

Note

Can be attached to the chassis by snap-in.

シャーシにはワンタッチで取付が可½です。

Approval Standards:

UL

CSA

■

Mounting Holes for Panel

11.4

12.5

2

22.5

Material: Metal

t=0.8 to 1.2mm

42.3

13.5

22

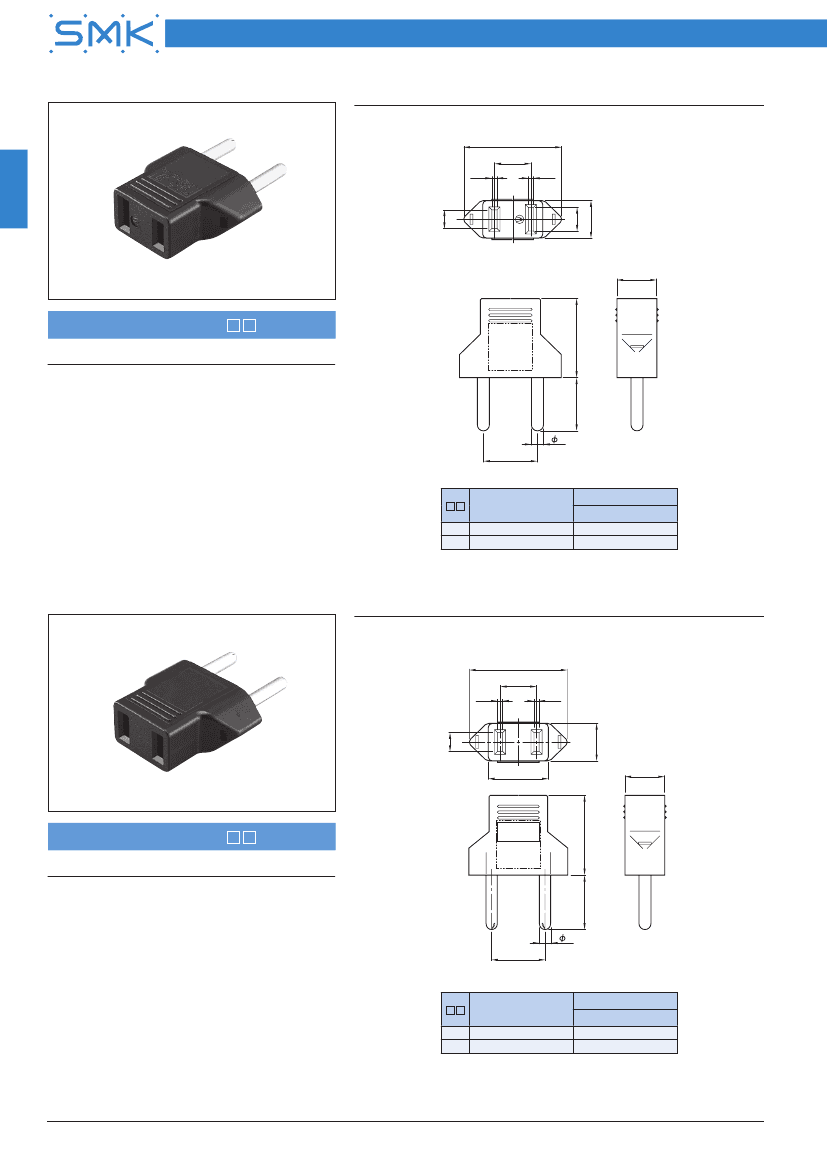

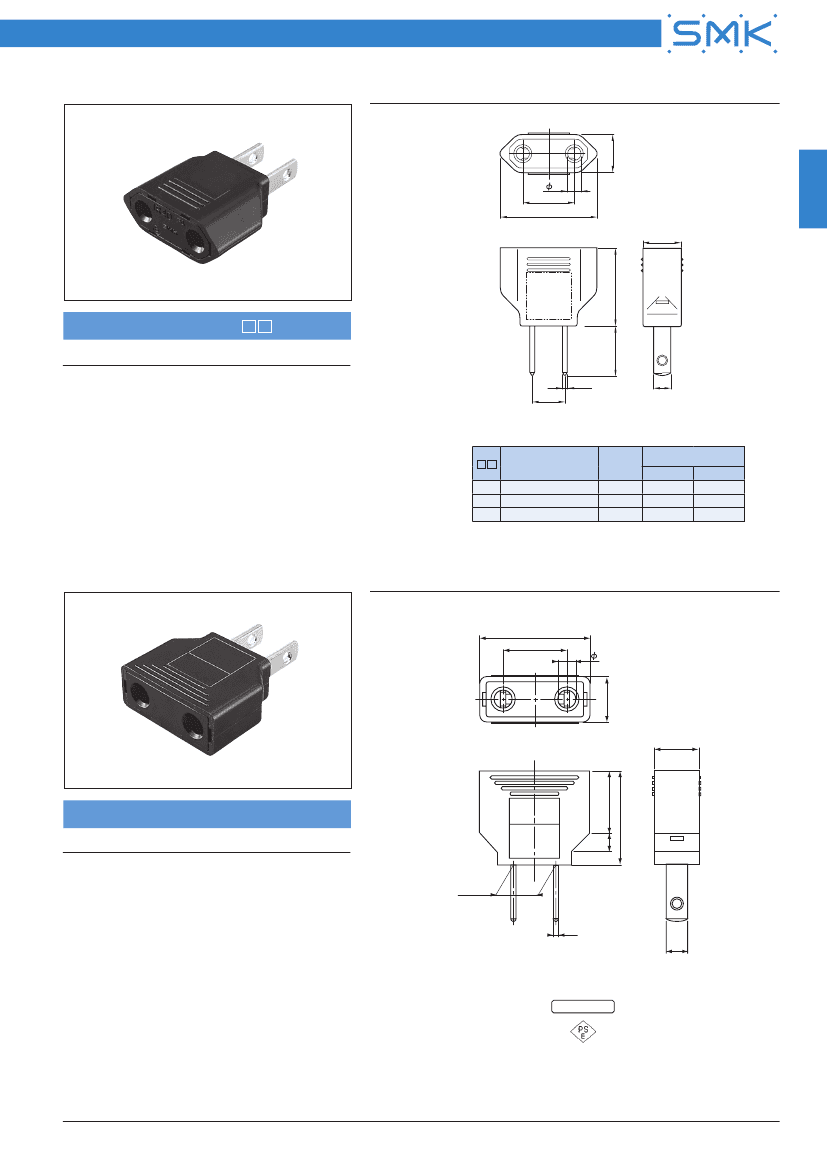

CCT5902-0901F

AC Adapter (Polarized)

1. Rating : 6A, 125V / 250V AC

2. Contact Resistance : 100mΩ max.

3. Insulation Resistance : 100MΩ min. at 500V DC

. Withstanding Voltage : 2000V AC (for one minute)

5. Operating Temperature Range : –20˚C to +70˚C

6. Main Unit Material : Thermoplastic Resin, Black,

9V-1

7. Catalog No. : IR1

19

■

Specification

28

4.0

19

Approval Standards:

UL

12

4.5

12

18.7

CCT5902-0871F Related Products

	CCT5902-0871F	CCT5902-0671F	CCT5902-0771F	CCT5902-0901F	CCT5902-0601F	CCT5902-0701F	CCT5902-0801F	CCT5902-1201F
Description	Mains Power Connector, 6A, 125/250VAC, Female,	Mains Power Connector, 6A, 125/250VAC, Female,	Mains Power Connector, 6A, 125/250VAC, Female,	Mains Power Connector, 6A, 125/250VAC, Female, Solder Terminal, LEAD FREE	Mains Power Connector, 6A, 125/250VAC, Female,	Mains Power Connector, 6A, 125/250VAC, Female, LEAD FREE	Mains Power Connector, 6A, 125/250VAC, Female,	Mains Power Connector, 6A, 125/250VAC, Female, LEAD FREE
Maker	SMK	SMK	SMK	SMK	SMK	SMK	SMK	SMK
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: UL 94V-1
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Power Connector Ratings	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC	6A, 125/250VAC
Manufacturer's serial number	CCT5902	CCT5902	CCT5902	CCT5902	CCT5902	CCT5902	CCT5902	CCT5902
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Total number of contacts	2	2	2	2	2	2	2	2
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99	EAR99	EAR99
Coupling type	-	-	-	SNAP	SNAP	SNAP	SNAP	SNAP
