THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
LOC
DIST
1
C
COPYRIGHT
20
-
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
B
REVISED PER ECR-15-006219
29APR2015
NK
JR
A
CIRCUIT #2
D
D
1. MATERIAL: NYLON UL94 - V0
COLOR: WHITE
2. ACCEPTS TE PIN CONTACTS
P/N'S 2238007 - ( )
3. HOUSING ACCEPTS OPTIONAL TPA
P/N'S 1969541 - ( )
1969592-8
& 1-1969592-0
SINGLE LATCH W/O CUTOUTS
4. MATES WITH TE PLUG HOUSINGS
P/N'S 1969540 - ( )
B
1-1969592-8 THROUGH 4-1969592-0
DOUBLE LATCH
C
1-1969592-2, 1-1969592-4
& 1-1969592-6
SINGLE LATCH W/ CUTOUTS
C
2.50
TYP
2.50
10.32
7.40
0.90
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
POS
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
52.89
50.39
47.89
45.39
42.89
40.39
37.89
35.39
32.89
30.39
27.89
25.39
22.89
20.39
17.89
15.39
12.89
DIM.B
50.79
48.29
45.79
43.29
40.79
38.29
35.79
33.29
30.79
28.29
25.79
23.29
20.79
18.29
15.79
13.29
10.79
DIM.A
4-1969592-0
3-1969592-8
3-1969592-6
3-1969592-4
3-1969592-2
3-1969592-0
2-1969592-8
2-1969592-6
2-1969592-4
2-1969592-2
2-1969592-0
1-1969592-8
1-1969592-6
1-1969592-4
1-1969592-2
1-1969592-0
1969592-8
PART NO.
B
B
19.97
11.05
CIRCUIT #1
A
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.25
-
-
01OCT2012
K. RANDOLPH
APVD
01OCT2012
K. RANDOLPH
PRODUCT SPEC
APPLICATION SPEC
A. NOEL
27SEP2012
NAME
TE Connectivity
A
108-2418
114-13315
-
-
WEIGHT
SEE NOTES
1471-9 (3/11)
SEE NOTES
Customer Drawing
A2
00779
SIZE

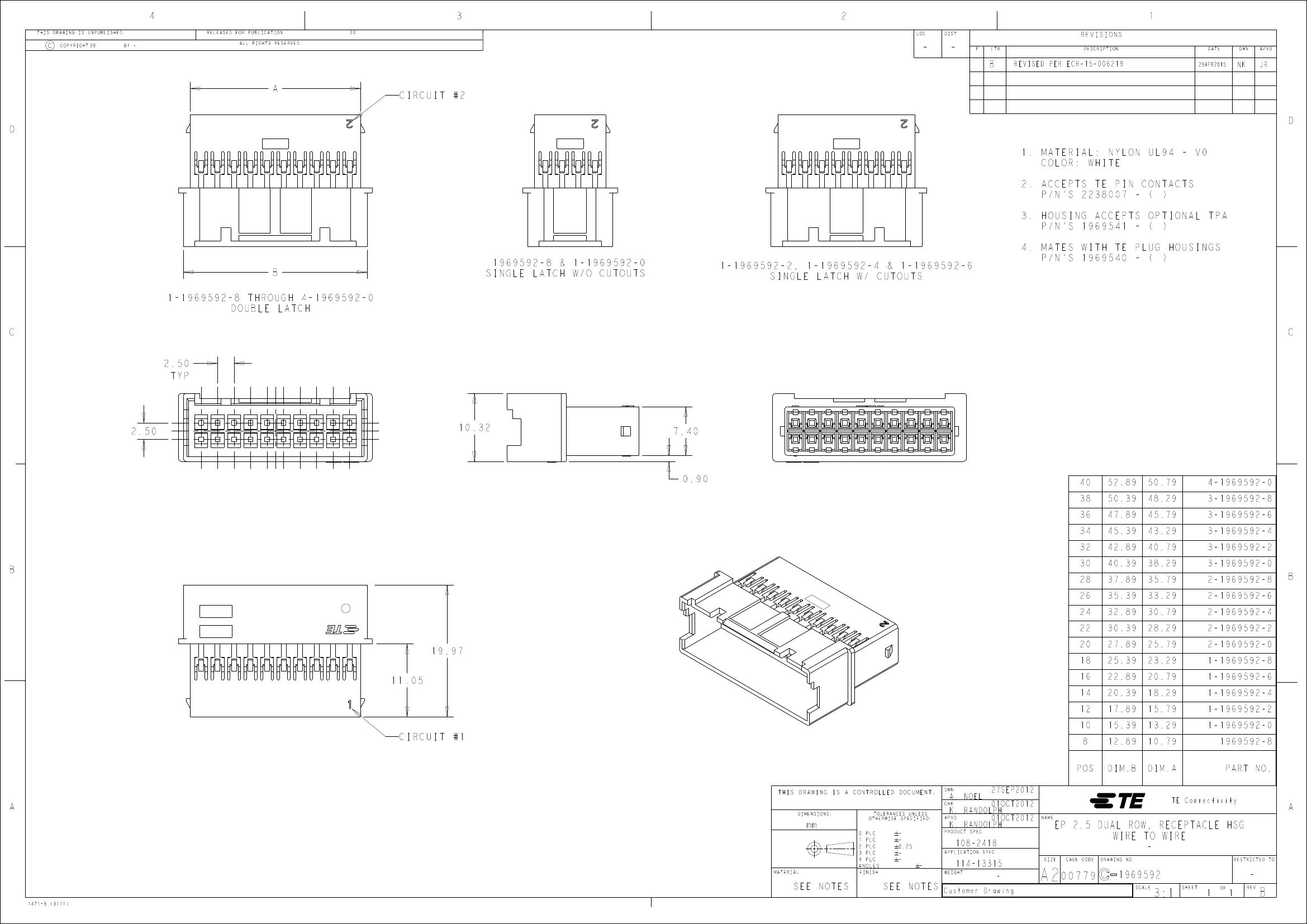

EP 2.5 DUAL ROW, RECEPTACLE HSG
WIRE TO WIRE
-
CAGE CODE
DRAWING NO
RESTRICTED TO
1969592
SCALE
3:1
SHEET
1
OF
1
REV
-
B
