AMS22B-40MZ5-B: DescriptionRF Connector, Male, Board Mount, Solder Terminal, Plug,; CategoryThe connector The connector; File Size408KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AMS22B-40MZ5-B Overview

RF Connector, Male, Board Mount, Solder Terminal, Plug,

AMS22B-40MZ5-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rosenberger
Reach Compliance Code	compliant
Other features	POLARIZED
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRONZE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	9 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.67
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data Sheet

HFM®

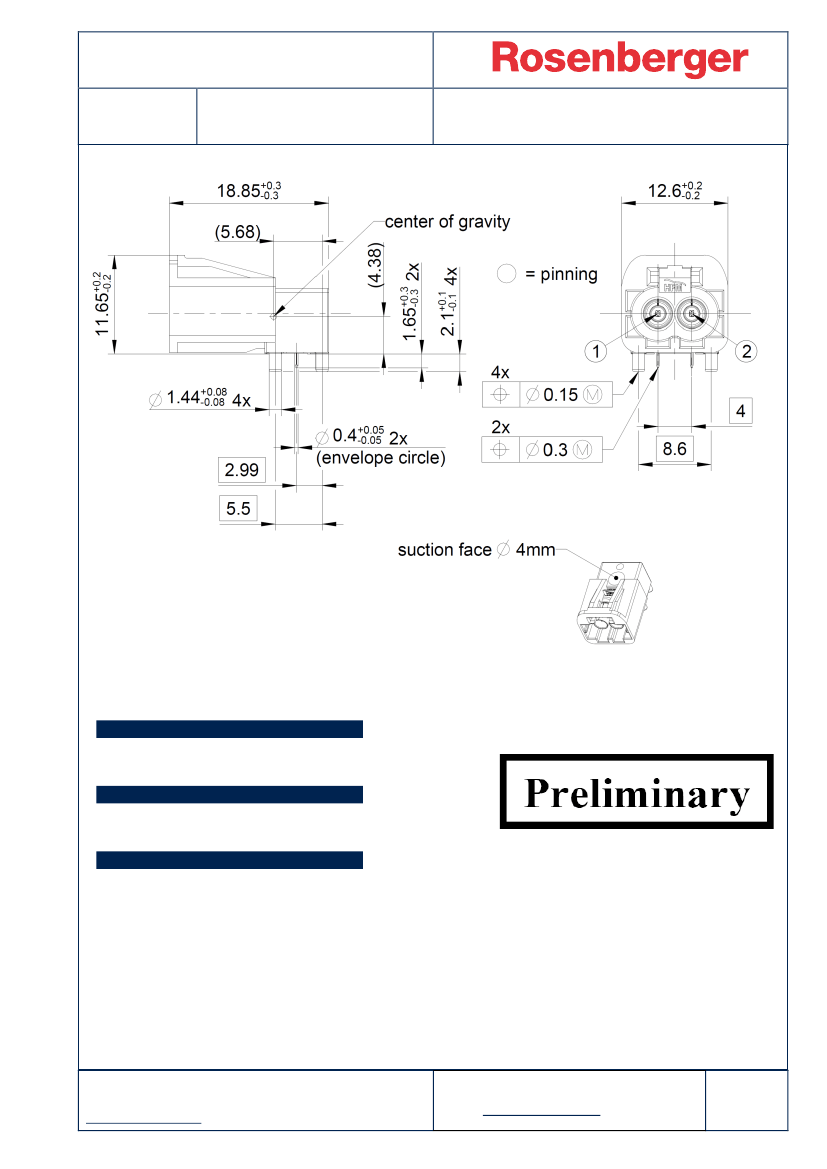

High-Speed FAKRA Mini

RIGHT ANGLE PLUG

PCB w. HOUSING

AMS22B-40MZ5-Y

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; piece part tolerances according to ISO 2768 mH

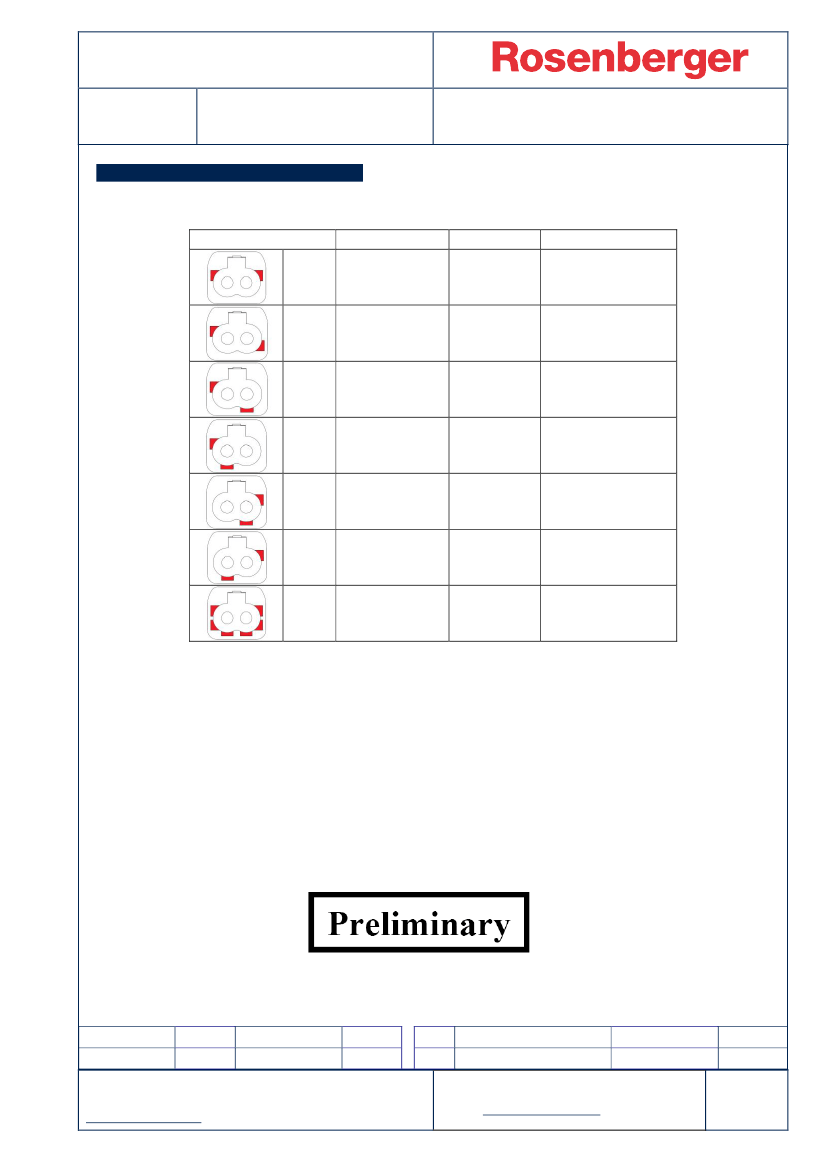

Interface

According to

RN 108-01

Documents

PCB layout

MB_616

Material and plating

Connector parts

Center contact

Outer contact 1 (Interface)

Outer contact 2 (PCB)

Dielectric

Housing

Material

Spring bronze

Zinc alloy

LCP

PA-GF50

Plating

Gold, min. 0.15 µm, over chemical nickel

Tin, 3-6 µm over nickel

Tin, 2-6 µm

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3
