MIL-55310/18-Series Specifications

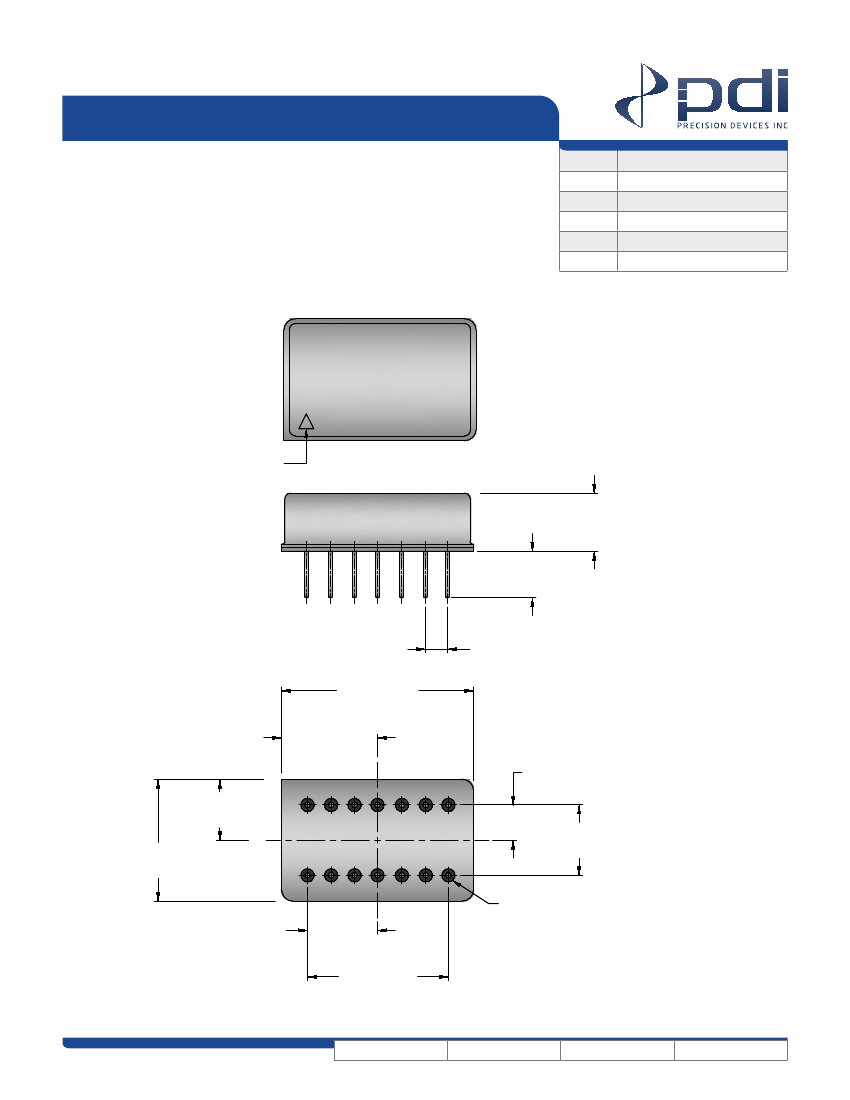

0.887L x 0.540W x 0.200H (in)
PDI
MIL-PRF-55310/18

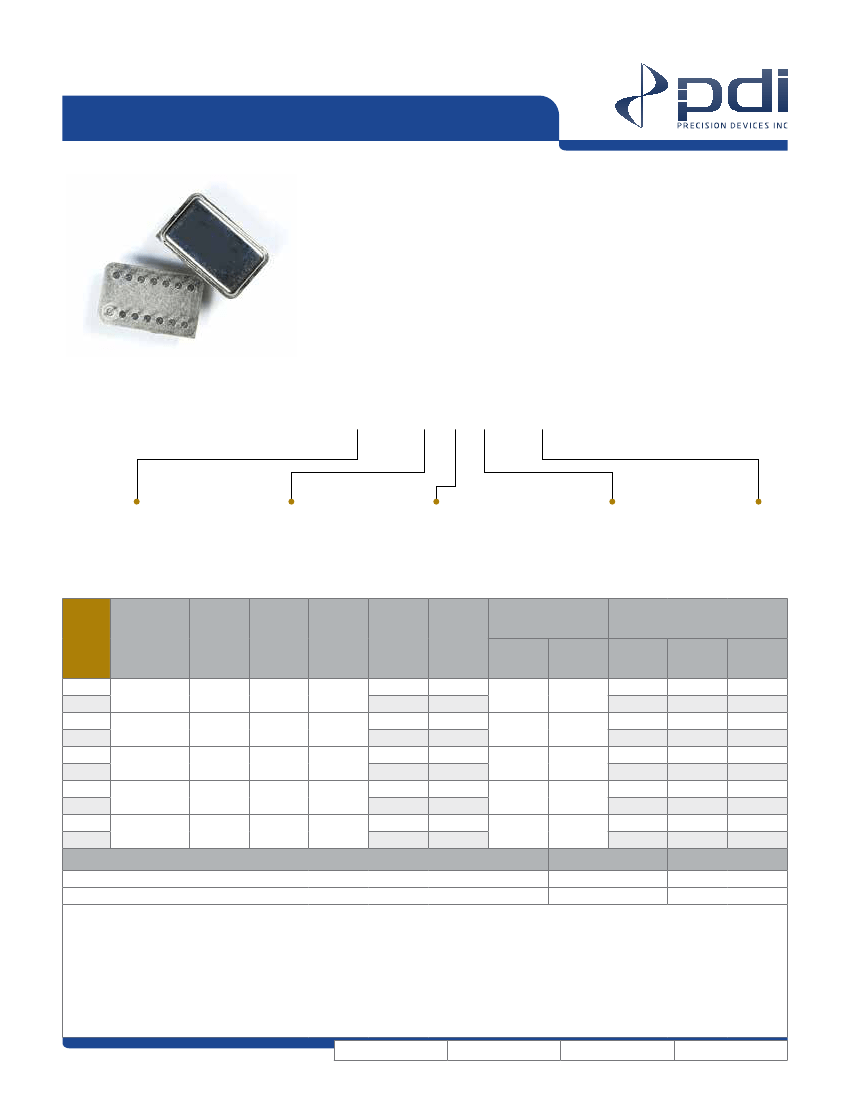

Oscillators are available in both standard and custom
frequencies to provide precision timing in a hermetically sealed package for
military and space applications. PDI provides quick-turn sampling for your
proto-typing needs, mass production capability, and competitive pricing.
ex)
M55310/18—B—22—A—10M00000
MILITARY SLASH SHEET
PRODUCT LEVEL
B
= Hi-Rel
C
= Commercial
S
= Space
DASH NUMBER
See Chart Below
OPERATING TEMPERATURE
A
= -55°C to +125°C
B
= -55°C to +105°C
C
= -20°C to +70°C
XXXXXXXX
Specified
Nominal
Frequency
Dash
No.
Package
01
02
11
12
21
22
31
32
41
42
Frequency
Range
Hz
–
MHz
2.900000 –
15.000000
2.900000 –
12.000000
2.900000 –
10.000000
2.900000 –
8.000000
2.900000 –
5.000000
Supply
Voltage
±10%
+15
+12
+10
+8
+5
Supply
Current
mA Max
25
20
15
10
3
Rise/Fall Tolerance Aging
Times
@ 23°C Per Year
nS Max.
30
35
40
50
70
ppm Max. ppm Max.
±15
±25
±15
±25
±15
±25
±15
±25
±15
±25
±5
±10
±5
±10
±5
±10
±5
±10
±5
±10
Output Voltage
Logic: 1
Vdc Min.
12.8
10.2
8.5
6.8
4.2
Operating Temperature
(A)
±50
±100
±50
±100
±50
±100
±50
±100
±50
±100
(B)
±40
±80
±40
±80
±40
±80
±40
±80
±40
±80
(C)
±25
±50
±25
±50
±25
±50
±25
±50
±25
±50
Logic: 0
Vdc Max.
1.5
1.2
1.0
0.8
0.5
Aging Per Year (Max.)
Per 30 Days
Per 90 Days
NOTES:
All product supplied in anti-static packaging.
At +70°C ± 2.0°C, intervals not more than every 72 hours for a minimum of 30 days.
The product described in this spec. consist of this specification and MIL-PRF-55310.
Decimal
XXX = ± .005, XX = ± .020
Metric
[XXX = ± .13], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/1 3.
REV:
NA
SIZE:
A
5 ppm
±0.7 ppm
±1.5 ppm
10 ppm
±1.5 ppm
±3.0 ppm
CAGE:
A
1
of
3
MIL-55310/18-Series
0.887 x 0.540 x 0.200
(in)
Frequency Range
2.900000 Hz to 15.000000 MHz
Per Chart
Per Chart
Per Chart
±2.0
5 Per Year
10 Per Year
±0.7
±1.5
±1.5
±3.0
Per Chart
Per Chart
-62 to +125
Per Chart
CMOS
Per Chart
Per Chart
°C
Vdc
Vdc
Parameter
vs Temperature (Max.)
-20 to +70°C (Type C)
-55 to +105°C (Type B)
-55 to +125°C (Type A)
vs Supply Voltage (±10% charge) (Max.)
vs Aging (@ +70°C ± 2.0°C) (Max.)
Per 30 Days
Per 90 Days
Tolerance (@ +25°C ± 1.0°C) (Max.)
Within 30 Days of Shipment
Temperature Range
Supply Voltage
Output
Logic Levels
Operating
Storage
±10.0 %
10 kΩ // 15 pF (±5%)
High (Min.)
Low (Max.)
Units
Frequency Stability
ppm
Test Inspection
Internal Visual
Stabization bake (prior to seal) 1/
Thermal Shock
Temperature Cycling
Constant Acceleration
Seal (Fine and Gross Leak) 2/
Particle Impact Noise Detection (PIND)
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Burn-In (Load)
See 4.4.1
Product Level
S
Method Condition
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
MIL-STD-883, method 1011,
Condition A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
MIL-STD-883, method 2020
Condition B
4.8.5
4.8.20
4.8.21
3.1
+125C, nominal supply voltage and
burn-in load, 240 hours minimum
Nominal and extreme supply voltages,
specified load, +23°C and temperature ex-
tremes, record all test parameters
by serial number
4.8.5
4.8.20
4.8.21
3.1
MIL-STD-883, method 2020
REV:
NA
SIZE:
A
Product Level
B
&
C
Method Condition
See 4.4.1
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
N/A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
N/A
N/A
N/A
N/A
3.1
+125C, nominal supply voltage and
burn-in load, 160 hours minimum
Nominal supply voltages, specified
load, +23°C and verify frequency
at the temperature extremes
4.8.5
4.8.20
4.8.21
3.1
N/A
CAGE:
A
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Radiographic 3/
