PHB2N60T/R datasheet, PDF - EEWORLD Datasheet

PHB2N60T/R: DescriptionTRANSISTOR 2.8 A, 600 V, 4.4 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size179KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

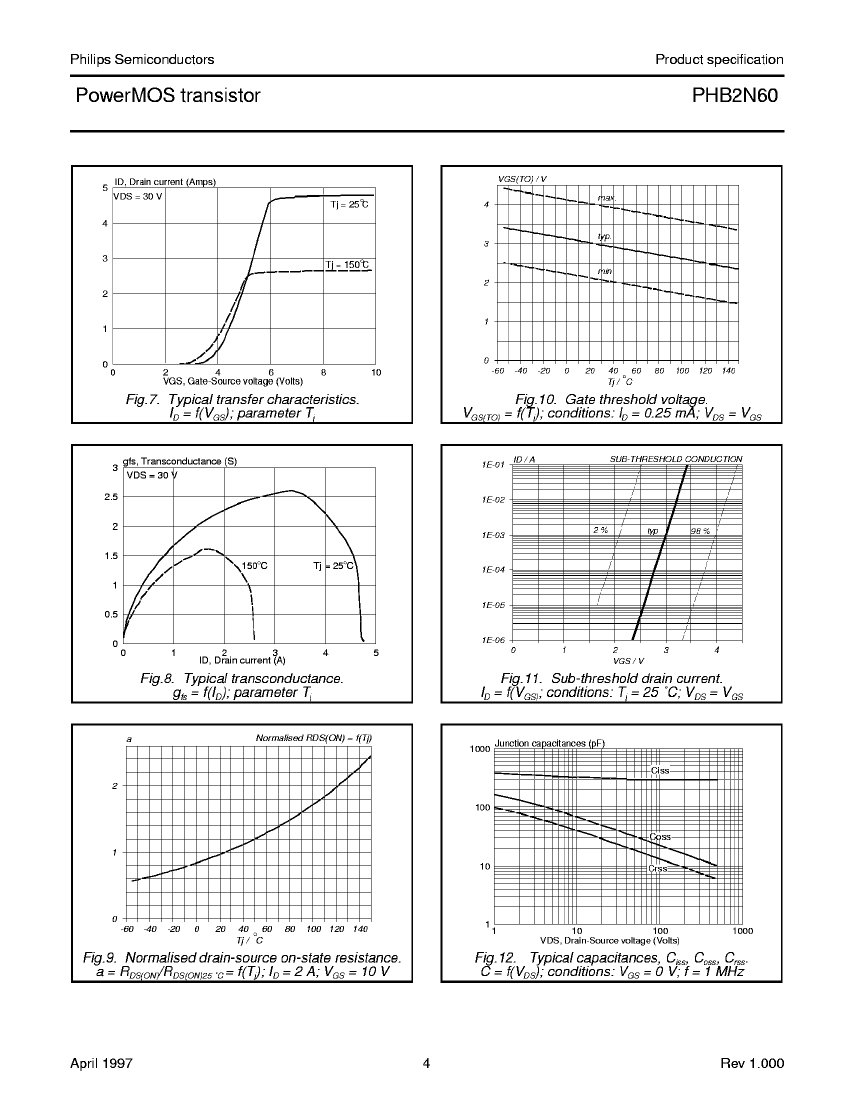

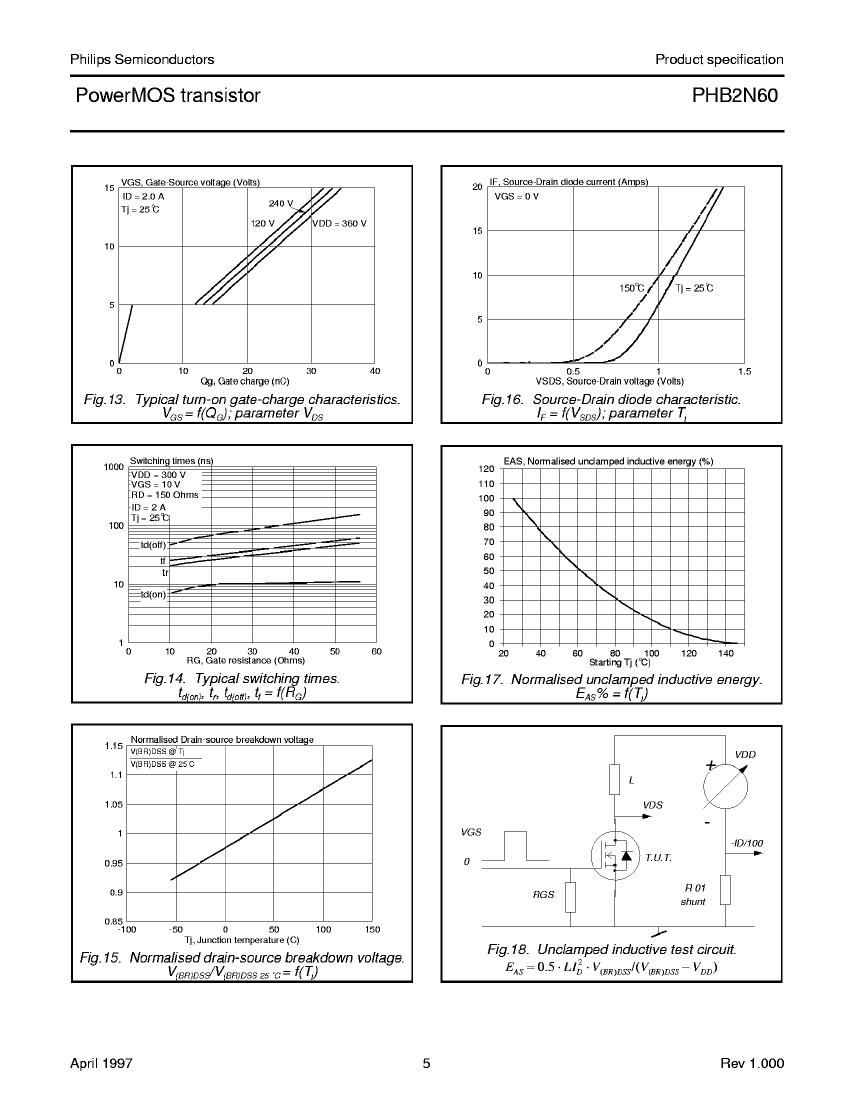

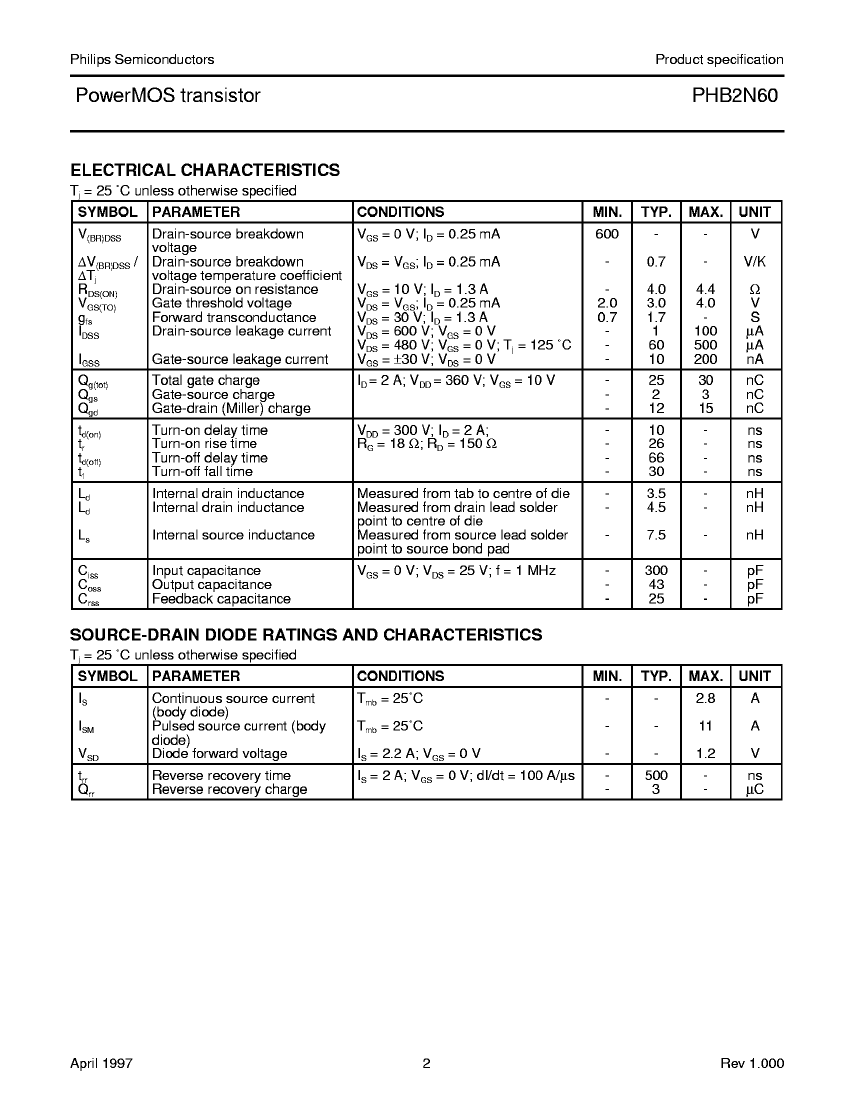

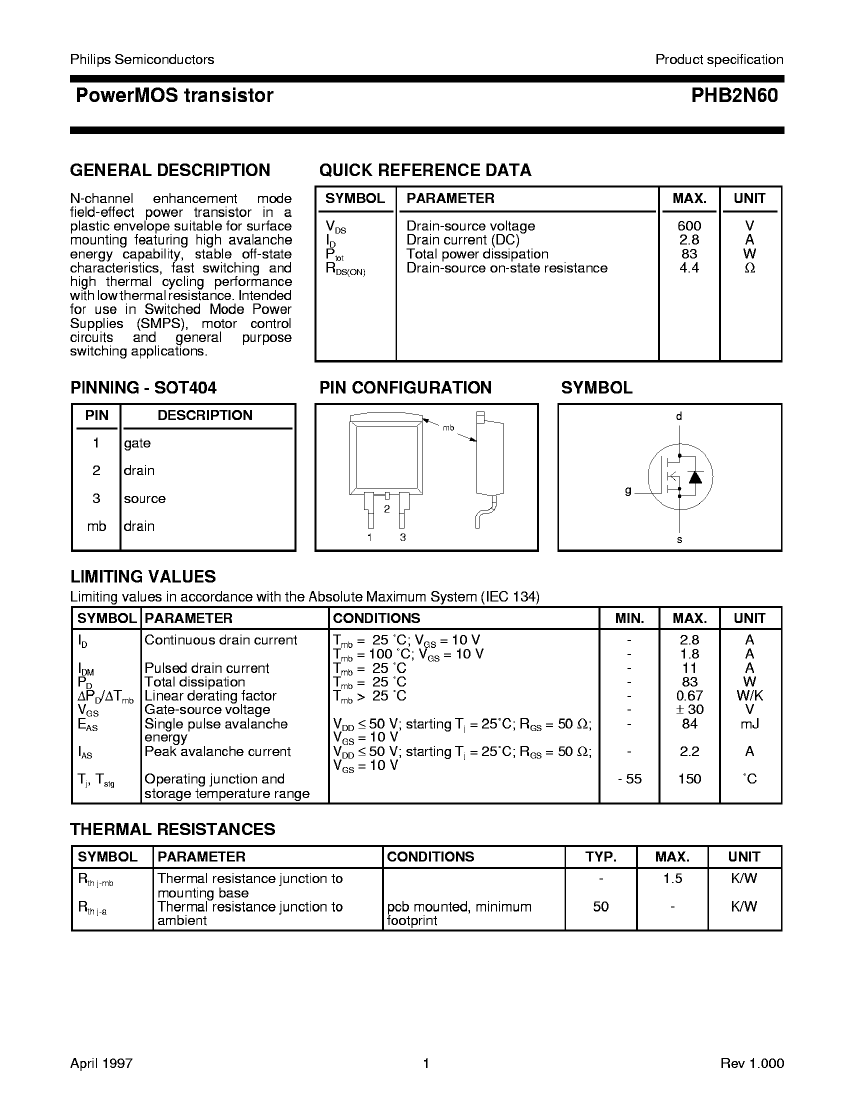

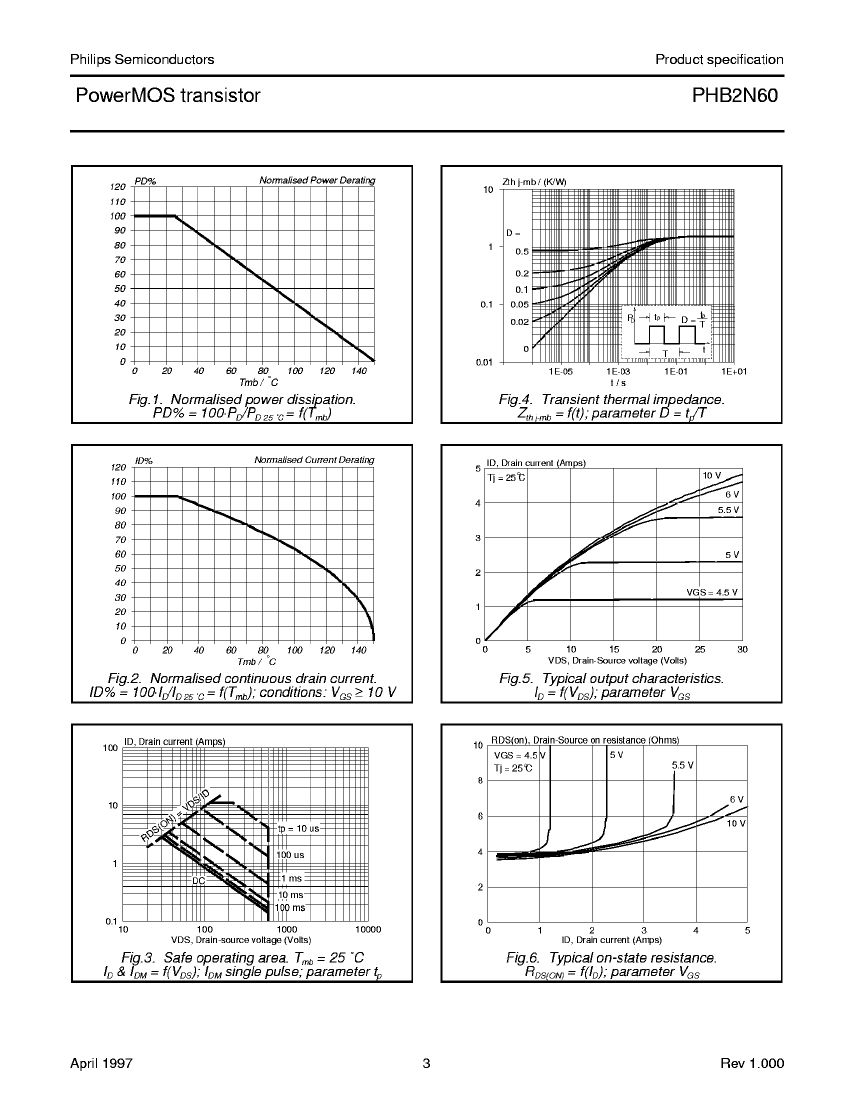

PHB2N60T/R Overview

TRANSISTOR 2.8 A, 600 V, 4.4 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	compliant
Avalanche Energy Efficiency Rating (Eas)	84 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V
Maximum drain current (Abs) (ID)	2.8 A
Maximum drain current (ID)	2.8 A
Maximum drain-source on-resistance	4.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	83 W
Maximum pulsed drain current (IDM)	11 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	PHB2N60T/R	PHB2N60
Description	TRANSISTOR 2.8 A, 600 V, 4.4 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power	TRANSISTOR 2.8 A, 600 V, 4.4 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power
Maker	NXP	NXP
Reach Compliance Code	compliant	unknown
Avalanche Energy Efficiency Rating (Eas)	84 mJ	84 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	600 V	600 V
Maximum drain current (ID)	2.8 A	2.8 A
Maximum drain-source on-resistance	4.4 Ω	4.4 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2	R-PSSO-G2
Number of components	1	1
Number of terminals	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	11 A	11 A
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
