5569-22A7MS-130-T datasheet, PDF

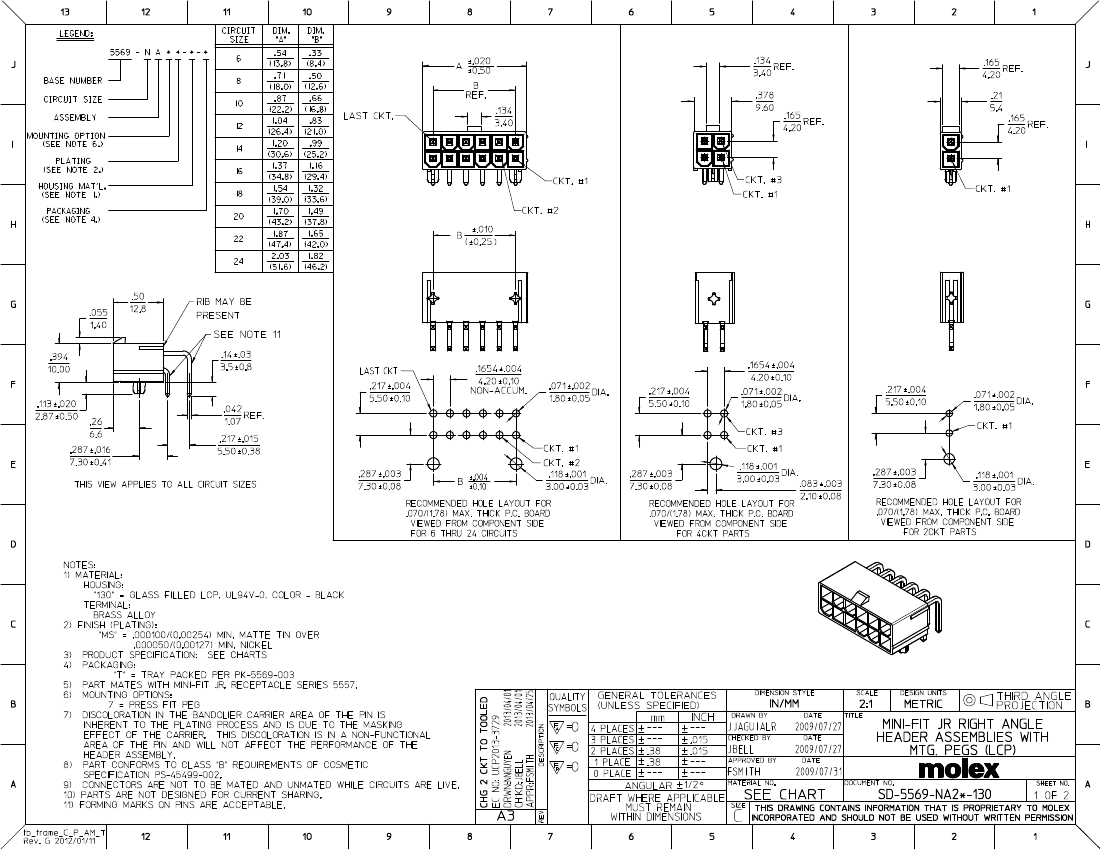

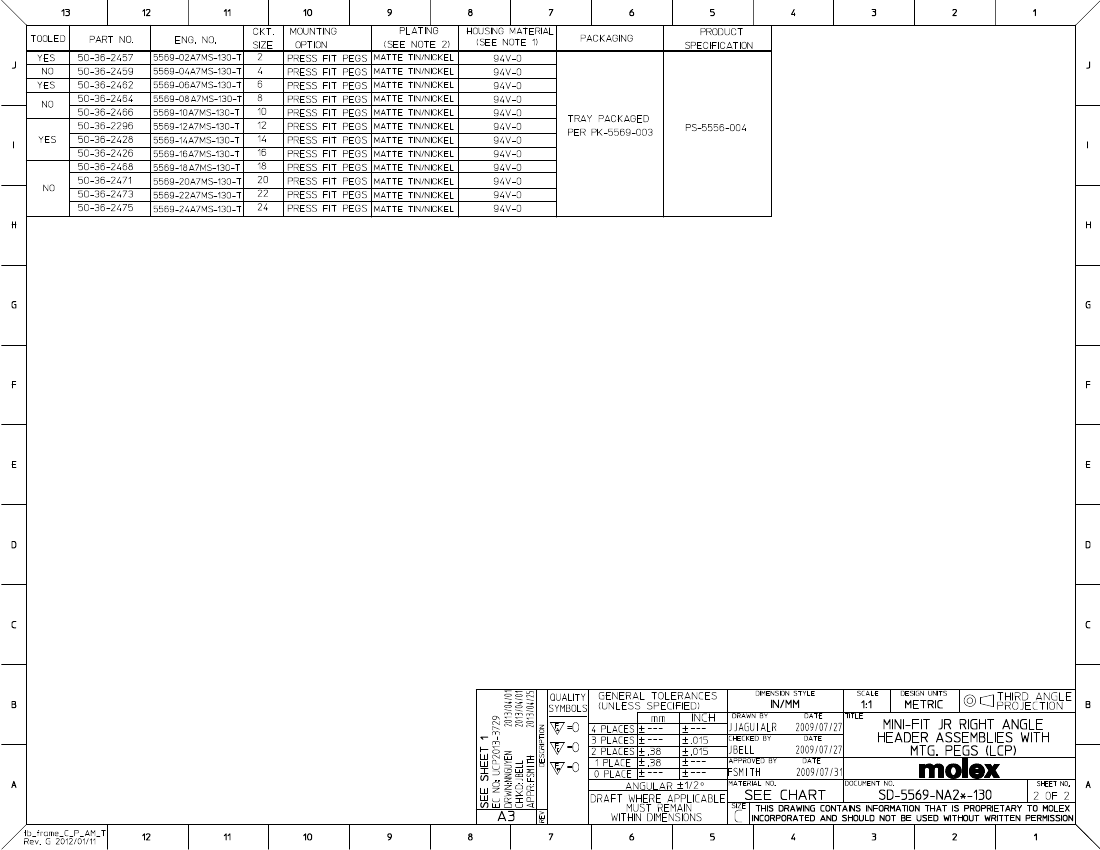

5569-22A7MS-130-T: DescriptionBoard Connector, 22 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size203KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5569-22A7MS-130-T Overview

Board Connector, 22 Contact(s), Male, Solder Terminal,

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (254) OVER NICKEL (127)
Contact completed and terminated	MATTE TIN (254) OVER NICKEL (127)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5569
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	4.2 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

	5569-22A7MS-130-T	5569-02A7MS-130-T
Description	Board Connector, 22 Contact(s), Male, Solder Terminal,	Board Connector, 2 Contact(s), Male, Solder Terminal,
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (254) OVER NICKEL (127)	MATTE TIN (254) OVER NICKEL (127)
Contact completed and terminated	MATTE TIN (254) OVER NICKEL (127)	MATTE TIN (254) OVER NICKEL (127)
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	5569	5569
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER
Total number of contacts	22	2
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
