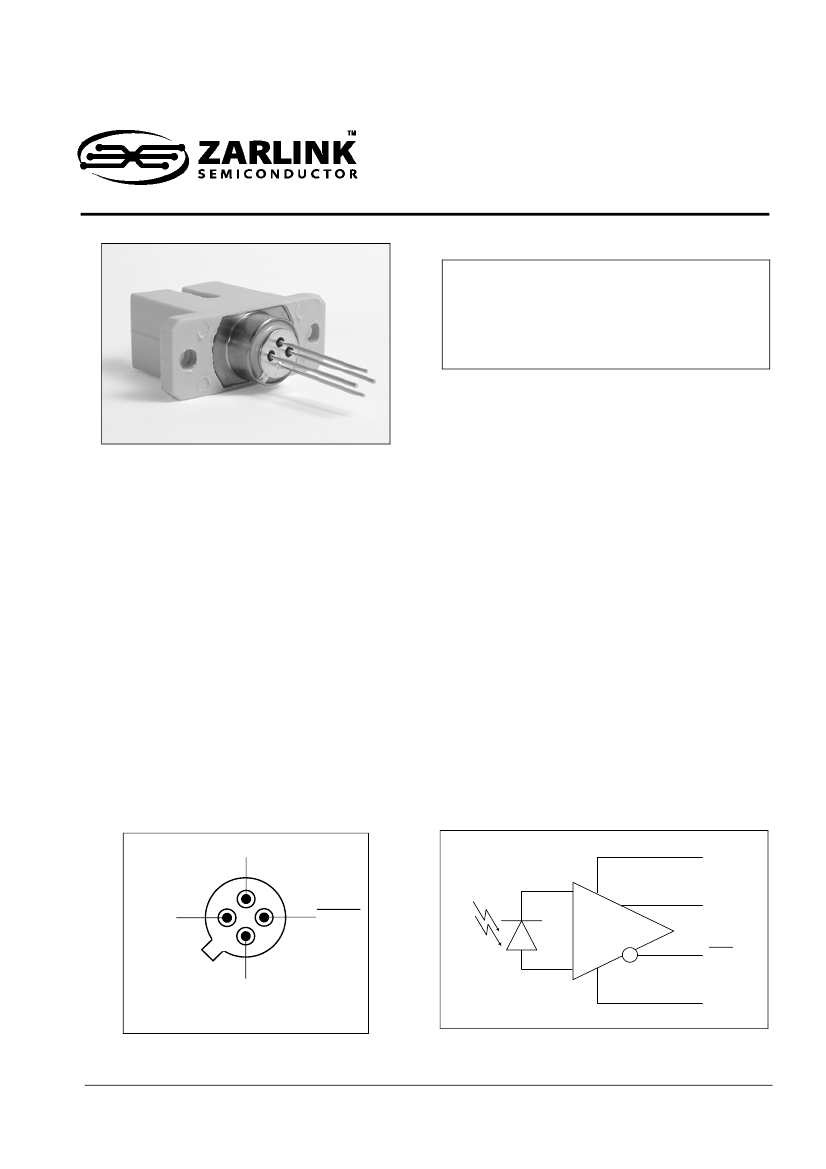

ZL60013
1310 nm, 1550 nm 1.5 Gbps PIN
Preamplifier for SDI HDTV
Data Sheet
December 2003
Ordering Information
ZL60013TED,
TO-46 with lens in SC-housing
-40°C to +85°C
Description
This optical receiver is designed for SDI (Serial Digital
Interface) HDTV (high definition television) optical fiber
transmission systems. The product follows the
ANSI/SMPTE 292 M standard and is capable of
handling DC-unbalanced (pathological) signals.
The receiver operates at 3.3 V and contains an InGaAs
PIN photodiode and a transimpedance amplifier with
AGC (Automatic Gain Control ), assembled in a TO-46
package. Its double-lens optical system is designed for
use with single-mode fiber as well as multi-mode fiber
with a core diameter up to 62.5
µm.
Reliability
assurance is based on Telecordia GR-468-CORE. The
product is supplied in SC-housing as standard as
defined by ANSI/SMPTE 292 M standard.
Features
•
•
•
•
•
•
•
•
Data rate up to 1.5 Gbps
1310 nm, 1550 nm PIN
TIA with AGC
Handles DC-unbalanced signals
Wide dynamic range
TO-46 assembly
3.3 V power supply
SMF and MMF
Applications
•
ANSI/SMPTE 292M
V
CC
V
CC
Data Out
Data Out
Data
Data
Data
Data
Case
GND
Bottom View
GND
Figure 1 - Pin Diagram
Figure 2 - Functional Schematic
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003, Zarlink Semiconductor Inc. All Rights Reserved.
ZL60013
Optical and Electrical Characteristics
Parameter
Responsivity, differential
Output Voltage amplitude
differential
Data rate
Optical Saturation Level (average)
Noise-Equivalent Power
Sensitivity (BER10
-9
)
Sensitivity (BER10
-9
)
Dynamic Range
Output Resistance (single-ended)
Power Supply Current
Power Dissipation
R
O
I
DD
Symbol
R
∆V
O
f
R
P
sat
NEP
S
OMA
S
-2
-36
5
-26
24
50
34
47
169
10
-23
Min.
4
Typ.
8
400
1.5
Max.
12
Unit
kV/W
mV,
p-p
Gbps
dBm
dBm
µW
dBm
dB
Ω
mA
mW
Data Sheet
Test condition
λ
= 1310 nm
R
L
= 100
Ω,
Note 1
R
L
= 100
Ω
Note 2
R
L
= 100
Ω
λ
= 1310 nm,
ER =
∞
Note 5
λ
= 1310 nm
λ
= 1310 nm,
Note 3 and 4
λ
= 1310 nm,
ER =
∞
Note 5
Test conditions:
25°C Case Temperature/3.3 V Supply Voltage. Fiber: Single-mode to multi-mode 62.5/125
µm
Note
Note
Note
Note
Note
1:
2:
3:
4:
5:
Pf = 2
µW
Peak-Peak power at 10 MHz/50% duty cycle.
Pf = 500
µW
Peak-Peak power at 10 MHz/50% duty cycle.
Measured using DC-unbalanced patterns with 5% and 95% duty cycles, respectively at 1.48 Gbps.
An OMA value has been quoted as this is more meaningful for DC unbalanced signals.
Measured with a DC balanced signal with a 2
23
-1 PRBS at 1.48 Gbps.
Absolute Maximum Ratings
Parameter
Supply Voltage
Storage Temperature
Symbol
V
CC
T
stg
Min.
0
-55
Max.
6
125
Unit
V
°C
Recommended Operating Conditions
Parameter
Supply Voltage
Output Differential Load
Operating Temperature
Symbol
V
CC
R
L
T
op
-40
Min.
3.0
100
85
Typ.
Max
5.5
Unit
V
Ω
°C
2
Zarlink Semiconductor Inc.
ZL60013
Typical Responsivity
Fiber Core/Cladding Diameter Numerical Aperture
Wavelength
Differential responsivity
Differential responsivity
1310 nm
1550 nm
10/125
NA = 0.11
8 kV/W
9.5 kV/W
50/125
NA = 0.20
8 kV/W
9.5 kV/W
Data Sheet
62.5/125
NA = 0.275
8 kV/W
9.5 kV/W
Figure 3 - Typical Responsivity vs Axial
Displacement for a Multi-mode Fiber
Figure 5 - Typical Responsivity vs. Radial
Displacement for a Multi-mode Fiber
Figure 4 - Responsivity vs. Wavelength of
Coupled Input Power
3
Zarlink Semiconductor Inc.
ZL60013
Application Guidelines
ESD Handling
Data Sheet
The receiver is sensitive to electrostatic discharges. When handling the device, precaution for ESD sensitive
devices should be taken. These precautions include use of ESD protected work area with wrist straps, controlled
work benches, floors etc.
Power Supply Filter
Power Supply decoupling capacitors are recommended for optimal performance of the receiver. A filter is
recommended to minimize power supply noise. See Figure 6.
Host
V
CC
L
10µ H
C
0.1µ F
C
10nF
PIN /
Preamp
Figure 6 - Recommended Power Supply Filter
4
Zarlink Semiconductor Inc.

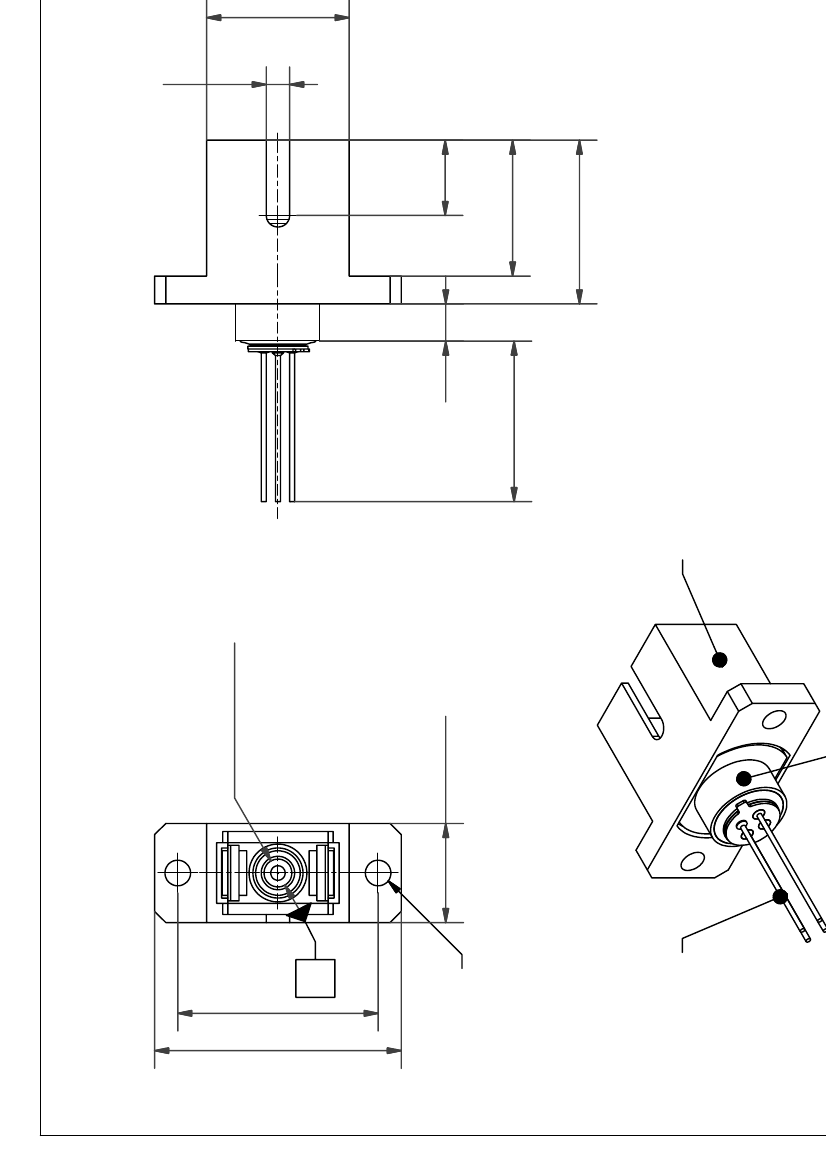

FRONT VIEW ( 2 : 1 )
n
2,502 + 0,008
-
SIDE VIEW
2,1
0
18
22,15
`
0,1
A
8,9
`
0,1
3,4
14
`
1
6,75
12,2
`
0,1
14,7
n
2,3 THRU (2x)
Component *
Connector housing (PA66, 13% Glass fibre)
12,8
`
0,1
