ZL60105/6
12 x 1.6 Gbps Parallel Fiber Optic Link
Transmitter and Receiver
Data Sheet
July 2004
Ordering Information
ZL60105/MJD Parallel Fiber Transmitter
ZL60106/MJD Parallel Fiber Receiver
Heat sink and EMI shield options
are available upon request
0°C to +80°C
Features
•
•
•
•
•
•
•
•
•
•
•
•
12 parallel channels, total 19.2 Gbps capacity
Data rate up to 1.6 Gbps per channel
850 nm VCSEL array
Data I/O is CML compatible with DC blocking
capacitors
Link reach up to 1000 m
Channel BER better than 10
-12
Industry standard MPO/MTP ribbon fiber
connector interface
Pluggable MegArray
®
ball grid array connector
Optionally available with EMI shield and external
heat sink
Laser class 1M IEC 60825-1:2001 compliant
Power supply 3.3 V
Compatible with industry MSA
Description
The ZL60105 and ZL60106 together make a very high
speed transmitter/receiver pair for parallel fiber
applications.
The ZL60105 transmitter module converts parallel
electrical input signals via a laser driver and a VCSEL
array into parallel optical output signals at a wavelength
of 850 nm.
The ZL60106 receiver module converts parallel optical
input signals via a PIN photodiode array and a
transimpedance and limiting amplifier into electrical
output signals.
The modules are pluggable each fitted with an industry-
standard MegArray
®
BGA connector. This provides
ease of assembly on the host board and enables
provisioning of bandwidth on demand.
Applications
•
•
•
•
•
High-speed interconnects within and between
switches, routers and transport equipment
Proprietary backplanes
Low cost SONET/SDH VSR (Very Short Reach)
OC-192/STM64 connections
InfiniBand
®
connections
Interconnects rack-to-rack, shelf-to-shelf, board-
to-board, board-to-optical backplane
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003-4, Zarlink Semiconductor Inc. All Rights Reserved.
ZL60105/6
Table of Contents
Data Sheet
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ZL60105 Transmitter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Control and Status Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Transmitter Control and Status Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Transmitter Pinout Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Transmitter Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ZL60106 Receiver Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Receiver Control and Status Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Receiver Control and Status Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Receiver Pinout Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Receiver Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Eye safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electrostatic discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electrostatic discharge immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electromagnetic interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Handling instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning the optical interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ESD handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Link Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Link Model Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electrical Interface - Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2
Zarlink Semiconductor Inc.
ZL60105/6
Absolute Maximum Ratings
Data Sheet
Not necessarily applied together. Exceeding these values may cause permanent damage. Functional operation
under these conditions is not implied.
Parameter
Supply voltage
Differential input voltage amplitude
1
Voltage on any pin
Relative humidity (non-condensing)
Storage temperature
ESD resistance
1. Differential input voltage amplitude is defined as
∆V
=
DIN+ −
DIN-.
Symbol
V
CC
∆V
V
PIN
M
OS
T
STG
V
ESD
Min.
-0.3
Max.
4.0
1.2
Unit
V
V
V
%
°C
kV
-0.3
5
-40
V
CC
+ 0.3
95
100
±1
Recommended Operating Conditions
These parameters apply both to the transmitter and the receiver.
Parameter
Power supply voltage
Operating case temperature
Signaling rate (per channel)
1
Link distance
2
Data I/O DC blocking capacitors
3
Power supply noise
4
Symbol
V
CC
T
CASE
f
D
LD
C
BLK
V
NPS
Min.
3.135
0
0.5
2
100
200
Max.
3.465
80
1.6
Unit
V
°C
Gbps
m
nF
mV
p-p
1. Data patterns are to have maximum run lengths and DC balance shifts no worse than that of a Pseudo Random Bit Sequence of
length 2
23
-1 (PRBS-23). Information on lower bit rates is available on request.
2. For maximum distance, see Table 6.
3. For AC-coupling, DC blocking capacitors external to the module with a minimum value of 100 nF is recommended.
4. Power supply noise is defined at the supply side of the recommended filter for all V
CC
supplies over the frequency range of 500 Hz
to 1600 MHz with the recommended power supply filter in place.
L1 1
µH
L2 6.8 nH
Host
Vcc
C1
10
µF
R1 100
Ω
R2 1.0 kΩ
Module
Vcc
C2
10
µF
C3
0.1
µF
C4
0.1
µF
Figure 1 - Recommended Power Supply Filter
3
Zarlink Semiconductor Inc.
ZL60105/6
ZL60105 Transmitter Specifications
Data Sheet
All parameters below require operating conditions according to “Recommended Operating Conditions” on page 3.
Parameter
Optical Parameters
Launch power (50/125
µm
MMF)
1
Extinguished output power
Extinction ratio
2
Optical modulation amplitude
3
Center wavelength
Spectral width
4
Relative intensity noise OMA
Optical output rise time (20 - 80%)
Optical output fall time (20 - 80%)
Total jitter contributed (peak to peak)
5
Deterministic jitter contributed (peak to peak)
Channel to channel skew
6
Electrical Parameters
Power dissipation
Supply current
Differential input voltage amplitude (peak to peak)
7
Differential input impedance
8
Electrical input rise time (20 - 80%)
Electrical input fall time (20 - 80%)
P
D
I
CC
∆V
IN
Z
IN
t
RE
t
FE
200
80
1.5
450
800
120
270
270
W
mA
mV
p-p
Ω
ps
ps
P
OUT
P
OFF
ER
OMA
λ
C
∆λ
RIN
12
OMA
t
RO
t
FO
TJ
DJ
t
SK
7
0.21
830
860
0.85
-116
255
255
200
85
150
-8
-2
-30
dBm
dBm
dB
mW
nm
nm
rms
dB/Hz
ps
ps
ps
ps
ps
Symbol
Min.
Max.
Unit
1. The output optical power is compliant with IEC 60825-1 Amendment 2, Class 1M Accessible Emission Limits.
2. The extinction ratio is measured at 622 Mbps.
3. Informative. Corresponds to P
OUT
= -8 dBm and ER = 7 dB.
4. Spectral width is measured as defined in EIA/TIA-455-127
Spectral Characterization of Multimode Laser Diodes.
5. Total jitter equals TP1 to TP2 as defined in IEEE 802.3 clauses 38.2 and 38.6 (Gigabit Ethernet).
6. Channel skew is defined for the condition of equal amplitude, zero ps skew signals applied to the transmitter inputs.
7. Differential input voltage is defined as the peak to peak value of the differential voltage between DIN+ and DIN-. Data inputs are
CML compatible.
8. Differential input impedance is measured between DIN+ and DIN-.
4
Zarlink Semiconductor Inc.
ZL60105/6
Data Sheet
Classified in accordance with IEC 60825-1/A2:2001, IEC 60825-2 : 2000
Class 1M Laser Product
Emited wavelength: 840 nm
DIN0+
DIN0-
VCSEL
Driver
DIN11+
DIN11-
VCSEL
Array
0
1
2
3
4
5
6
7
8
9
10
11
VCSEL Driver Controller
V
CC
V
EE
RESET Tx_DIS Tx_EN
FAULT

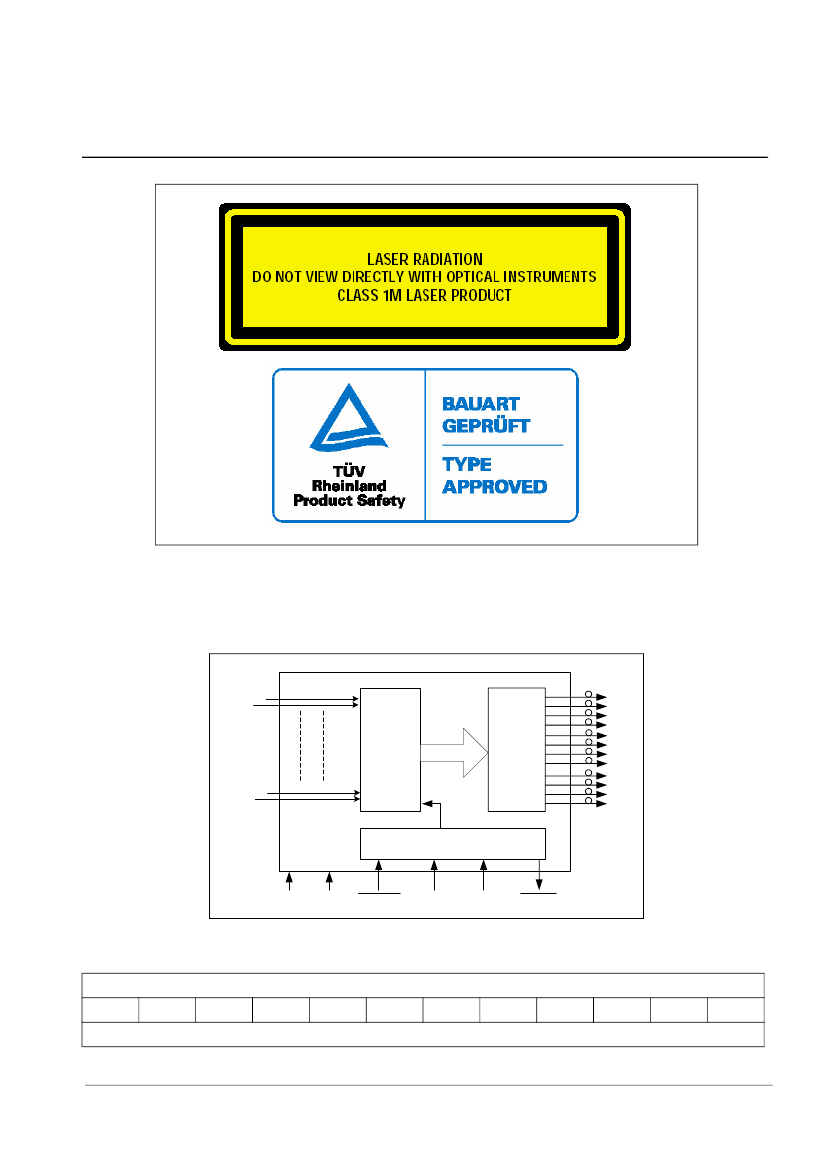

Figure 2 - ZL60105 Transmitter Block Diagram
Front view - MTP key up
Ch 11
Ch 10
Ch 9
Ch 8
Ch 7
Ch 6
Ch 5
Ch 4
Ch 3
Ch 2
Ch 1
Ch 0
Host circuit board
Table 1 - Transmitter Optical Channel Assignment
5
Zarlink Semiconductor Inc.
