1-1761608-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1761608-3

1-1761608-3: DescriptionIDC LOW PRO HDR 40P VERT SHT L; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1761608-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1761608-3	-	-	View	Buy Now

1-1761608-3 Overview

IDC LOW PRO HDR 40P VERT SHT L

1-1761608-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Samacsys Confidence
Samacsys Status	Released
Samacsys PartID	354851
Samacsys Pin Count	40
Samacsys Part Category	Undefined or Miscellaneous
Samacsys Package Category	Other
Samacsys Footprint Name	TYCO_1-1761608-3
Samacsys Released Date	2017-01-12 10:08:23
Is Samacsys	N
Other features	LOW PROFILE, MILITARY, CENTER POLARIZED
body width	0.362 inch
subject depth	0.404 inch
body length	2.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL (30)/GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1761608
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	DUAL POLARIZED
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

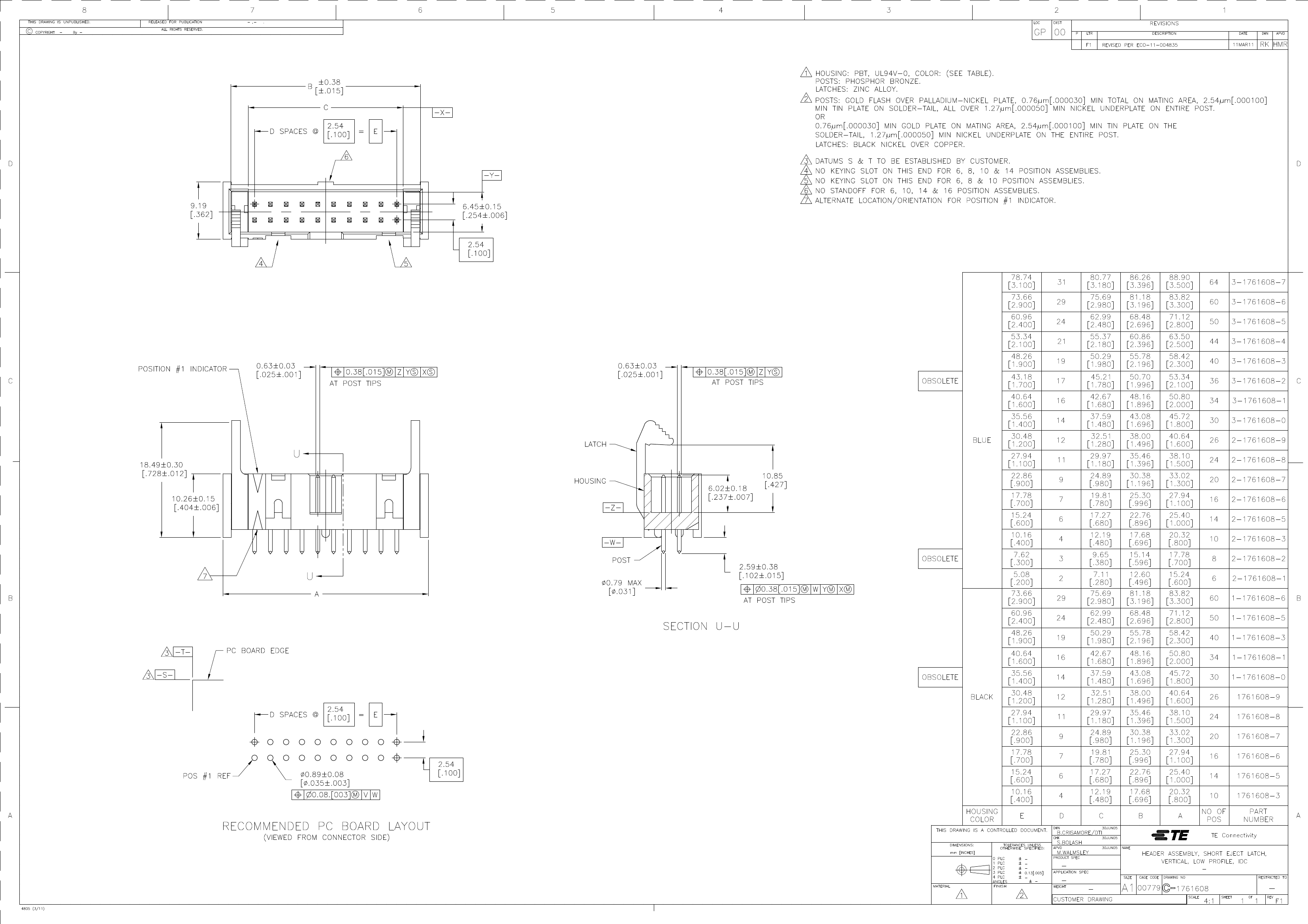

Preview

Download Datasheet

View All
