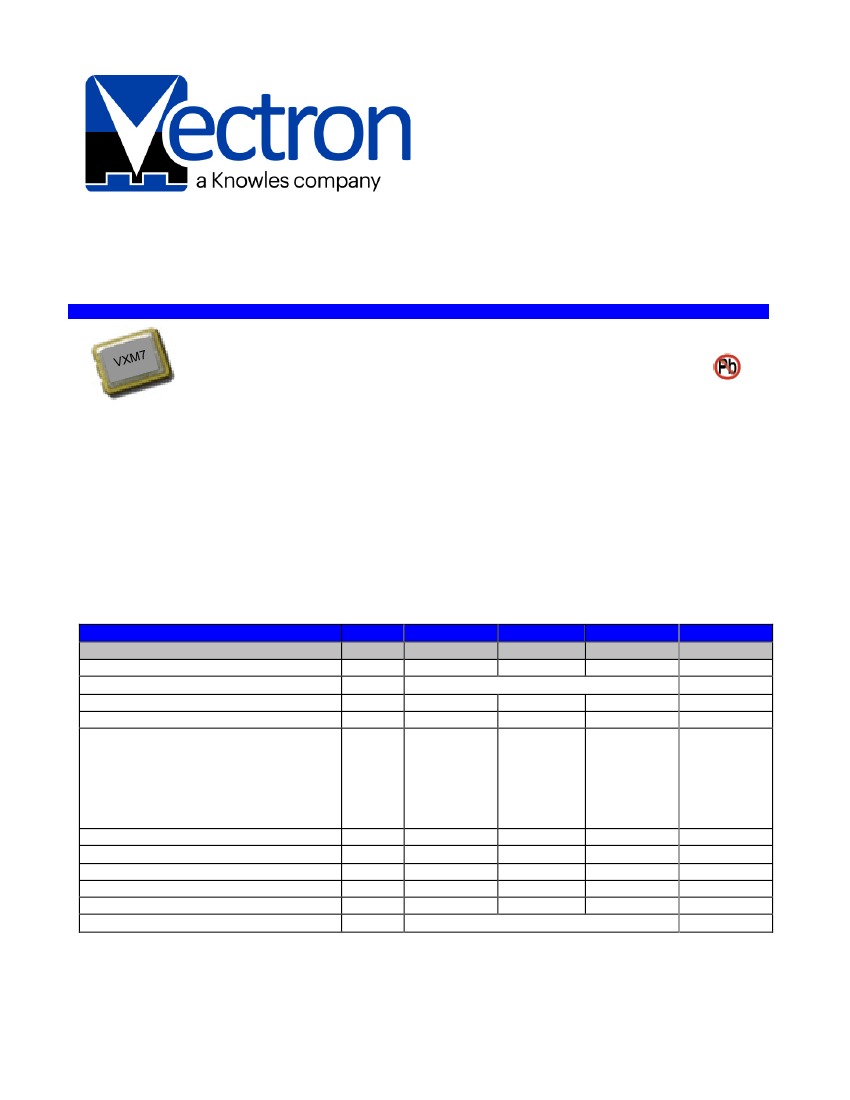

Data Sheet
VXM7
Microprocessor Crystals
Product is compliant to RoHS directive
and fully compatible with lead free assembly
Features
Small Ceramic SMD Package
Low Profile
Tape & Reel
Tight Tolerance and Stability
Applications
OA
AV Machine
Bluetooth
Wireless LAN
Electrical Performance
Parameter
Frequency (Fundamental – AT-cut)
Frequency Stability (ordering
option)
Load Capacitance (ordering
option)
Standard Calibration Tolerance
Equivalent Series Resistance
12.00 to 12.99 MHz
13.00 to 13.99 MHz
14.00 to 18.99 MHz
19.00 to 29.99 MHz
30.00 to 50.00 MHz
Shunt Capacitance
Drive Level
Aging
Storage Temperature
Insulation Resistance
Package Size
Symbol
f
O
f
stab
C
L
f
initial
ESR
Min
12
Maximum
50
See ordering options
10
32
-10
10
200
150
100
80
60
Typical
Units
MHz
ppm
pF
ppm
Ohms
Ohms
Ohms
Ohms
Ohms
pF
uW
ppm/year
°
C
MOhms
mm
C
O
DL
T
storage
IR
-40
500
10
5.0
100
5
90
3.2 x 2.5 x 0.6
Page1/4
Revision: March18, 2014
VXM7 Datasheet

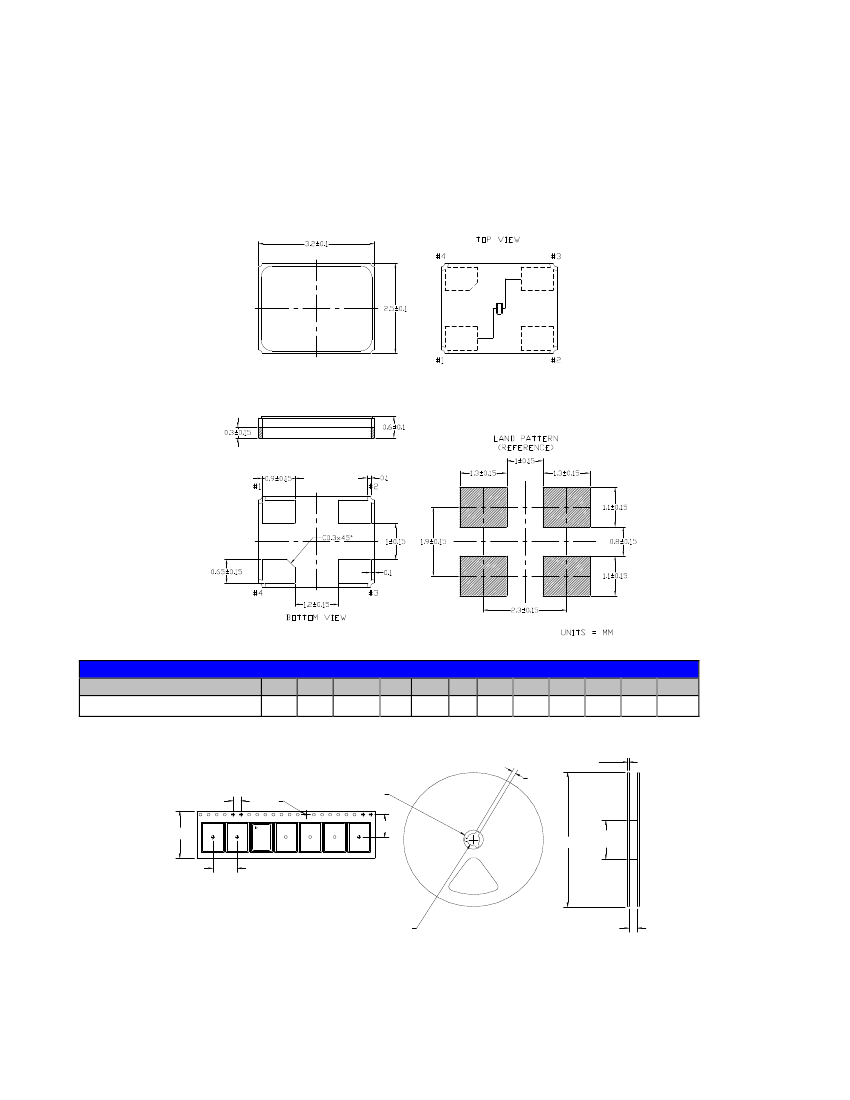

Package Drawing
Tape and Reel Dimensions (mm)
Package
A
VXM7
8.0
B
3.5
C
D
Φ
1.5 4.0
E
F
4.0 2.5
G
11
H
I
J
K
L
Φ
13 60.2 1.75 8.0 178.0
J
F
D
A
E
C
G
B
L
I
H
K
Page2/4
Revision: March 18, 2014
VXM7 Datasheet
Suggested IR profile
The VXM7 are qualified to meet the JEDEC standard for Pb-Free assembly. The temperatures and time
intervals listed are based on the Pb-Free small body requirements and parameters are listed in the table below
The VXM7 are hermetically sealed so an aqueous wash is not an issue.
Reflow Profile (IPC/JEDEC J-STD-020)
Parameter
PreHeat Time
Ramp Up
Time Above 217 C
Time To Peak Temperature
o
Time At 260 C
Ramp Down
o
Symbol
t
S
R
UP
t
L
t
AMB-P
t
P
R
DN
Value
60 sec Min, 180 sec Max
o
3 C/sec Max
60 sec Min, 150 sec Max
480 sec Max
20 sec Max
o
6 C/sec Max
t
L
260
R
UP
t
P
Temperature (DegC)
217
200
R
DN
150
t
S
t
AMB-P
25
Time (sec)
Page3/4
Revision: March 18, 2014
VXM7 Datasheet

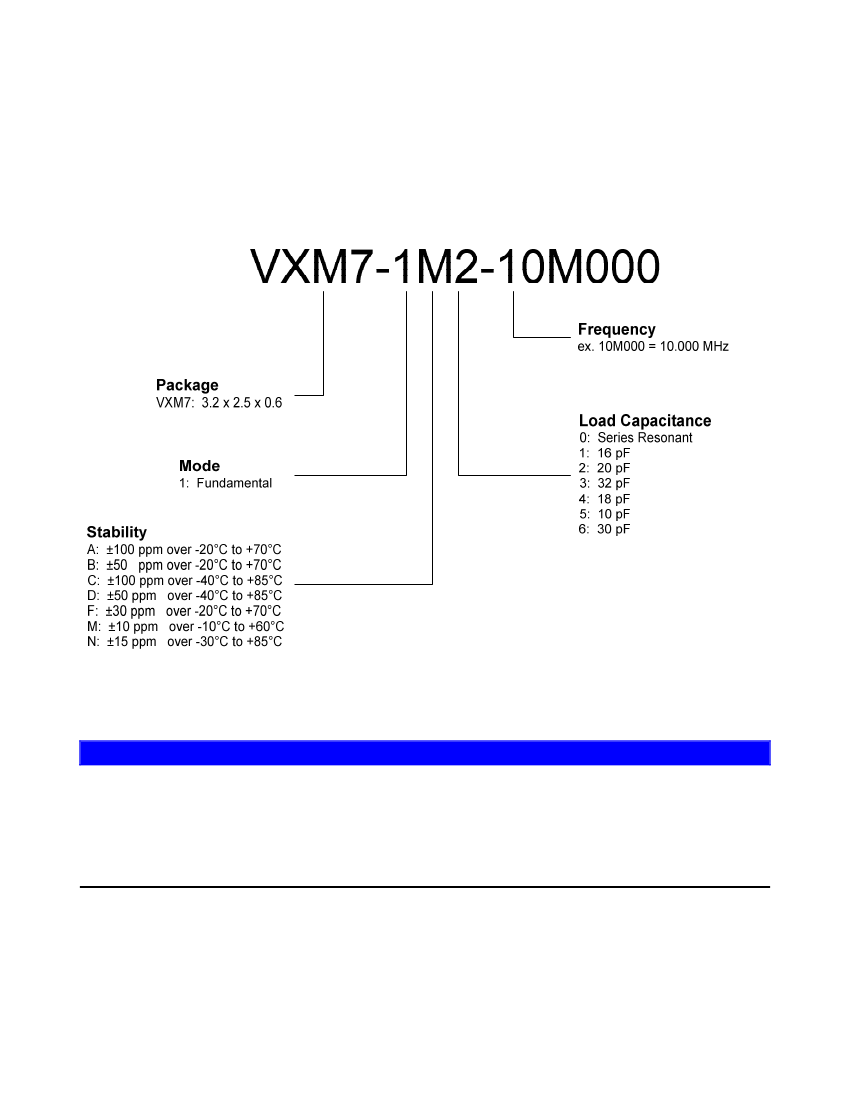

Ordering Information
Not all combinations are possible
For Additional Information, Please Contact:
USA:
267 Lowell Rd, Hudson, NH 03051 . . . . . . .
Tel: 1-888-328-7661
Fax: 1-888-329-8328
Fax: 49 (0) 3328-4784-30
Fax: 86-21-6194-6699
EUROPE:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tel: 49 (0) 3328-4784-17
ASIA:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tel: 86-21-6194-6886
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice.
No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or
information
.
Page4/4
Revision: March 18, 2014
