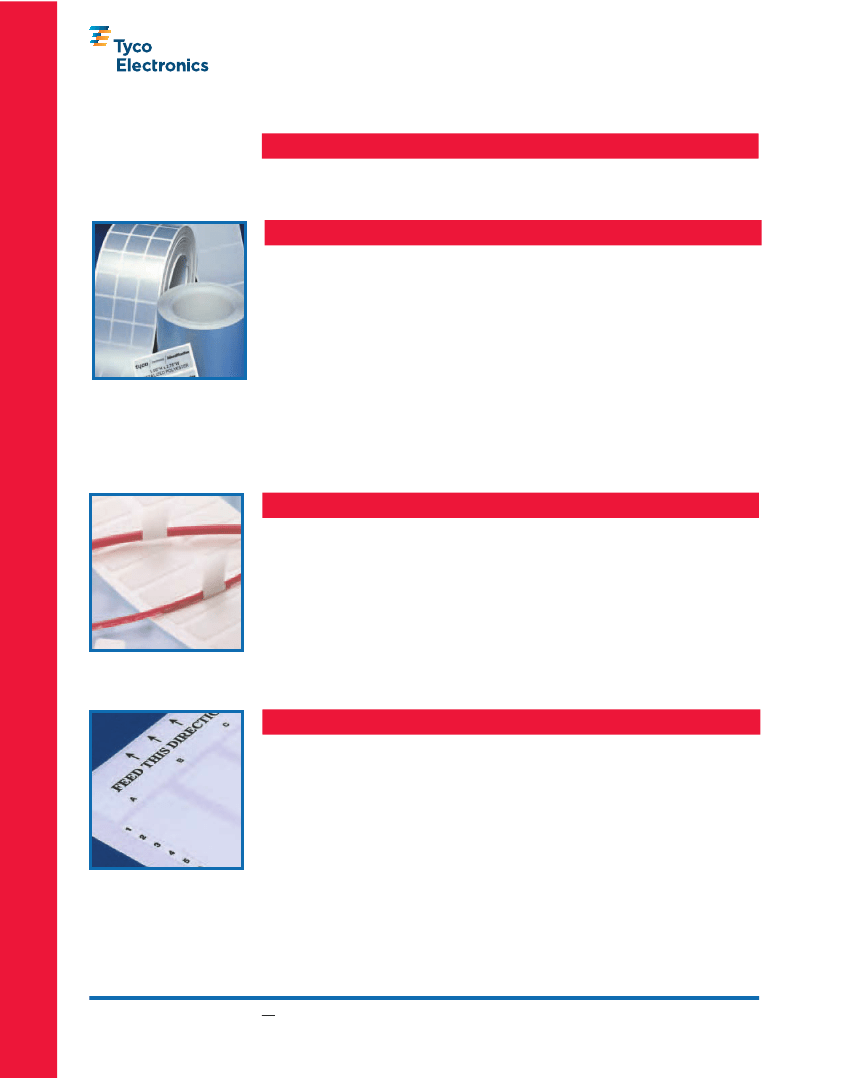

Label ID Products
CROSS REFERENCE
Label format - Product Order Code . . .87
THERMAL TRANSFER LABELS
WP White Polyester . . . . . . . . . . . . . . . . .88
CP Clear Polyester . . . . . . . . . . . . . . . . . .90
HW HighTack White Polyester . . . . . .92
HM High Tack Metalized Polyester . .94
MP Metalized Polyester . . . . . . . . . . . . .96
HMM High Tack Matte Metalized . . . .98
MV Metalized Void Polyester . . . . . .100
TN Tamper Proof Polyethylene . . . . .102
WV White Vinyl . . . . . . . . . . . . . . . . . . .104
NC Nylon Cloth . . . . . . . . . . . . . . . . . . . .106
NC Nylon Cloth Wire Markers . . . . . .108
NC Nylon Cloth Terminal Markers . .110
Kapton Labels . . . . . . . . . . . . . . . . . . . . .112
T1K Standard Polyimide . . . . . . . . . . .113
T2K High-performance Polyimide . .114
TSK Static-safe Polyimide . . . . . . . . . .115
KTT Tan Aerospace Polyimide . . . . .116
PVF Polyvinyl Fluoride . . . . . . . . . . . . .118
EP Paper . . . . . . . . . . . . . . . . . . . . . . . . . .120
VF Clear Tedlar
®
Overlaminate . . . . .122
DOT MATRIX LABELS
C Vinyl Cloth Labels . . . . . . . . . . . . . . . . .124
M Metalized Polyester Labels . . . . . . . .126
K Kapton Labels . . . . . . . . . . . . . . . . . . . . .128
E White Polyester Labels . . . . . . . . . . . .130
LASER LABELS
LE Polyester . . . . . . . . . . . . . . . . . . . . . . .132
LM Metalized Polyester . . . . . . . . . . . .132
LEB2 Polyester . . . . . . . . . . . . . . . . . . .1322
OBSOLETE
86
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
NOT the LATEST
REVISION
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Thermal Transfer
Label format - Old format order code cross reference
Thermal transfer
Old label format
100
101
102
103
104
105
106
107
108
109
110
111
112
114
115
116
117
118
119
121
122
123
124
125
126
127
128
129
130
132
134
136
137
New product order code
TTP400XX-10
XX-381064-10-#
XX-381191-5-#
XX-699254-5-#
XX-762508-2.5-#
XX-191064-10-#
XX-101165-0.85-#
XX-254127-10-#
XX-064064-25-#
XX-165051-25-#
XX-254097-10-#
XX-318064-10-#
XX-508064-10-#
XX508127-10-#
XX-254254-10-#
XX-095095-10-#
XX-508318-2.5-#
XX-762381-2.5-#
XX-101635-2.5-#
XX-523841-1.5-#
XX-127111-10-#
XX-508254-5-#
XX-508508-3-#
XX-101508-2.5-#
XX-101762-1.8-#
XX-101101-1.3-#
XX-762127-1-#
XX-229064-10-#
XX-203127-10-#
XX-381020-10-#
XX-165051-25-#
XX-040040-25-#
XX-114040-25-#
Old label format
138
139
201
205
214
230
901
902
903
904
905
906
907
908
909
911
912
913
914
916
917
918
919
920
921
922
923
924
925
926
927
928
New product order code
XX-080080-10-#
XX-178095-10-#
XX-381064-10-#
XX-191064-10-#
XX-508127-10-#
XX-203127-10-#
XX-127032-10-#
XX-040033-10-#
XX-254045-10-#
XX-089047-10-#
XX-305047-10-#
XX-445064-10-#
XX-254064-10-#
XX-095080-25-#
XX-208086-5-#
XX-508095-5-#
XX-318097-10-#
XX-165102-10-#
XX-445102-5-#
XX-127127-10-#
XX-381127-5-#
XX-222159-15-#
XX-171171-10-#
XX-478175-5-#
XX-699191-5-#
XX-406254-1.5-#
XX-250381-10-#
XX-381381-2.5-#
XX-610419-2.5-#
XX-445445-2-#
XX-381635-5-#
XX-191762-5-#
Dot matrix
Old label format
1
3
4
5
6A
7
8
11
12
13
16
17
B2
B4
B6
E
L1
M
L2
L3
R1
R2
R3
R4
R5
R7
V1
Y3
Y5
Y6
Y7
Y8
Y9
Y10
Y12
Y13
New product order code
X-165051-10-#
X-191064-10-#
X-203127-10-#
X-254095-10-#
X-508095-5-#
X-254127-10-#
X-381191-10-#
X-699254-2.5-#
X-920381-2.5-#
X-920254-2.5-#
X-203365-10-#
X-076191-10-#
X-533064-5-#
X-229064-10-#
X-394064-10-#
X-203064-10-#
X-080080-10-#
X-381064-10-S1-9
X-064064-10-#
X-095095-10-#
X-508254-4-#
X-673254-3-#
X-508318-3-#
X-673349-3-#
X-762508-1-#
X-165101-1-#
X-127111-10-#
X-215055-10-#
X-115064-10-#
X-154064-10-#
X-293064-10-#
X-711064-5-#
X-121064-10-#
X-102070-10-#
X-159079-10-#
X-533114-5-#
X-572286-2.5-#
X-699318-2.5-#
XX = Insert material code from table below. # = Insert color code from table below right.
Examples
Thermal transfer
Dot matrix
Old part number
101-T1K-10
3-EW10F
New part number
T1K-381064-10-9
E-191064-10-9
Y14
Y15
X = Insert material code from table below left.
# = Insert color code from table below.
Material codes – thermal transfer labels
CP =
EP =
HM =
HMM
HW =
KTT =
MP =
MV =
NC =
C
E
Clear polyester
Paper
High tack metalized polyester
= High tack matte metalized
High tack white polyester
Tan polyimide (Kapton
®
)
Metalized polyester
Tamper-evident metalized polyester
Nylon cloth
PVF =
T1K =
T1K =
T2K =
T2Y =
TN =
TSK =
WP =
WV =
K
M
Polyvinylfluoride (Tedlar )
Standard polyimide (Kapton
®
) 1 mil
Standard polyimide (Kapton
®
) 1 mil
High-performance polyimide (Kapton
®
) 2 mil
Modified polyimide
Tamper-proof polyethylene
Static-safe polyimide (Kapton
®
)
White polyester
White vinyl
®
Color codes
0
1
2
3
4
5
6
7
=
=
=
=
=
=
=
=
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
8
9
X
1A
2L
8A
=
=
=
=
=
=
Gray
White
Clear
Tan
Pink
Silver
Material codes – dot matrix labels
= Vinyl cloth
= White polyester
= Tan polyimide (Kapton
®
)
= Metalized polyester
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Label ID Products
87
Label ID Products
Thermal Transfer

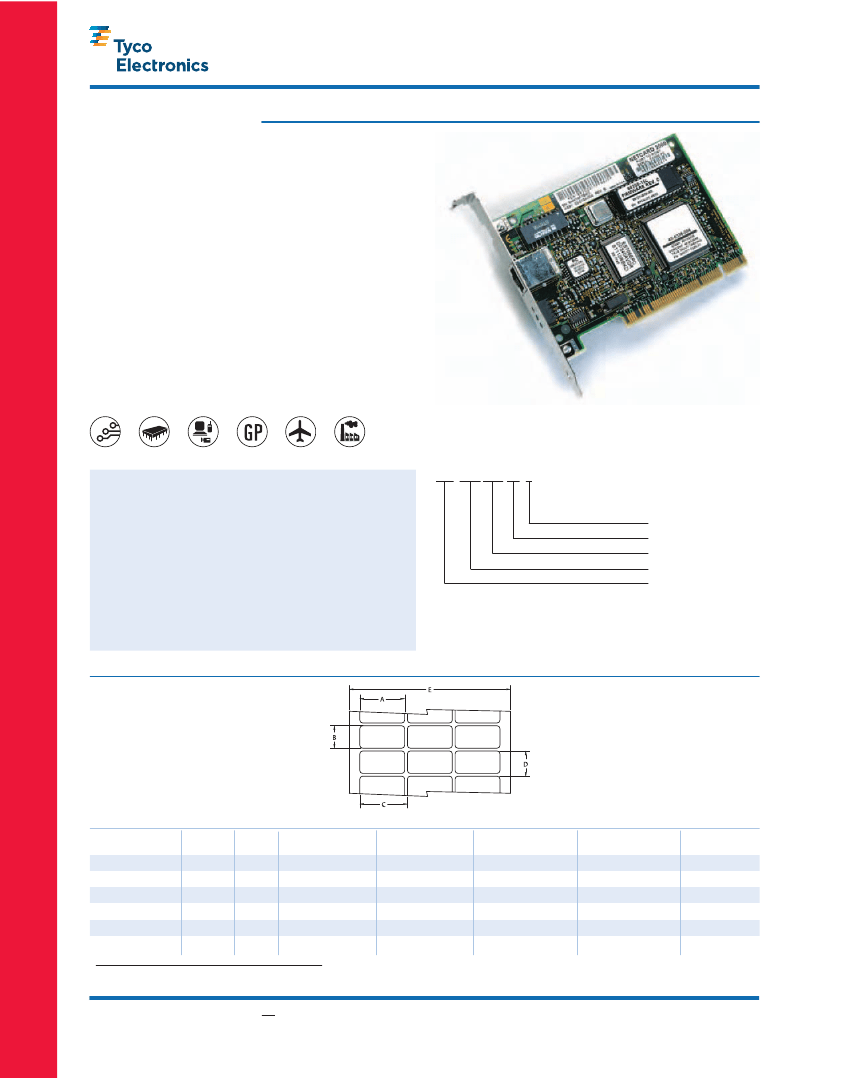

WP White polyester labels
Tyco Electronics WP is a thermal transfer printable white polyester
film with a permanent acrylic adhesive. It is ideal for bar coding,
PCB and component labeling, as well as general purpose labeling
applications that require a high durability white label. WP is
resistant to a variety of solvents while maintaining print quality. It is
UL Listed and print performance and durability are reliable when
used with Tyco Electronics 1330-0607 ribbon.
Features and benefits
I
I
I
I
I
Thermal transfer printable
Excellent for use in PCB component labeling
Ink receptive topcoat
Excellent for bar code applications
UL Listed
Part numbering system
Specifications/approvals
Tyco Electronics
Industry
TTDS -073
UL MH17292 Group PGJI2
WP- 040040-10- 9
Adhesive
Service temperature
Recommended printer
Recommended ribbon
Permanent acrylic
–40°C to +150°C
T300 Series printers
1330-0607-10*
–40°F to +302°F
Color
Pack size
Label height (mm)
Label width (mm)
Product family
*Alternative printers and ribbons are available for special applications. Contact Tyco
Electronics Identification for more information.
Ordering information
Thermal Transfer
Product dimensions
Product
order code
WP-040040-25-9
WP-064064-25-9
* WP-080080-10-9
WP-089047-10-9
WP-095080-25-9
WP-095095-10-9
Package
quantity
25,000
25,000
10,000
10,000
25,000
10,000
Labels
across
20
12
8
5
5
7
Label width (A)
mm
inches
4.0
6.4
8.0
8.9
9.5
9.5
Label height (B)
mm
inches
4.0
6.4
8.0
4.7
8.0
9.5
Horizontal repeat (C)
mm
inches
4.0
6.4
9.9
11.4
12.2
11.1
Vertical repeat (D)
mm
inches
7.2
9.5
13.3
7.9
12.7
12.7
Web width (E)
mm
inches
86.0
82.2
83.3
60.6
64.3
82.1
0.157
0.250
0.315
0.350
0.375
0.375
0.157
0.250
0.315
0.185
0.315
0.375
0.157
0.250
0.390
0.450
0.480
0.437
0.281
0.375
0.525
0.313
0.500
0.500
3.380
3.240
3.280
2.386
2.531
3.230
* NOTE: Standard Format Not Compatible with T200 Printers
88
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Thermal Transfer

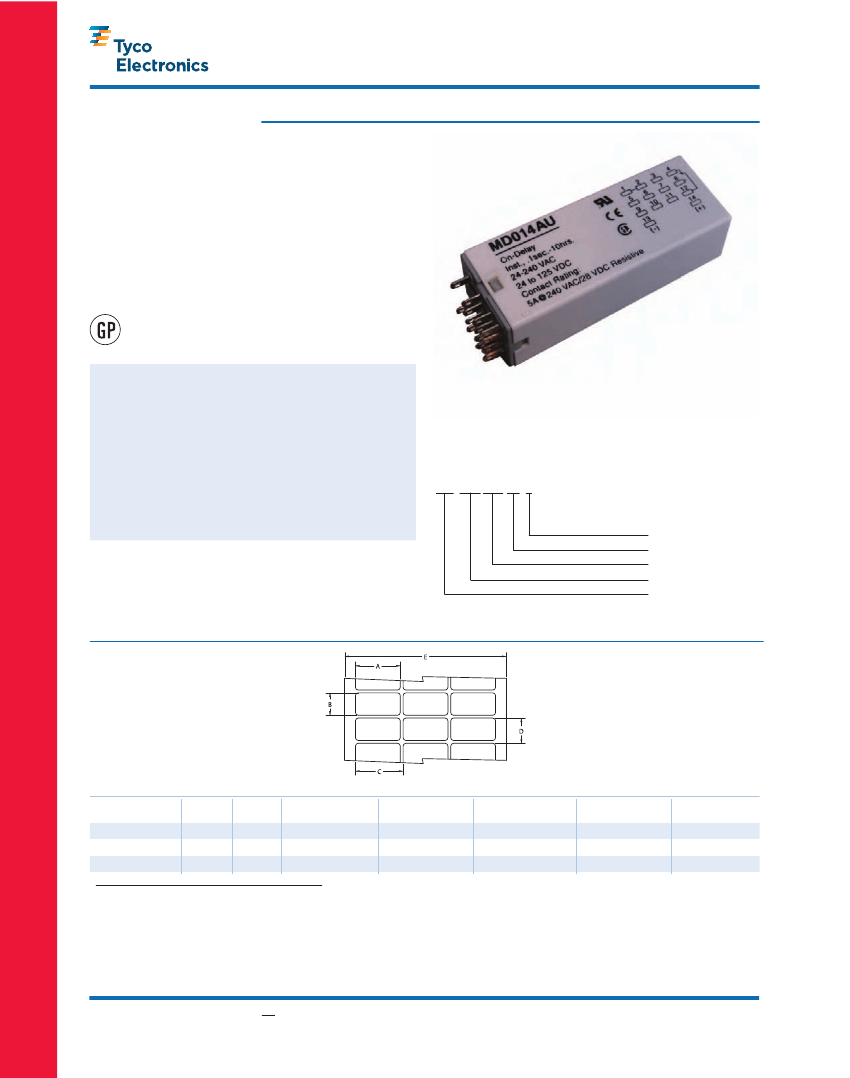

WP White polyester labels
Product dimensions
Product
order code
WP-127111-10-9
WP-127127-10-9
* WP-165051-25-9
WP-165102-10-9
WP-171171-10-9
* WP-178095-10-9
* WP-191064-10-9
WP-191114-15-9
* WP-203127-10-9
WP-229064-10-9
WP-254045-10-9
WP-254064-10-9
WP-254097-10-9
WP-254127-10-9
WP-254254-10-9
* WP-305047-10-9
WP-318064-10-9
WP-318097-10-9
WP-381064-10-9
* WP-381127-5-9
WP-381191-5-9
* WP-381381-2.5-9
* WP-381635-5-9
* WP-406254-1.5-9
WP-445064-10-9
WP-445102-5-9
WP-445445-2-9
WP-478175-5-9
WP-508064-10-9
WP-508095-5-9
WP-508127-5-9
WP-508254-5-9
WP-508318-2.5-9
WP-508508-3-9
WP-523841-1.5-9
WP-610419-2.5-9
WP-699191-5-9
WP-699254-5-9
WP-762254-5-9
WP-762381-2.5-9
WP-762508-2.5-9
WP-762127-1-9
WP-101508-2.5-9
WP-101635-2.5-9
WP-101762-1.8-9
WP-101101-1.3-9
WP-101165-0.85-9
Package
quantity
10,000
10,000
25,000
10,000
10,000
10,000
10,000
15,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
5,000
5,000
2,500
5,000
1,500
10,000
5,000
2,000
5,000
10,000
5,000
5,000
5,000
2,500
3,000
1,500
2,500
5,000
5,000
5,000
2,500
2,500
1,000
2,500
2,500
1,800
1,300
850
Labels
across
5
5
4
5
5
4
4
3
4
3
3
3
3
3
3
2
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Label width (A)
mm
inches
12.7
12.7
16.5
16.5
17.1
17.8
19.1
19.1
20.3
22.9
25.4
25.4
25.4
25.4
25.4
30.5
31.8
31.8
38.1
38.1
38.1
38.1
38.1
40.6
44.5
44.5
44.5
47.8
50.8
50.8
50.8
50.8
50.8
50.8
52.3
61.0
69.9
69.9
76.2
76.2
76.2
76.2
101.6
101.6
101.6
101.6
101.6
Label height (B)
mm
inches
11.1
12.7
5.1
10.2
17.1
9.5
6.4
11.4
12.7
6.4
4.6
6.4
9.7
12.7
25.4
4.7
6.4
9.7
6.4
12.7
19.1
38.1
63.5
25.4
6.4
10.2
44.5
17.5
6.4
9.5
12.7
25.4
31.8
50.8
84.1
41.9
19.1
25.4
25.4
38.1
50.8
127.0
50.8
63.5
76.2
101.6
165.1
Horizontal repeat (C)
mm
inches
16.8
15.9
17.8
19.1
19.7
19.1
21.6
22.2
22.9
28.6
31.8
27.9
27.9
27.9
27.9
33.0
N/A
N/A
N/A
44.2
43.2
44.5
40.6
55.9
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Vertical repeat (D)
mm
inches
14.3
15.9
8.3
13.8
20.3
12.7
9.5
14.7
15.9
9.5
8.5
9.5
12.7
16.9
28.6
7.8
9.5
12.7
9.5
15.9
22.2
40.8
66.7
38.1
9.5
12.7
47.6
24.4
9.5
12.7
15.9
28.6
34.9
54.6
88.9
45.5
23.3
28.6
28.6
41.3
54.0
129.5
54.6
66.7
79.4
104.8
168.3
Web width (E)
mm
inches
86.0
82.6
75.8
99.1
101.8
80.9
89.9
69.5
94.6
86.0
95.3
87.3
87.4
87.4
87.4
69.5
37.9
37.8
44.5
88.2
87.6
88.9
84.7
102.9
50.4
50.4
50.4
66.0
56.9
57.2
56.9
57.2
56.9
54.0
58.2
67.3
76.2
76.2
82.3
82.3
82.6
79.4
104.1
107.7
104.1
104.1
104.9
0.500
0.500
0.650
0.650
0.674
0.700
0.750
0.750
0.800
0.900
1.000
1.000
1.000
1.000
1.000
1.200
1.250
1.250
1.500
1.500
1.500
1.500
1.500
1.600
1.750
1.750
1.750
1.880
2.000
2.000
2.000
2.000
2.000
2.000
2.060
2.400
2.750
2.750
3.000
3.000
3.000
3.000
4.000
4.000
4.000
4.000
4.000
0.437
0.500
0.200
0.400
0.674
0.375
0.250
0.450
0.500
0.250
0.180
0.250
0.380
0.500
1.000
0.185
0.250
0.380
0.250
0.500
0.750
1.500
2.500
1.000
0.250
0.400
1.750
0.690
0.250
0.375
0.500
1.000
1.250
2.000
3.310
1.650
0.750
1.000
1.000
1.500
2.000
5.000
2.000
2.500
3.000
4.000
6.500
0.662
0.625
0.700
0.750
0.774
0.750
0.850
0.875
0.900
1.125
1.250
1.100
1.100
1.100
1.100
1.300
N/A
N/A
N/A
1.740
1.700
1.750
1.600
2.200
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.563
0.625
0.325
0.545
0.800
0.500
0.375
0.579
0.625
0.375
0.333
0.375
0.500
0.666
1.125
0.306
0.375
0.500
0.375
0.630
0.875
1.610
2.630
1.500
0.375
0.500
1.875
0.962
0.375
0.500
0.625
1.125
1.375
2.150
3.500
1.792
0.917
1.125
1.125
1.625
2.125
5.100
2.150
2.625
3.125
4.125
6.680
3.380
3.250
2.990
3.900
4.006
3.190
3.540
2.736
3.730
3.390
3.750
3.436
3.440
3.440
3.440
2.736
1.490
1.488
1.750
3.470
3.450
3.500
3.340
4.050
1.986
1.986
1.986
2.600
2.240
2.250
2.240
2.250
2.240
2.130
2.290
2.650
3.000
3.000
3.240
3.240
3.240
3.130
4.100
4.240
4.100
4.100
4.130
* NOTE: Standard Format Not Compatible with T200 Printers
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Thermal Transfer
89
Label ID Products
Label ID Products
Thermal Transfer
CP Clear polyester labels
CP is a thermal transfer printable clear polyester film with a permanent
acrylic adhesive and can be used as an over laminate. Designed for
rating plates, nameplates, equipment labels, serial number plates and
general labeling applications that require a high durability transparent
label. For reliable print performance and durability, use with Tyco
Electronics 1330-0607 ribbon.
Features and benefits
I
I
Thermal transfer printable
Ideal for general labeling applications
Specifications/approvals
Tyco Electronics
TTDS -083
Adhesive
Service temperature
Permanent acrylic
–40°C to +150°C
–40°F to +302°F
Recommended Printer
T300 Series printers
Recommended Ribbon
1330-0607-10*
*Alternative printers and ribbons are available for special
applications. Contact Tyco Electronics Identification for
more information.
Part numbering system
CP - 762508-25- X
Color
Pack size
Label height (mm)
Label width (mm)
Product family
Ordering information
Thermal Transfer
Product dimensions
Product
order code
CP-165051-25-X
CP-191064-10-X
CP-229064-10-X
Package
quantity
25,000
10,000
10,000
Labels
across
4
4
3
Label width (A)
mm
inches
16.5
19.1
22.9
Label height (B)
mm
inches
5.1
6.4
6.4
Horizontal repeat (C)
mm
inches
17.8
21.6
28.6
Vertical repeat (D)
mm
inches
8.3
9.5
9.5
Web width (E)
mm
inches
75.8
89.9
86.0
0.650
0.750
0.900
0.200
0.250
0.250
0.700
0.850
1.125
0.325
0.375
0.375
2.990
3.540
3.390
* NOTE: Standard Format Not Compatible with T200 Printers
90
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
