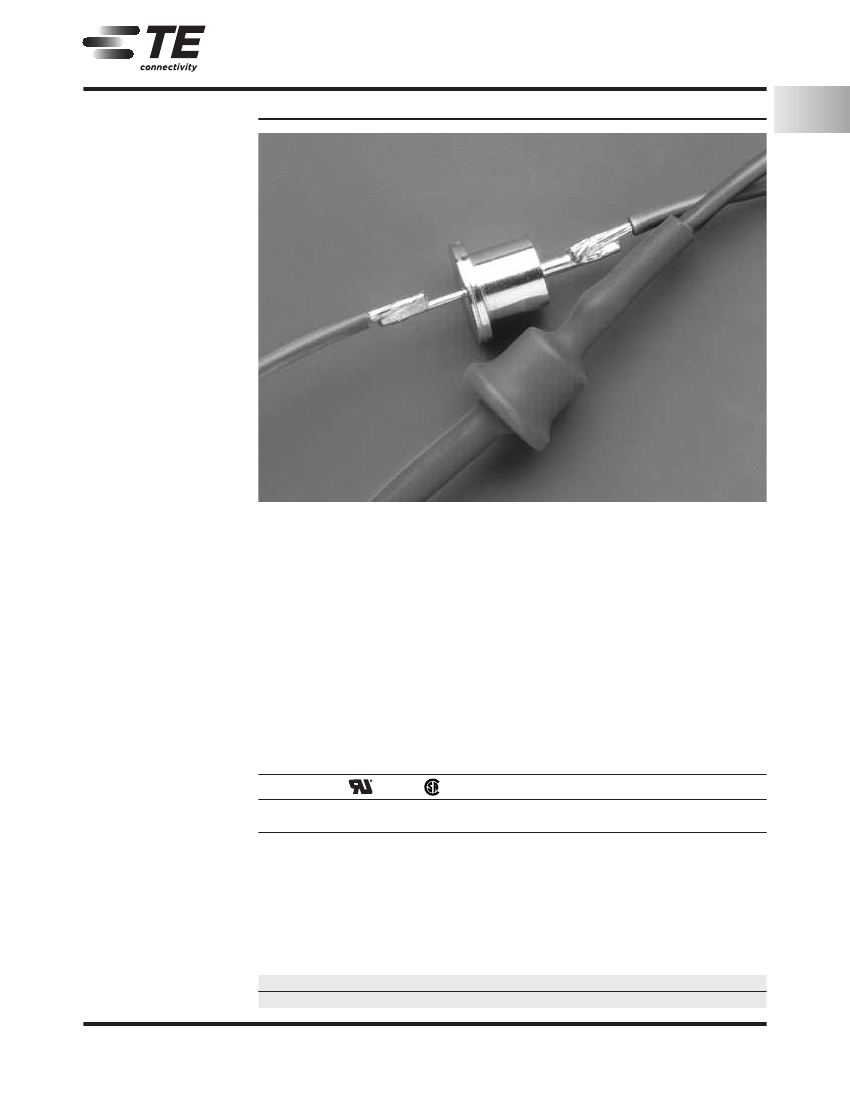

RAYCHEM Tubing Products
RNF-3000
Flexible, High-Shrink-
Ratio, Flame-Retardant,
General Purpose,
Polyolefin Tubing
Product Facts
3:1 shrink ratio easily
accommodates awkward,
irregular shapes
I
Few sizes cover a wide
range of diameters, allowing
reduced inventory
I
Excellent physical,
chemical, and electrical
properties meet industry
standards for highly
reliable, general purpose
tubing
I
Flame-retardant (colors
only)
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Used for insulation
and strain relief of wire
terminations and electrical
connections. Also suitable
for light-duty harnessing,
jacketing, and identification
of wires, cables, and
electrical and electronic
components.
Installation
Minimum shrink
temperature: 80°C [176°F]
Minimum full recovery
temperature: 120°C [248°F]
Operating Temperature Range
-55°C to 135°C
[-67°F to 275°F]
Specifications/Approvals
Series
RNF-3000
UL
E35586
600 V, 125°C
CSA
®
Military
Def. Stan. 59-97 Type 2B
VG 95343 Pt 5 Type A (color)
VG 95343 Pt 5 Type B (clear)
Industry
VDE 0341 Pt 9005
Type A and B
Raychem
RW-2053
LR31929
600 V, 125°C
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-93
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
RNF-3000
(Continued)
Product Dimensions
Size
1.5/0.5
3/1
4.5/1.5
6/2
9/3
12/4
18/6
24/8
39/13
Inside Diameter
Minimum Expanded
Maximum Recovered
as Supplied
After Heating
1.5 [0.060]
0.5 [0.019]
3 [0.118]
1 [0.039]
4.5 [0.177]
1.5 [0.059]
6 [0.236]
2 [0.079]
9 [0.354]
3 [0.118]
12 [0.472]
4 [0.157]
18 [0.709]
6 [0.236]
24 [0.944]
8 [0.315]
39 [1.534]
13 [0.512]
Recovered Wall Thickness*
After Heating
0.45 ± 0.10 [0.018 ± 0.003]
0.55 ± 0.10 [0.022 ± 0.003]
0.55 ± 0.10 [0.022 ± 0.003]
0.65 ± 0.10 [0.026 ± 0.003]
0.75 ± 0.12 [0.030 ± 0.004]
0.75 ± 0.12 [0.030 ± 0.004]
0.85 ± 0.12 [0.033 ± 0.004]
1.00 ± 0.18 [0.039 ± 0.007]
1.15 ± 0.20 [0.045 ± 0.008]
*Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Color
Size selection
Standard packaging***
Ordering description****
Standard**
Black (-0), white (-9), red (-2), blue (-6), yellow (-4), clear (-X)
Nonstandard
Brown (-1), orange (-3), green (-5), violet (-7), gray (-8)
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
On spools or in 1.2-meter [4-foot] lengths.
Specify product name, size and color (for example, RNF-3000 6/2-0).
**Black is the only standard color in the Americas. All other colors are nonstandard.
***Only spools are standard in the Americas. 1.2 meter [4-foot] lengths are nonstandard.
****Europe only. For supply to Def Stan and BS add -DS or -BS to ordering description.
1-94
9-1773447-9
CIS WR 08/2011
te.com
