TITLE
SPECIFICATION CONTROL DRAWING
WIRE, RADIATION-CROSSLINKED, MODIFIED FLEXIBLE ETFE-INSULATED,
LIGHTWEIGHT, GENERAL PURPOSE, 600 VOLT
82A0111
Date
6-5-13
Revision
T
This specification sheet forms a part of the latest issue of Raychem Specification 80.

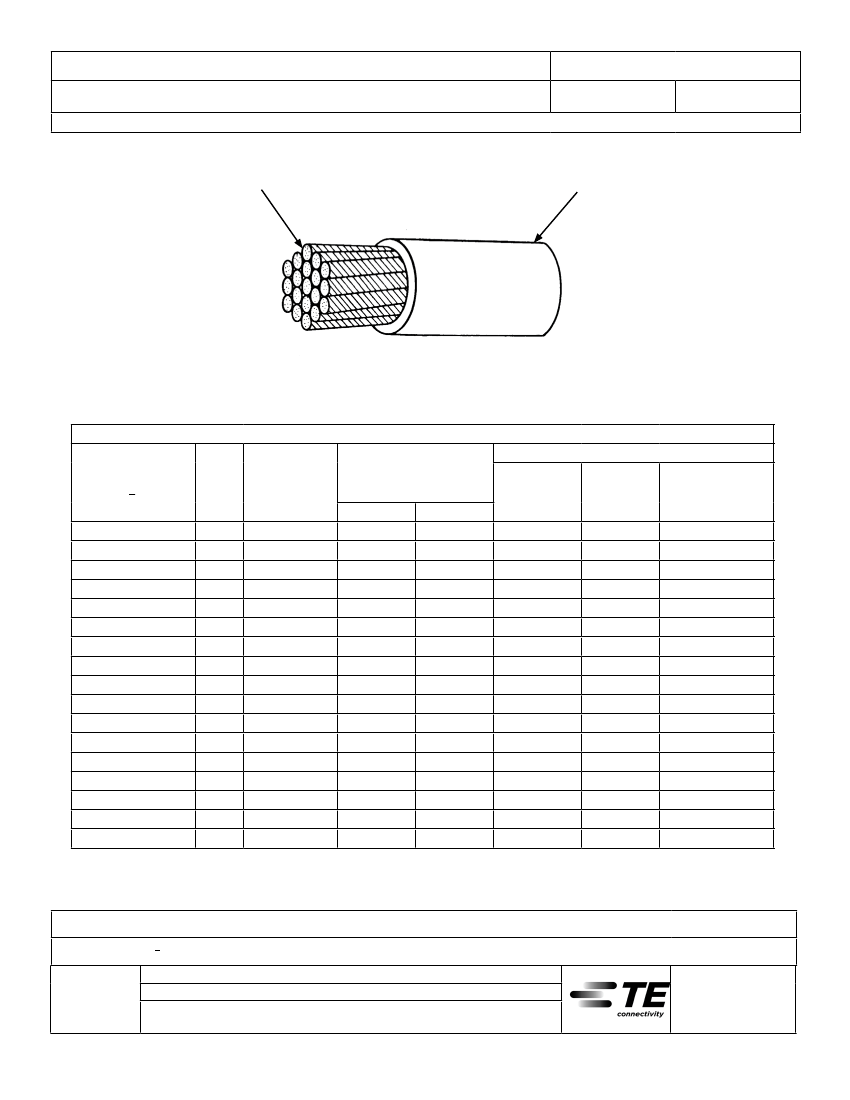

CONDUCTOR - TIN-COATED COPPER
INSULATION - RADIATION-CROSSLINKED,
MODIFIED FLEXIBLE ETFE
TABLE I. CONSTRUCTION DETAILS
PART NUMBER
1/
82A0111-28-*
82A0111-26-*
82A0111-24-*
82A0111-22-*
82A0111-20-*
82A0111-18-*
82A0111-16-*
82A0111-14-*
82A0111-12-*
82A0111-10-*
82A0111-8-*
82A0111-6-*
82A0111-4-*
82A0111-2-*
82A0111-1-*
82A0111-0-*
82A0111-00-*
WIRE
SIZE
(AWG)
28
26
24
22
20
18
16
14
12
10
8
6
4
2
1
0
00
CONDUCTOR
STRANDING
(number x AWG)
42 x 44
63 x 44
105 x 44
154 x 44
154 x 42
259 x 42
259 x 40
665 x 42
665 x 40
665 x 38
665 x 36
1045 x 36
1665 x 36
1665 x 34
2109 x 34
2660 x 34
3325 x 34
DIAMETER OF
STRANDED
CONDUCTOR
(in.)
MINIMUM
.013
.017
.023
.029
.037
.047
.061
.078
.096
.126
.157
.192
.265
.325
.370
.435
.485
MAXIMUM
.017
.021
.027
.033
.043
.053
.067
.086
.106
.140
.173
.208
.285
.345
.400
.465
.515
FINISHED WIRE
MAXIMUM
RESISTANCE
AT 20°C
(ohms/1000 ft.)
71.4
43.5
28.2
19.2
11.7
7.14
4.53
2.96
1.89
1.12
.714
.490
.326
.204
.163
.133
.102
DIAMETER
(in.)
.029 ± .003
.033 ± .003
.037 ± .003
.043 ± .003
.053 ± .004
.064 ± .004
.079 ± .004
.099 ± .005
.121 ± .006
.157 ± .009
.195 ± .010
.236 ± .011
.318 ± .013
.385 ± .014
.445 ± .019
.516 ± .020
.566 ± .020
MAXIMUM
WEIGHT
(lbs/1000 ft.)
1.0
1.4
2.1
2.9
4.2
6.7
10.2
16.5
24.8
42.2
66.3
102.
169.
252.
317.
407.
502.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE
ADDED TO THE PART NUMBER. AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2013 Tyco Electronics Corporation,. All rights reserved.
Page 1 of 2
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
Revision
SCD Number
SPECIFICATION CONTROL DRAWING
Page 2 of 2
T
82A0111
TABLE II. PERFORMANCE DETAILS
BEND TESTING
PART NUMBER
1/
82A0111-28-*
82A0111-26-*
82A0111-24-*
82A0111-22-*
82A0111-20-*
82A0111-18-*
82A0111-16-*
82A0111-14-*
82A0111-12-*
82A0111-10-*
82A0111-8-*
82A0111-6-*
82A0111-4-*
82A0111-2-*
82A0111-1-*
82A0111-0-*
82A0111-00-*
MANDREL DIAMETER
(inch) (± 3%)
CROSSLINKING PROOF TEST
.250
.375
.375
.500
.500
.500
.750
1.00
1.50
2.00
3.00
3.00
4.00
6.00
8.00
8.00
8.00
WEIGHT
(lb) (± 3%)
CROSSLINKING PROOF TEST
.125
.125
.250
.375
.500
.500
.750
1.00
1.50
1.50
2.00
2.00
2.50
3.00
4.00
4.00
4.00
WIRE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
COLOR: White preferred
CONCENTRICITY: 70% (minimum)
CROSSLINKING PROOF TEST: 300 ± 3°C for 7 hours
IDENTIFICATION AND COLOR STRIPING DURABILITY:
125 cycles (250 strokes) (minimum), 500 gram weight
INSULATION ELONGATION AND TENSILE STRENGTH:
AWG 28-26: Elongation, 75% (minimum)
Tensile Strength, 3000 lbf/in² (minimum)
AWG 24-10: Elongation, 75% (minimum)
Tensile Strength, 3500 lbf/in² (minimum)
AWG 8-00: Elongation, 125% (minimum)
Tensile Strength, 3000 lbf/in² (minimum)
INSULATION FLAWS:
Spark Test, 1.5 kV (rms) at 3 kHz
Impulse Dielectric Test, 6.0 kV (peak)
INSULATION THICKNESS:
AWG 28-16: .004 in. (minimum)
AWG 14-10: .006 in. (minimum)
AWG 8-00: .012 in. (minimum)
SECANT MODULUS: (Test per ASTM D 882)
AWG 28-10: 5.0 x 10
4
lbf/in
2
(maximum)
AWG 8-00: 4.0 x 10
4
lbf/in
2
(maximum)
2% strain, 2 inch jaw separation, 0.2 inch/minute
SHRINKAGE: 150 ± 3°C for 6 hours,
AWG 28-10: 0.13 in. (maximum) in 12 inches
AWG 8-00: 0.25 in. (maximum) in 12 inches
VOLTAGE WITHSTAND (Post Environmental): 2500 volts (rms), 60 Hz
PART NUMBER:
The “*” in the part numbers in Tables I and II shall be replaced by a
color code designator.
1/
Example: AWG 12, white; 82A0111-12-9
AWG 12, white with a black stripe; 82A0111-12-90
1/
See footer section on page 1
