55PC1211-24-9-9: Description55PC1211-24-9-9; CategoryWire/cable; File Size24KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC1211-24-9-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55PC1211-24-9-9	-	-	View	Buy Now

55PC1211-24-9-9 Overview

55PC1211-24-9-9

55PC1211-24-9-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	1
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	White
conductor material	tinned copper, tinned copper
Shield size (AWG)	38
Overall outer diameter	1.75 mm [ .069 in ]
Wire size (AWG)	24
Wire diameter	1 mm [ .0394 in ]
Operating temperature range (°C)	-65 – 150
Wire source	USA

Preview

Download Datasheet

View All

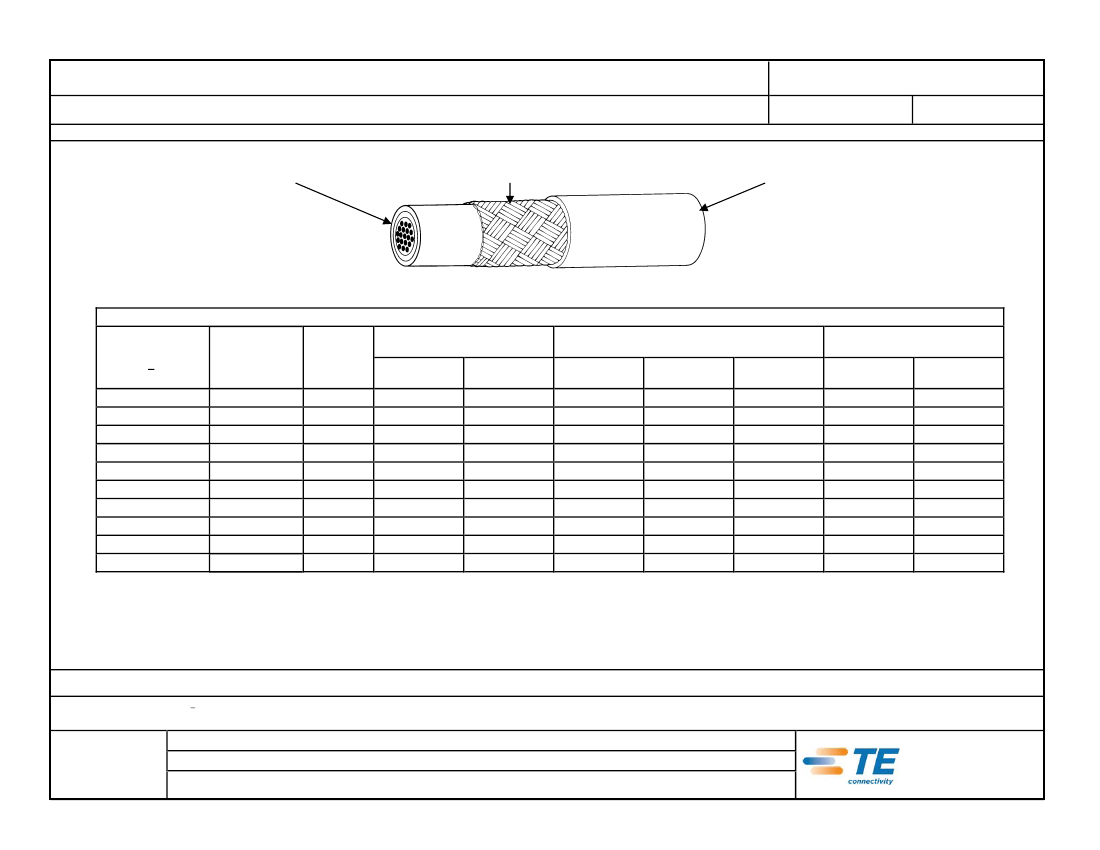

SPECIFICATION CONTROL DRAWING

Title

SCD

55PC1211

Revision

ONE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

Date

10-6-15

D

COMPONENT WIRE - 55PC0211

SHIELD - TIN-COATED COPPER

JACKET - RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETAILS

PART NUMBER

1/

55PC1211-26-*

55PC1211-24-*

55PC1211-22-*

55PC1211-20-*

55PC1211-18-*

55PC1211-16-*

55PC1211-14-*

55PC1211-12-*

55PC1211-10-*

55PC1211-8-*

CONDUCTOR

SIZE

(AWG)

26

24

22

20

18

16

14

12

10

8

SHIELD

SIZE

(AWG)

38

JACKET THICKNESS

(inch)

LOWER

SPEC LIMIT

.0050

.0070

TARGET

WALL

.0060

.0065

.0090

LOWER

SPEC LIMIT

.060

.065

.071

.080

.089

.097

.112

.131

.154

.219

OUTSIDE DIAMETER

(inch)

TARGET

VALUE

.064

.069

.075

.083

.093

.100

.116

.135

.159

.231

UPPER

SPEC LIMIT

.068

.073

.079

.087

.097

.104

.120

.140

.164

.243

WEIGHT

(lbs/1000 ft.)

TARGET

VALUE

4.40

5.28

6.59

8.62

11.43

13.68

19.28

27.37

40.25

73.26

UPPER

SPEC LIMIT

4.68

5.57

6.89

8.96

11.84

14.11

19.85

28.05

41.30

75.89

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: "901/902..." MAY BE REPLACED BY "Axxx".) OTHER CODES

AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55PC1211-24-9-9 Related Products

	55PC1211-24-9-9	55PC1211-16-9-9	55PC1211-12-9-9	55PC1211-20-9-9
Description	55PC1211-24-9-9	55PC1211-16-9-9	55PC1211-12-9-9	55PC1211-20-9-9
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of conductors	1	1	1	1
Rated voltage (V)	600	600	600	600
shielding material	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper
Insulating sleeve color	White	White	White	White
Wire color	White	White	White	White
conductor material	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper
Wire size (AWG)	24	16	12	20
Operating temperature range (°C)	-65 – 150	-65 – 150	-65 – 150	-65 – 150
Cable type	Sheathed shield winding braid	Sheathed shield winding braid	Sheathed shield winding braid	Sheathed shield winding braid
Shield size (AWG)	38	-	38	38
Overall outer diameter	1.75 mm [ .069 in ]	-	3.43 mm [ .135 in ]	2.11 mm [ .083 in ]
Wire diameter	1 mm [ .0394 in ]	-	2.66 mm [ .1047 in ]	1.37 mm [ .054 in ]
Wire source	USA	-	USA	USA
