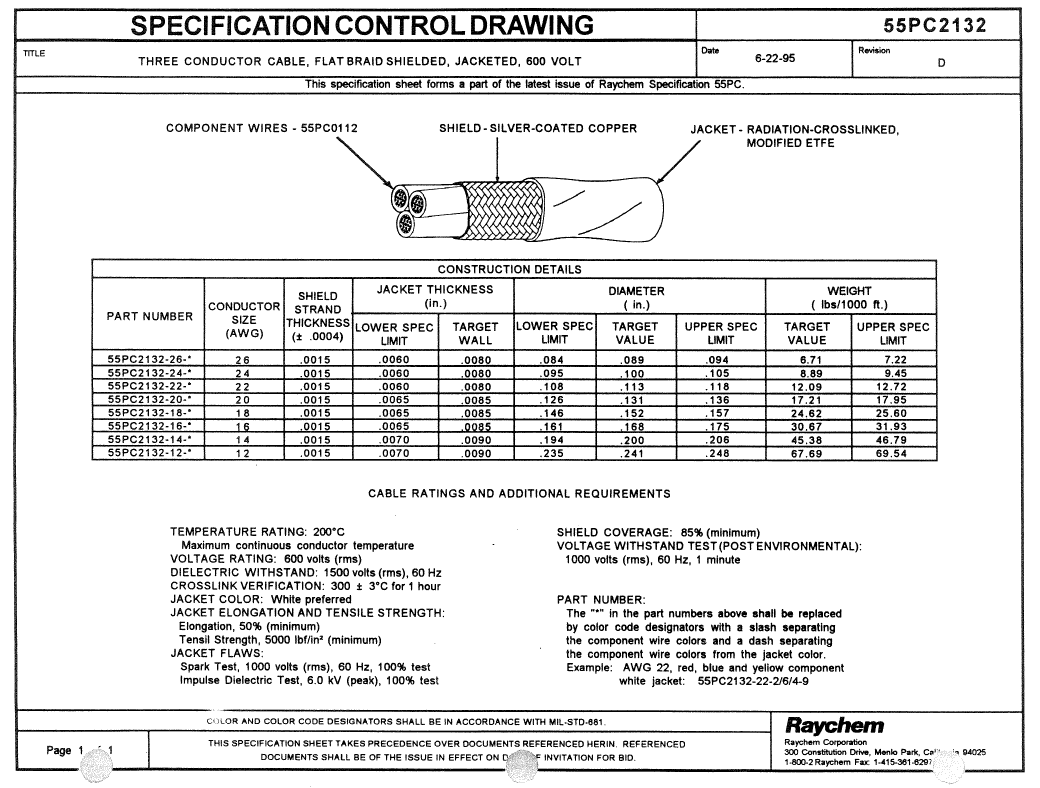

55PC2132-22-3/6/9-9 datasheet, PDF

55PC2132-22-3/6/9-9: Description55PC2132-22-3/6/9-9; CategoryWire/cable; File Size107KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC2132-22-3/6/9-9 Overview

55PC2132-22-3/6/9-9

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	3
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Insulating sleeve color	White
Wire color	orange, white, blue
conductor material	silver coated copper, silver coated copper
Conductor diameter (in)	.029
Stock size (AWG)	34
Overall outer diameter	2.87 mm [ .113 in ]
Wire size (AWG)	22
Wire diameter	1.05 mm [ .041 in ]
Operating temperature range (°C)	-65 – 200

	55PC2132-22-3/6/9-9	55PC2132-22-9/93/96-9
Description	55PC2132-22-3/6/9-9	55PC2132-22-9/93/96-9
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of conductors	3	3
Rated voltage (V)	600	600
shielding material	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Insulating sleeve color	White	White
Wire color	orange, white, blue	White, white with orange stripes, white with blue stripes
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Overall outer diameter	2.87 mm [ .113 in ]	2.87 mm [ .113 in ]
Wire size (AWG)	22	22
Wire diameter	1.05 mm [ .041 in ]	1.05 mm [ .041 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200
Cable type	Flat braided shielding and jacketing	Flat braided shielding and jacketing
