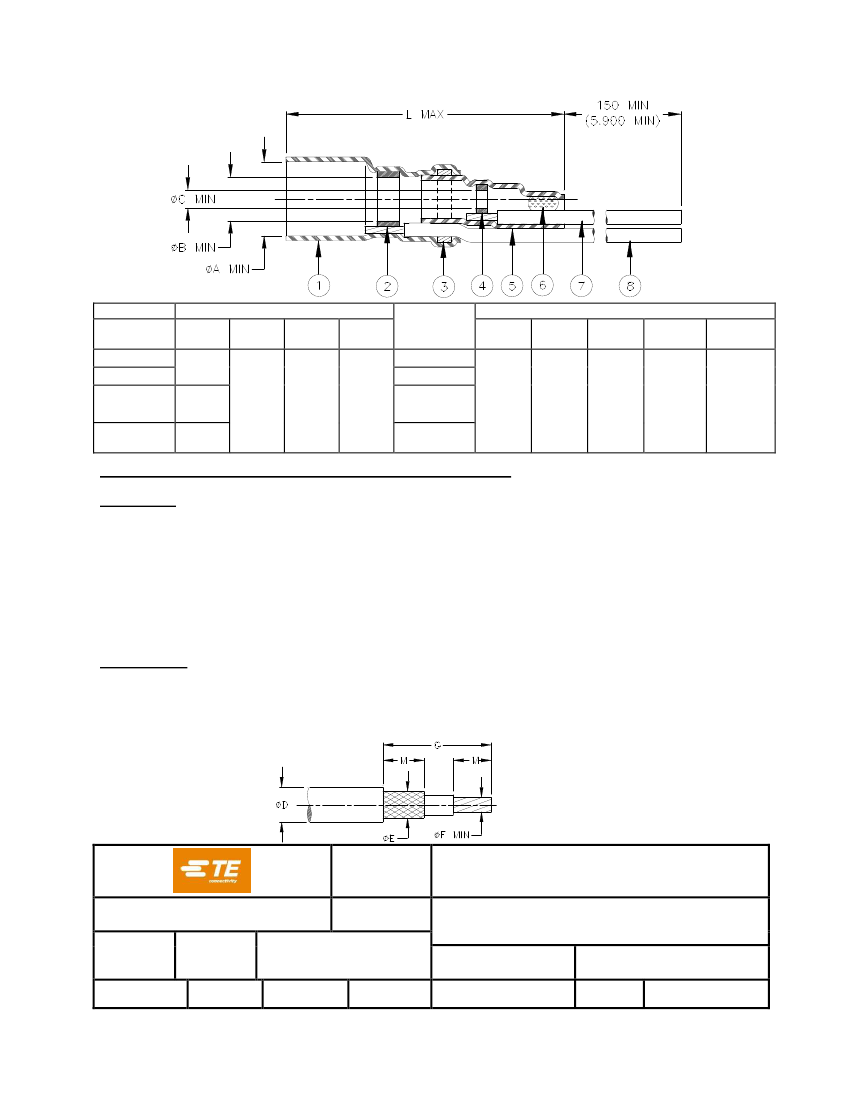

CUSTOMER DRAWING
Product
Name
B-044-20-N
B-044-22-N
B-044-24-N
B-044-26-N
Component Dimensions
L
øA
øB
øC
max
min
min
min
28.0
(1.100)
29.0
(1.142)
28.0
(1.100)
3.40
(0.135)
2.30
(0.090)
0.8
(0.030)
“GA”
Wire Gauge
(AWG)
20
22
24
26
øD
øE
Cable Dimensions
øF
G±0.5
min
(G±0.02)
M±0.5
(M±0.02)
1.70
(0.065)
to
3.40
(0.135)
1.30
(0.050)
To
2.30
(0.090)
0.30
(0.012)
16.0
(0.630)
6.0
(0.235)
NOTE: MATERIAL 6 DOES NOT APPLY ON B-044-20/22-N
MATERIALS
1. & 5. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue.
2. & 4. SOLDER PREFORMS WITH FLUX:
SOLDER: TYPE Sn63 per ANSI J-STD-006.
FLUX:
TYPE ROL1 per ANSI J-STD-004.
3. & 6. MELTABLE RINGS: Thermally stabilized thermoplastic.
7. CONDUCTOR LEAD: MIL-W-22759/32-GA-9,
AWG “GA” (see table). ETFE insulated, stranded tin plated copper.
Color: white.
8. GROUND LEAD: MIL-W-22759/32-GA-6,
AWG “GA” (see table). ETFE insulated, stranded tin plated copper.
Color: blue.
APPLICATION
1. The parts covered by this SCD are for use in terminating the primary conductor and the braided shield of a coaxial cable
having tin or silver plated conductor and shield, rated for at least 125° C and meeting the dimensional requirements listed.
2. Parts will meet the requirements of Raychem Specification RT-1404 when installed per Raychem RPIP-500-03.
3. Temperature range: -55°C to +150°C.
For best results, prepare
the cable as shown:
TE Connectivity
305 Constitution Dr
Menlo Park, CA
94025, U.S.A.
TITLE:
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
ROUGHNESS
IN MICRON
CAGE CODE:
Raychem
Devices
COAXIAL SOLDERSLEEVE DEVICE WITH
PRE-INSTALLED STRANDED WIRE
DOCUMENT NO.:
B-044-GA-N
REV:
DATE:
P.TALLY
06090
NTS
© 2007-2016 TE Connectivity Ltd. Family of Companies. All Rights Reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
TE Connectivity reserves the right to
amend this drawing at any time. Users
should evaluate the suitability of the
product for their application.
REPLACES:
ECO NUMBER:
D001334
ECO-16-008370
E2
SCALE:
SIZE:
2-Jun-16
SHEET:
A
1 of 1
