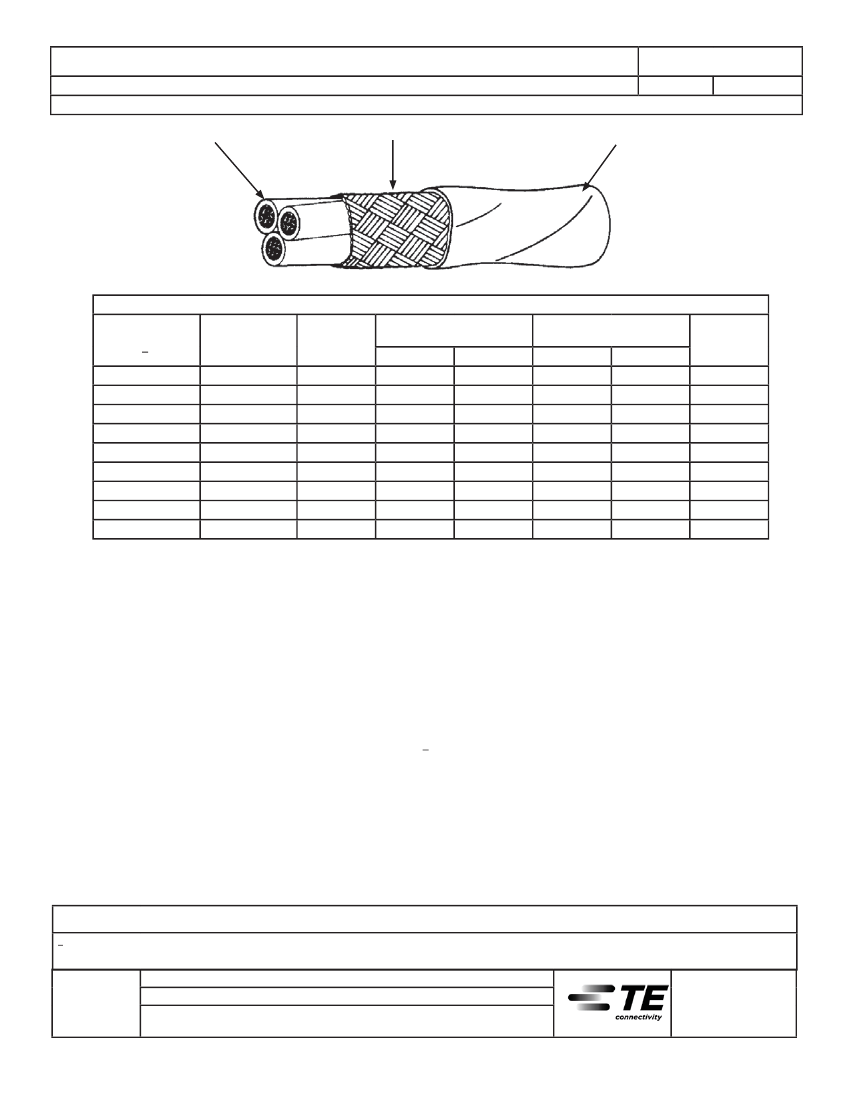

SPECIFICATION CONTROL DRAWING
TITLE
82/1132
Date
THREE CONDUCTOR CABLE, SHIELDED, JACKETED, OUTER SPACE, FLEXIBLE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 80.
COMPONENT WIRES - 82/0112
SHIELD - SILVER-COATED COPPER
11-13-13
Revision
B
JACKET - LOW OUTGASSING,
RADIATION-CROSSLINKED,
MODIFIED FLEXIBLE ETFE
CABLE CONSTRUCTION DETAILS
PART NUMBER
1/
82/1132-28-*
82/1132-26-*
82/1132-24-*
82/1132-22-*
82/1132-20-*
82/1132-18-*
82/1132-16-*
82/1132-14-*
82/1132-12-*
CONDUCTOR
SIZE
(AWG)
28
26
24
22
20
18
16
14
12
SHIELD
SIZE
(AWG)
38
38
38
38
38
38
38
38
38
JACKET THICKNESS
(inch)
MINIMUM
.006
.006
.006
.006
.007
.008
.009
.010
.011
NOMINAL
.008
.009
.009
.009
.010
.011
.013
.014
.016
OUTSIDE DIAMETER
(inch)
NOMINAL
.096
.106
.115
.128
.151
.177
.214
.259
.310
MAXIMUM
.101
.112
.121
.134
.159
.186
.224
.272
.326
MAXIMUM
WEIGHT
(lbs/1000 ft.)
9.1
10.6
13.4
16.8
22.8
32.8
47.3
71.1
103.
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
CROSSLINKING PROOF TEST: 300 ± 3°C for 1 hour
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 100% (minimum)
Tensile Strength, 3000 lbf/in² (minimum)
JACKET FLAWS:
Spark Test, 1500 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
RADIATION RESISTANCE (Test per Raychem Spec 55/):
500 megarads
SECANT MODULUS (Test per ASTM D 882):
4.0 x 10
4
lbf/in
2
(maximum),
2% strain, 2 inch jaw separation, 0.2 inch/minute
SHIELD COVERAGE: 85% (minimum)
VACUUM STABILITY (Test per ASTM E 595):
Total Mass Loss (TML), 1.00% (maximum)
Volatile Condensable Material (VCM), 0.10% (maximum)
VOLTAGE WITHSTAND (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
1/ PART NUMBER:
The “*” in the part numbers above shall be replaced by color code
designators with a slash separating the component wire colors and a
dash separating the component wire colors from the jacket color.
Colors shown do not necessarily reflect the sequence of manufacturing.
Example: AWG 24, black, brown and red component wires;
white jacket: 82/1132-24-0/1/2-9
NOTE: Nominal values are for information only.
Nominal values are not requirements.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”). OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2012-2013 Tyco Electronics Corporation. All rights reserved.
Page 1 of 1
DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
