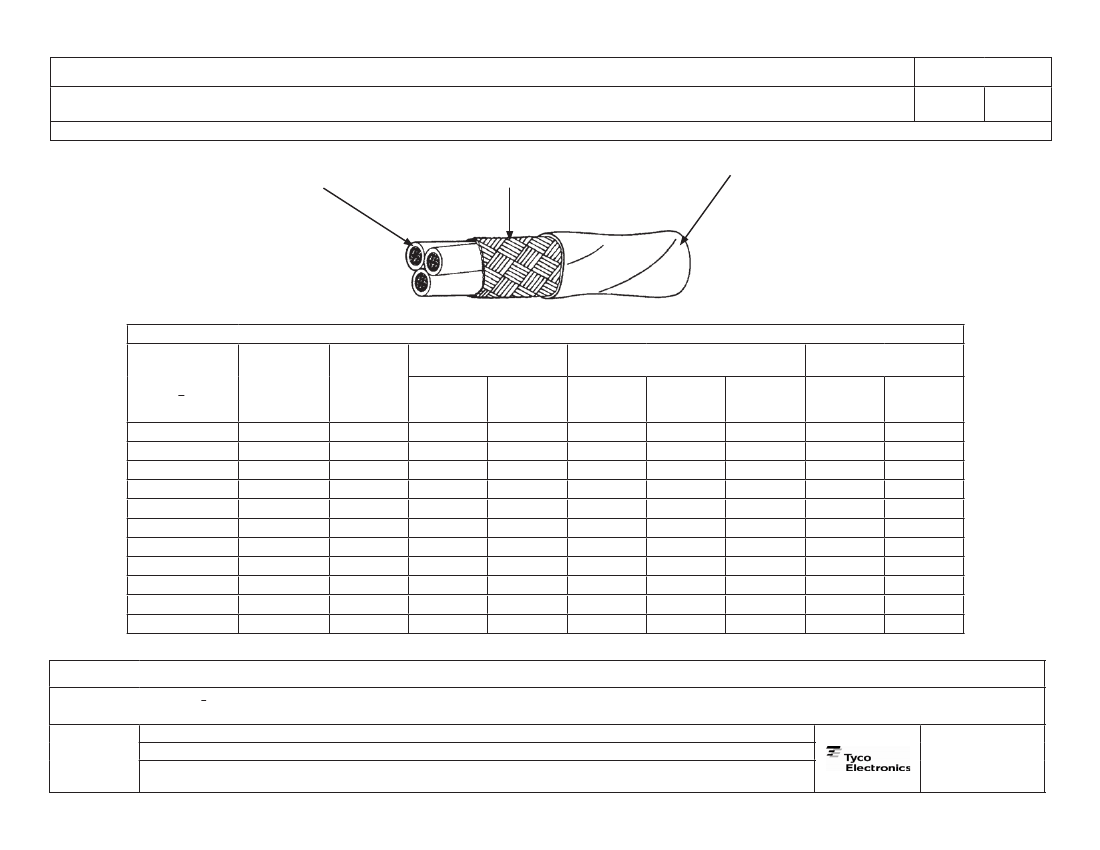

SPECIFICATION CONTROL DRAWING
TITLE
55PC1131
Date
THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55PC.
JACKET -
RADIATION-CROSSLINKED,
MODIFIED ETFE
3-16-10
Revision
D
COMPONENT WIRES - 55PC0111
SHIELD - TIN-COATED COPPER
CONSTRUCTION DETAILS
CONDUCTOR
SIZE
(AWG)
28
26
24
22
20
18
16
14
12
10
8
SHIELD
SIZE
(AWG)
38
38
38
38
38
38
38
38
38
36
34
JACKET THICKNESS
( in. )
LOWER
SPEC
LIMIT
.0050
.0055
.0055
.0060
.0060
.0060
.0060
.0060
.0060
.0065
.0070
TARGET
WALL
.0065
.0070
.0070
.0075
.0075
.0075
.0080
.0080
.0080
.0085
.0090
LOWER
SPEC
LIMIT
.081
.094
.104
.118
.135
.155
.172
.203
.244
.295
.426
OUTSIDE DIAMETER
( in. )
TARGET
VALUE
.087
.098
.108
.122
.139
.160
.177
.208
.249
.310
.449
UPPER
SPEC
LIMIT
.092
.102
.113
.127
.144
.165
.182
.214
.255
.325
.472
WEIGHT
( lbs/1000 ft. )
TARGET
VALUE
6.69
8.87
11.23
14.85
20.30
28.14
34.67
50.00
73.31
116.67
218.12
UPPER
SPEC
LIMIT
7.23
9.32
11.67
15.39
20.91
28.94
35.57
51.12
74.78
120.59
225.11
PART NUMBER
1/
55PC1131-28-*
55PC1131-26-*
55PC1131-24-*
55PC1131-22-*
55PC1131-20-*
55PC1131-18-*
55PC1131-16-*
55PC1131-14-*
55PC1131-12-*
55PC1131-10-*
55PC1131-8-*
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/
COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.)
OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
The TE logo, Tyco Electronics and Raychem are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2006-2010 Tyco Electronics Corporation. All rights reserved.
Page 1 of 2
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
SPECIFICATION CONTROL DRAWING
Revision
SCD
Page 2 of 2
D
55PC1131
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
CROSSLINK VERIFICATION: 300 ± 3°C for 1 hour
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 50% (minimum)
Tensile Strength, 5000 lbf/in² (minimum)
JACKET FLAWS:
Spark Test, 1000 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
SHIELD COVERAGE: 85% (minimum)
VOLTAGE WITHSTAND (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The "*" in the part numbers on page 1 shall be replaced by color code designators with
a slash separating the component wire colors and a dash separating the component
wire colors from the jacket color. Colors shown do not necessarily reflect the sequence
of manufacturing.
1/
Example: AWG 22, black, brown and red component wires; white jacket:
55PC1131-22-0/1/2-9
1/
See footer section on page 1
