B-151-11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> B-151-11

B-151-11: DescriptionB-151-11; CategoryThe connector; File Size108KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

B-151-11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B-151-11	-	-	View	Buy Now

B-151-11 Overview

B-151-11

B-151-11 Parametric

Parameter Name	Attribute value
Pre-installed leads	no
Expand inner diameter (minimum value)	11.5 mm [ .45 in ]
Recovered inner diameter (maximum value)	4.5 mm [ .175 in ]
Operating temperature (max) (°C)	125
Wire temperature (max) (°C)	85

Preview

Download Datasheet

View All

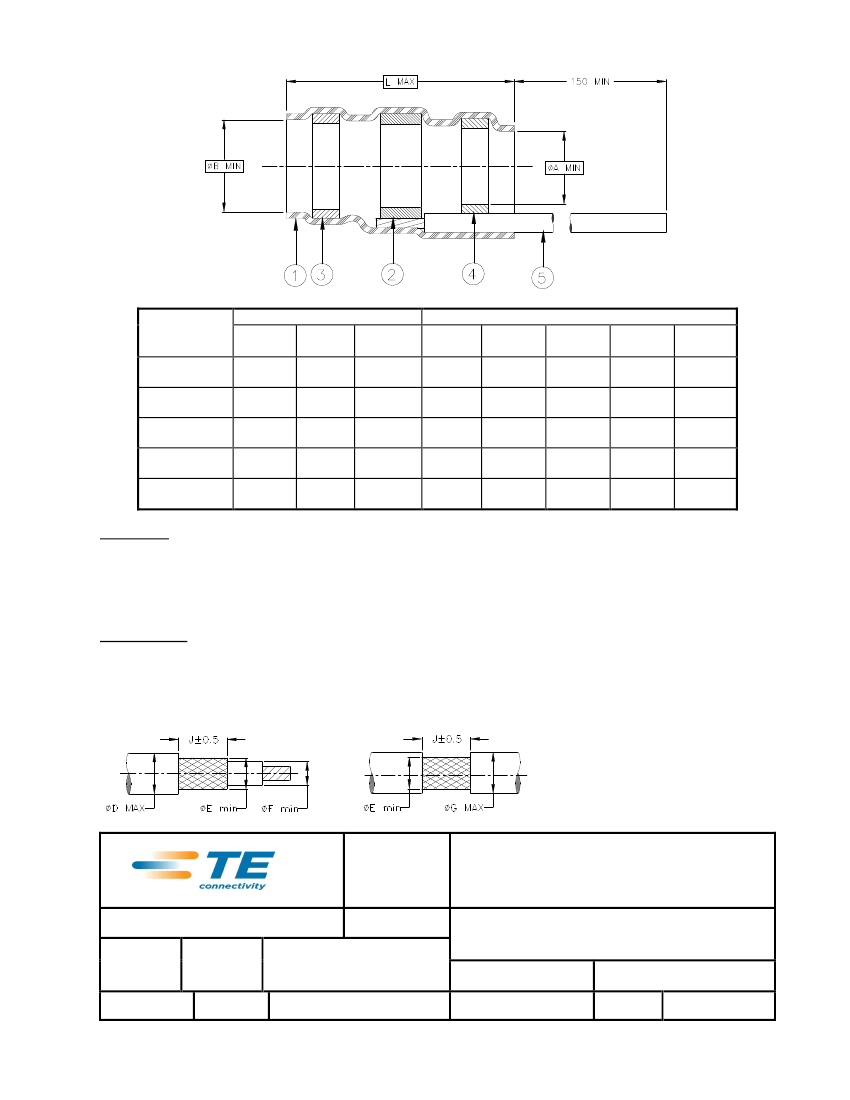

CUSTOMER DRAWING

Part Name

B-151-05

B-151-07

B-151-11

B-151-13

B-151-17

Component Dimensions

min

max

4.3

4.8

29.3

(.169)

(.189)

(1.154)

6.4

7.3

32.5

(.250)

(.290)

(1.280)

10.0

11.5

35.5

(.395)

(.450)

(1.395)

13.0

15.1

45.5

(.510)

(.595)

(1.790)

16.5

19.0

55.0

(.650)

(.750)

(2.165)

max

4.8

(.189)

7.3

(.290)

11.5

(.450)

15.1

(.595)

18.0

(.710)

min

2.0

(.079)

3.3

(.130)

4.5

(.175)

7.0

(.275)

9.0

(.355)

Cable Dimensions

min

max

1.5

4.3

(.059)

(.169)

2.8

6.4

(.110)

(.250)

4.0

10.0

(.155)

(.395)

6.5

13.0

(.255)

(.510)

8.0

16.0

(.315)

(.630)

J0.5

(J.020)

9.0

(.354)

11.0

(.435)

13.0

(.510)

17.0

(.670)

23.0

(.905)

MATERIAL

1. INSULATION SLEEVE: Radiation cross-linked modified polyolefin. Transparent clear.

2. SOLDER PREFORM WITH FLUX:

SOLDER: TYPE Cd18 per ANSI J-STD-006.

FLUX:

TYPE ROM1 per ANSI J-STD-004.

3. & 4. MELTABLE SEALING RINGS: Thermally stabilized thermoplastic.

5. GROUND LEAD: RAYCHEM 100G0111-1.00-9, stranded tin plated copper. Color: white.

APPLICATION

1. These controlled soldering devices are designed for termination of a bare or tin plated copper shield on a cable having an insulation

rated for at least 85C.

2. Temperature range: -55C to +125C.

3. For installation procedure and application equipment consult RPIP-688-01.

For best results, prepare the cable as shown:

TE Connectivity

300 Constitution Dr

Menlo Park, CA

94025, U.S.A.

TITLE:

SOLDERSLEEVE LOW-FIRE-HAZARD

WITH PRE-INSTALLED LEAD

DOCUMENT NO.:

Unless otherwise specified dimensions are in millimeters.

[Inches dimensions are shown in brackets]

TOLERANCES:

0.00 N/A

0.0 N/A

0 N/A

REVISED BY:

ANGLES: N/A

ROUGHNESS

IN MICRON

CAGE CODE:

Raychem

Devices

B-151-XX

REV:

DATE:

TE Connectivity reserves the right to amend

this drawing at any time. Users should

evaluate the suitability of the product for

their application.

ECO NUMBER:

SCALE:

SIZE:

15-Apr-11

SHEET:

HMR

06090

ECO-11-005139

If this document is printed it becomes uncontrolled. Check for the latest revision.

NTS

1 of 1

Print Date:4/15/2011

B-151-11 Related Products

	B-151-11	B-151-17
Description	B-151-11	B-151-17
Pre-installed leads	no	no
Expand inner diameter (minimum value)	11.5 mm [ .45 in ]	18 mm [ .71 in ]
Recovered inner diameter (maximum value)	4.5 mm [ .175 in ]	9 mm [ .355 in ]
Operating temperature (max) (°C)	125	125
Wire temperature (max) (°C)	85	85
