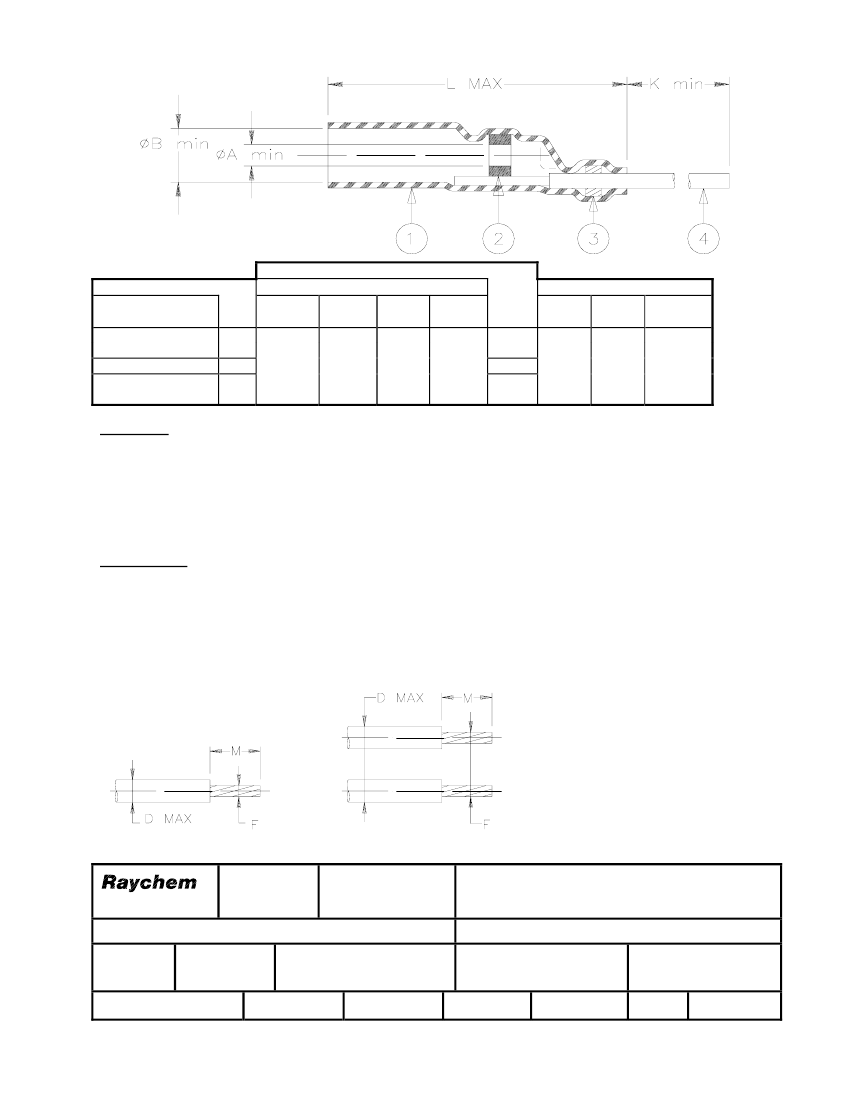

SPECIFICATION CONTROL DRAWING
Product Revisions
Product Names
L
max
F
F
G
17.5
(0.690)
“XY” Wire Gauge (AWG)
Product Dimensions
A
B
K
min
min
min
1.4
(0.055)
2.8
(0.110)
150
(5.900)
22
24
26
B-801-62
B-801-64
B-801-66
Cable Dimensions
D
F
M±0.5
(M±0.02)
0.6
0.3
(0.025) (0.015)
5
to
to
(0.200)
2.4
1.3
(0.095) (0.050)
MATERIAL
1. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue.
2. SOLDER PREFORM WITH FLUX:
SOLDER: TYPE Sn63 per ANSI J-STD-006.
FLUX:
TYPE ROL1 per ANSI J-STD-004.
3. MELTABLE RING: Thermally stabilized thermoplastic. Color: red.
4. CONDUCTOR LEAD: Raychem 55A0111-XY in accordance with MIL-W-22759/32 AWGXY (see table) stranded tin plated
copper wire. Color: white.
APPLICATION
1. These controlled soldering devices are designed to terminate with a stranded extension lead:
-A metallic pin or
-the primary of a coaxial cable or
-one or several tin or silver plated wire(s), having an insulation rated for at least +125°C.
2. Temperature range: -55°C to +150°C.
3. Install using Raychem-approved convection or infrared tools in accordance with Raychem installation procedure RPIP-825-00.
For best results, prepare the wire(s) as shown:
THERMOFIT
DEVICES
Raychem Corporation
300 Constitution Drive
Menlo Park, CA 94025
USA
TITLE:
SOLDERSLEEVE* DEVICE EXTENSION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE IN BETWEEN BRACKETS.
Raychem reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should
0.00 N/A
evaluate the suitability of the product for
ROUGHNESS IN
0.0 N/A
their application.
MICRON
0 N/A
DOCUMENT NO.:
DCR NUMBER:
B-801-6X
REPLACES:
D981701
SCALE:
NONE
SIZE:
A
B8016X
SHEET:
1 of 1
DRAWN BY:
DATE:
REV.:
DOC ISSUE:
R. MAPALO
16-Oct-98
SEE TABLE
3
If this document is printed it becomes uncontrolled. Check for the latest revision.
