55A3111-24-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 55A3111-24-9

55A3111-24-9: Description55A3111-24-9; CategoryWire/cable; File Size85KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55A3111-24-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55A3111-24-9	-	-	View	Buy Now

55A3111-24-9 Overview

55A3111-24-9

55A3111-24-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Overall outer diameter	1.37 mm [ .054 in ]

Preview

Download Datasheet

View All

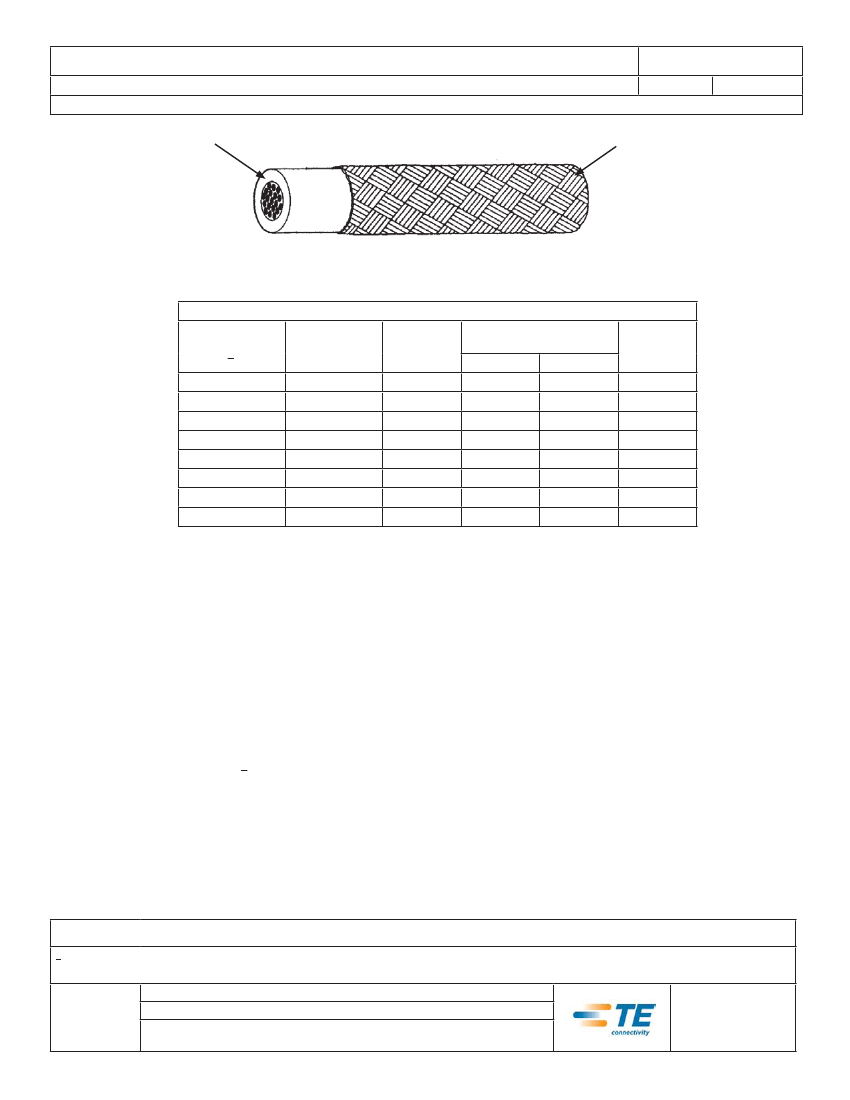

SPECIFICATION CONTROL DRAWING

TITLE

55A3111

Date

ONE CONDUCTOR CABLE, SHIELDED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55A.

COMPONENT WIRE - 55A0111

11-14-11

Revision

SHIELD - TIN-COATED COPPER

CABLE CONSTRUCTION DETAILS

PART NUMBER

55A3111-26-*

55A3111-24-*

55A3111-22-*

55A3111-20-*

55A3111-18-*

55A3111-16-*

55A3111-14-*

55A3111-12-*

CONDUCTOR

SIZE

(AWG)

SHIELD

SIZE

(AWG)

OUTSIDE DIAMETER

(inches)

NOMINAL

.049

.054

.060

.067

.077

.085

.102

.120

MAXIMUM

.052

.057

.063

.070

.080

.088

.106

.124

MAXIMUM

WEIGHT

(lbs/1000 ft.)

3.4

4.3

5.4

7.2

10.0

12.2

17.7

25.3

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

TEMPERATURE RATING: 150°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

SHIELD COVERAGE: 85% (minimum)

PART NUMBER:

The “*” in the part numbers above shall be replaced by a color code designator.

Example: AWG 20, white component wire: 55A3111-20-9

NOTE: Nominal values are for information only.

Nominal values are not requirements.

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND

SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55A3111-24-9 Related Products

	55A3111-24-9	55A3111-20-9	55A3111-22-9
Description	55A3111-24-9	55A3111-20-9	55A3111-22-9
Is it Rohs certified?	-	conform to	conform to
Reach Compliance Code	-	compliant	compliant
Factory Lead Time	-	7 weeks 2 days	7 weeks 2 days
Connector bracket type	-	WIRE AND CABLE	WIRE AND CABLE
Base Number Matches	-	1	1
