ATTINY2313 Overview

8-BIT, FLASH, 10 MHz, RISC MICROCONTROLLER, PDSO20

ATTINY2313 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	2.7 V
Rated supply voltage	3 V
External data bus width	0.0
Number of input and output buses	18
Line speed	10 MHz
Processing package description	0.300 INCH, Green, Plastic, MS-013 AC, SOIC-20
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	MATTE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Address bus width	0.0
Number of digits	8
Maximum FCLK clock frequency	10 MHz
Microprocessor type	Reduced Instruction Set Microcontroller
PWM channel	Yes
ROM programming	FLASH

Preview

Download Datasheet

View All

Features

•

Utilizes the AVR

RISC Architecture

•

AVR – High-performance and Low-power RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 20 MIPS Throughput at 20 MHz

Data and Non-volatile Program and Data Memories

– 2K Bytes of In-System Self Programmable Flash

Endurance 10,000 Write/Erase Cycles

– 128 Bytes In-System Programmable EEPROM

Endurance: 100,000 Write/Erase Cycles

– 128 Bytes Internal SRAM

– Programming Lock for Flash Program and EEPROM Data Security

Peripheral Features

– One 8-bit Timer/Counter with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare and Capture Modes

– Four PWM Channels

– On-chip Analog Comparator

– Programmable Watchdog Timer with On-chip Oscillator

– USI – Universal Serial Interface

– Full Duplex USART

Special Microcontroller Features

– debugWIRE On-chip Debugging

– In-System Programmable via SPI Port

– External and Internal Interrupt Sources

– Low-power Idle, Power-down, and Standby Modes

– Enhanced Power-on Reset Circuit

– Programmable Brown-out Detection Circuit

– Internal Calibrated Oscillator

I/O and Packages

– 18 Programmable I/O Lines

– 20-pin PDIP, 20-pin SOIC, 20-pad QFN/MLF

Operating Voltages

– 1.8 - 5.5V (ATtiny2313V)

– 2.7 - 5.5V (ATtiny2313)

Speed Grades

– ATtiny2313V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V

– ATtiny2313: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

Typical Power Consumption

– Active Mode

1 MHz, 1.8V: 230 µA

32 kHz, 1.8V: 20 µA (including oscillator)

– Power-down Mode

< 0.1 µA at 1.8V

•

8-bit

Microcontroller

with 2K Bytes

In-System

Programmable

Flash

ATtiny2313/V

Preliminary

Summary

•

Rev. 2543IS–AVR–04/06

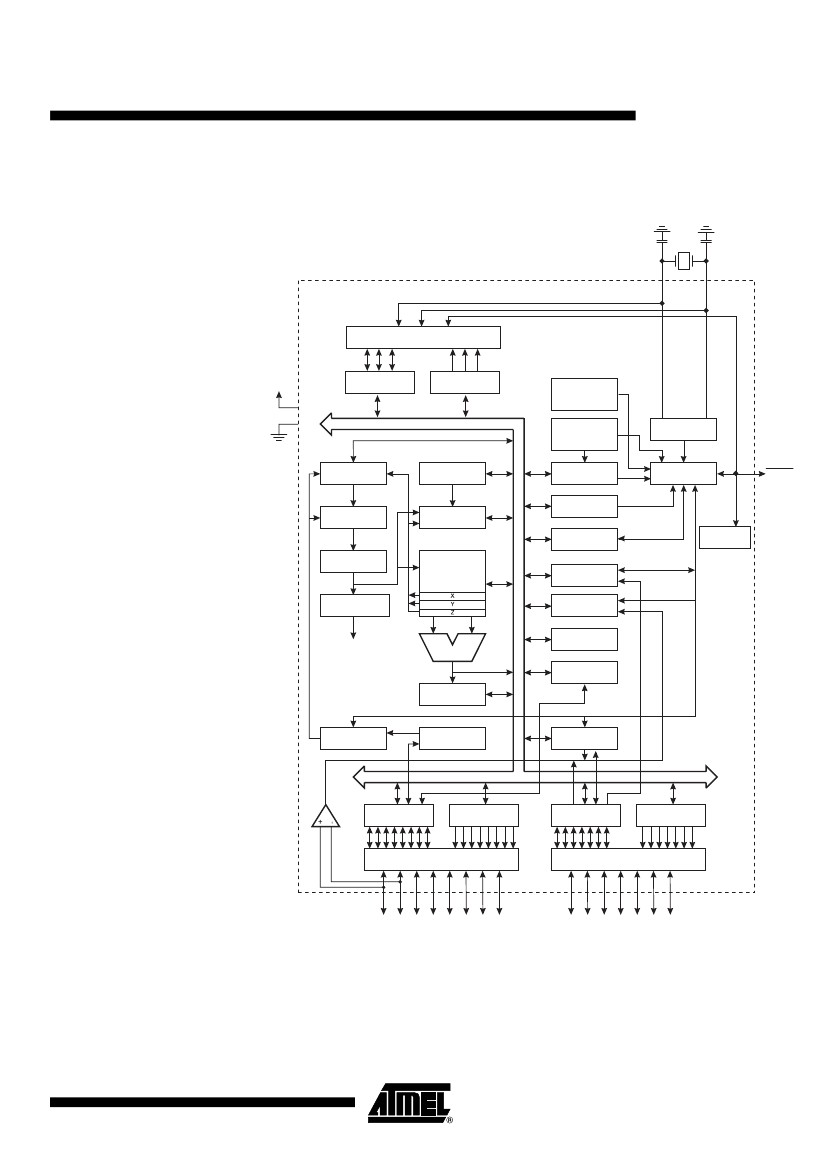

The AVR core combines a rich instruction set with 32 general purpose working registers.

All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing

two independent registers to be accessed in one single instruction executed in one clock

cycle. The resulting architecture is more code efficient while achieving throughputs up to

ten times faster than conventional CISC microcontrollers.

The ATtiny2313 provides the following features: 2K bytes of In-System Programmable

Flash, 128 bytes EEPROM, 128 bytes SRAM, 18 general purpose I/O lines, 32 general

purpose working registers, a single-wire Interface for On-chip Debugging, two flexible

Timer/Counters with compare modes, internal and external interrupts, a serial program-

mable USART, Universal Serial Interface with Start Condition Detector, a programmable

Watchdog Timer with internal Oscillator, and three software selectable power saving

modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, and

interrupt system to continue functioning. The Power-down mode saves the register con-

tents but freezes the Oscillator, disabling all other chip functions until the next interrupt

or hardware reset. In Standby mode, the crystal/resonator Oscillator is running while the

rest of the device is sleeping. This allows very fast start-up combined with low-power

consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology.

The On-chip ISP Flash allows the program memory to be reprogrammed In-System

through an SPI serial interface, or by a conventional non-volatile memory programmer.

By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a mono-

lithic chip, the Atmel ATtiny2313 is a powerful microcontroller that provides a highly

flexible and cost effective solution to many embedded control applications.

The ATtiny2313 AVR is supported with a full suite of program and system development

tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Cir-

cuit Emulators, and Evaluation kits.

ATtiny2313/V

2543IS–AVR–04/06

ATtiny2313/V

Pin Descriptions

VCC

GND

Port A (PA2..PA0)

Digital supply voltage.

Ground.

Port A is a 3-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port A output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port A pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port A pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port A also serves the functions of various special features of the ATtiny2313 as listed

on page 53.

Port B (PB7..PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port B output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port B pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port B also serves the functions of various special features of the ATtiny2313 as listed

on page 53.

Port D (PD6..PD0)

Port D is a 7-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port D output buffers have symmetrical drive characteristics with both high sink

and source capability. As inputs, Port D pins that are externally pulled low will source

current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset

condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATtiny2313 as listed

on page 56.

RESET

Reset input. A low level on this pin for longer than the minimum pulse length will gener-

ate a reset, even if the clock is not running. The minimum pulse length is given in Table

15 on page 34. Shorter pulses are not guaranteed to generate a reset. The Reset Input

is an alternate function for PA2 and dW.

Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

XTAL1 is an alternate function for PA0.

Output from the inverting Oscillator amplifier. XTAL2 is an alternate function for PA1.

A comprehensive set of development tools, application notes and datasheets are avail-

able for downloadon http://www.atmel.com/avr.

XTAL1

XTAL2

Resources

2543IS–AVR–04/06
