FMDD-P3B392H: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250V, 0.0039uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size186KB，11 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

FMDD-P3B392H Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1250V, 0.0039uF, THROUGH HOLE MOUNT, RADIAL LEADED

FMDD-P3B392H Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0039 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Manufacturer's serial number	FMDD-P
Installation features	THROUGH HOLE MOUNT
negative tolerance	3%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	3%
Rated (DC) voltage (URdc)	1250 V
surface mount	NO
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

PLASTIC FILM CAPACITORS

FMDD-P Series

•Resin Dipped, Metalized Polypropylene Film Capacitors

• Metalized polypropylene film is used as a dielectric and

forms a non-inductive winding for low loss.

• Excellent temperature and frequency characteristics.

• Excellent dielectric pulse voltage characteristics.

• Exterior coating is flame retardant epoxy resin.

The FMDD-P Series are resin dipped, metalized

polypropylene film capacitors that are suitable for high

frequency and high voltage circuits. Application

examples include TV horizontal resonance, inverter

lighting ballast circuits, resonance type SW power

supplies, etc.

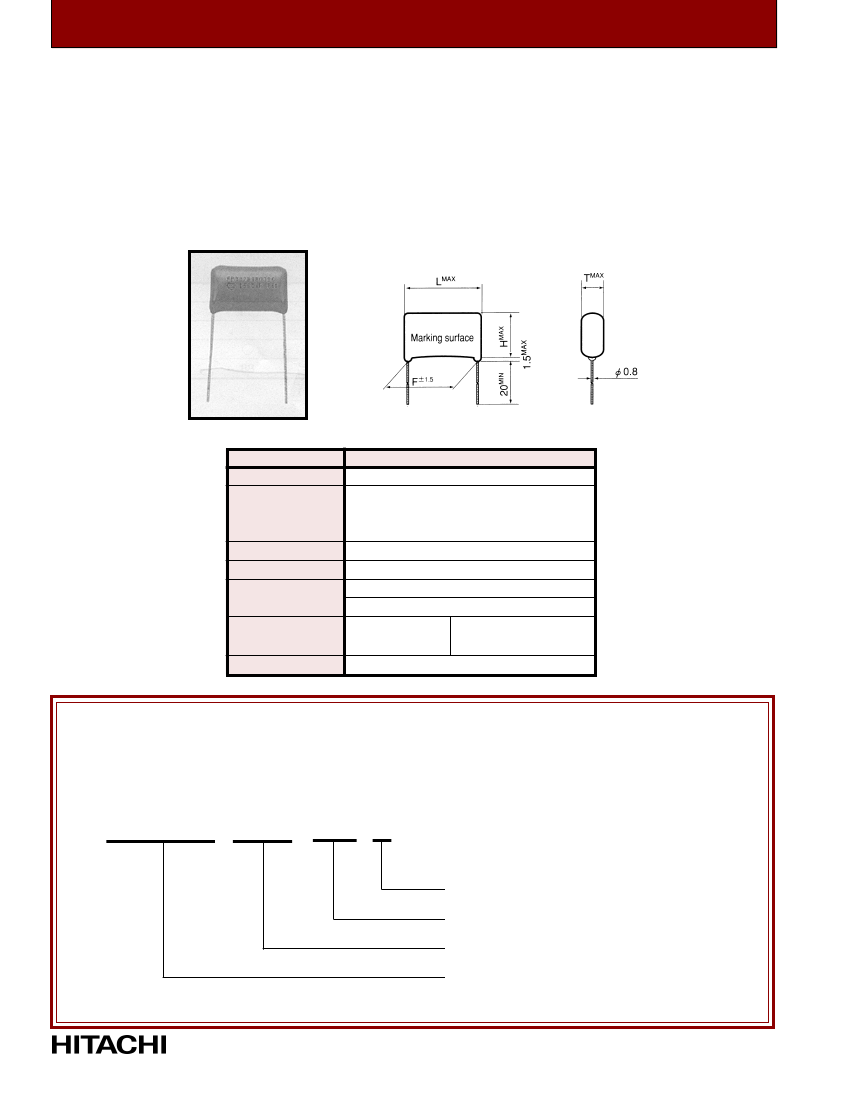

Drawings and dimensions

–40°C to +105°C (with derating over 85°C)

1000V. DC (800Vp-p), 1250V. DC (1000Vp-p),

Rated voltage

1600V. DC (1200Vp-p), 1800V. DC (1500Vp-p),

2000V. DC (1800Vp-p)

Capacitance Tolerance

±3%

(H),

±5%

(J)

Dielectric dissipation factor Less than 0.1% (20°C, 1KHz)

Withstanding voltage Between terminals Rated volt X 1.5, 1min.

Between terminal & outside coating Rated volt x 2.0, 1 to 5 sec.

Insulation resistance

Between terminals 30,000MΩ or more

(500V)

Others

Subject to EIAJ RC 2347 and JIS C 5102

Items

Temperature range

Specifications

Product Numbering System for FMDD-P Series.

Example: FMDD-P Series, 1000V.DC, 0.01µF

±3%

FMDD-P

103 H

Capacitance Tolerance code H=

±3%

Capacitance code

Rated Voltage

Series Name

AIC

132
