55A1832-22-9/93/96-9 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> 55A1832-22-9/93/96-9

Preview

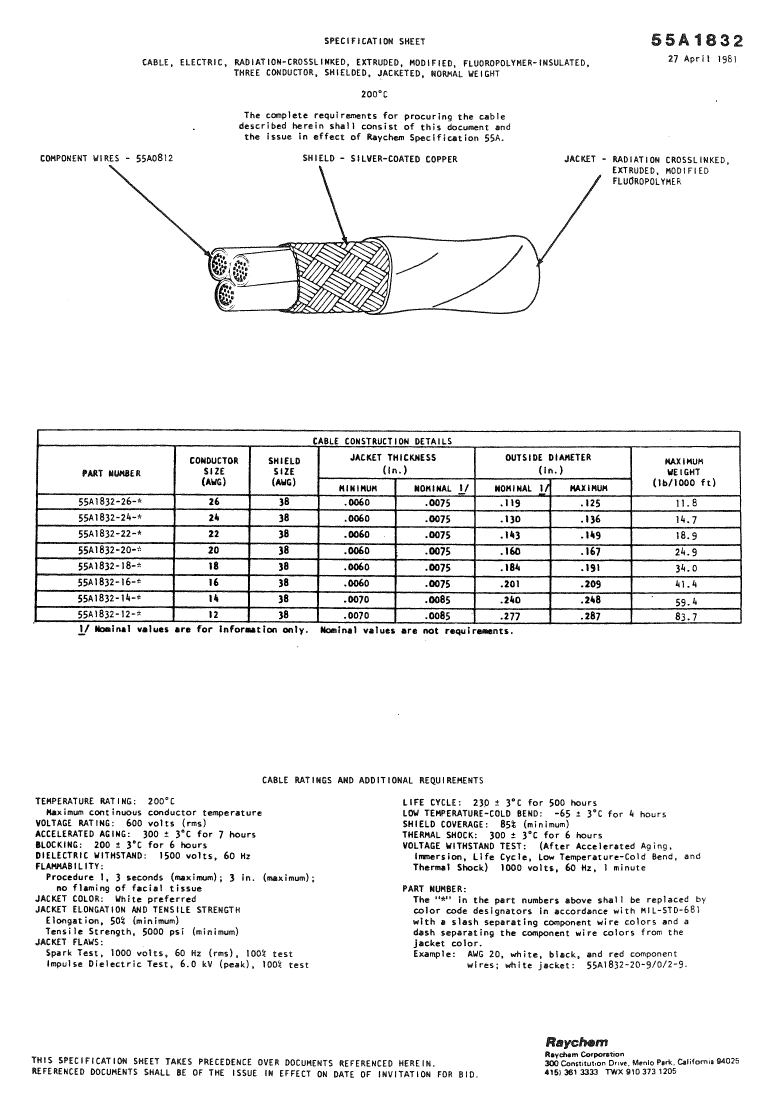

55A1832-22-9/93/96-9: Description55A1832-22-9/93/96-9; CategoryWire/cable; File Size84KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55A1832-22-9/93/96-9 Overview

55A1832-22-9/93/96-9

55A1832-22-9/93/96-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
shield	yes
Cable type	sheath, winding braid
Product Categories	Cables - High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	3
Conductor configuration	Strand three
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Shield diameter	3.25 mm [ .128 in ]
Insulating sleeve color	White
Wire color	white, white with orange stripes, white with blue stripes
conductor material	silver coated copper, silver coated copper
Conductor diameter	.76 mm [ .03 in ]
Stock size (AWG)	34
Overall outer diameter	3.63 mm [ .143 in ]
Wire size (AWG)	22
Wire size (mm²)	.326
Wire diameter	1.27 mm [ .05 in ]
Operating temperature range (°C)	-65 – 200
Wire source	USA

Preview

Download Datasheet

View All

55A1832-22-9/93/96-9 Related Products

	55A1832-22-9/93/96-9	55A1832-24-6/63/69-6	55A1832-22-53/56/59-5	55A1832-20-23/26/29-2
Description	55A1832-22-9/93/96-9	55A1832-24-6/63/69-6	55A1832-22-53/56/59-5	55A1832-20-23/26/29-2
Product Categories	Cables - High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of conductors	3	3	3	3
Rated voltage (V)	600	600	600	600
shielding material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Insulating sleeve color	White	blue	green	red
Wire color	white, white with orange stripes, white with blue stripes	blue, blue with orange stripes, blue with white stripes	green with orange stripes, green with blue stripes, green with white stripes	Red with orange stripes, red with blue stripes, red with white stripes
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Overall outer diameter	3.63 mm [ .143 in ]	3.3 mm [ .1299 in ]	3.63 mm [ .143 in ]	4.06 mm [ .16 in ]
Wire size (AWG)	22	24	22	20
Wire diameter	1.27 mm [ .05 in ]	1.14 mm [ .0448 in ]	1.27 mm [ .05 in ]	1.47 mm [ .058 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200
Wire source	USA	USA	USA	USA
Cable type	sheath, winding braid	Sheathed shield winding braid	Sheathed shield winding braid	Sheathed shield winding braid
Shield size (AWG)	-	38	38	38
