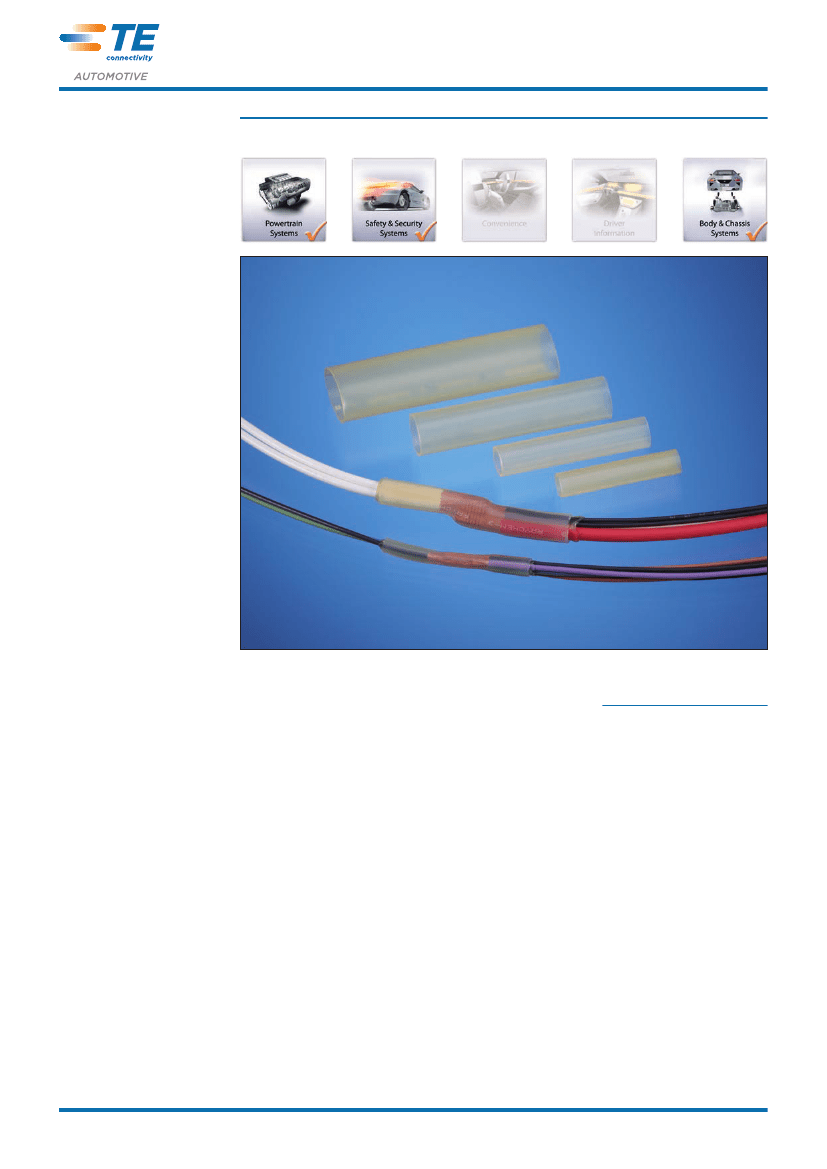

RBK-VWS-125 Tubing
Clear product for
sealing and protection of
inline wire splices.
RBK-VWS-125 Tubing
Dual-wall, heat-shrinkable tubing
designed to provide environmen-
tal sealing of an electrical splice
in an automotive environment.
Moisture may enter a splice
directly or indirectly via capillary
action between individual wires,
thus causing corrosion. This
effect is accelerated by variations
in temperature.
Benefits
The tubing is centred over the
splice area and during heating
the adhesive melts and is
‘squeezed’ around where the
wires are crimped or welded and
between the conductors by the
shrinking action of the sleeve.
The installed product provides
low profile mechanical protection
against flexing, abrasion and
cut-through as well as electrical
insulation. There are four sizes
to cover the range of splice
profiles.
n
Excellent environmental seal
n
Mechanical protection
against flexing, abrasion and
cut-through
n
Small cross-sectional profile
n
Single component solution –
to seal, protect and insulate
most in-line and stub splices
n
Complete environmental and
moisture sealing – for up to
seven wires per side
n
Tubing and adhesive
combination – for superior
strain relief
n
Clear tubing allowing
inspection of wire splices
n
Application equipment and
installation procedures – to
meet most harness production
processes
n
Meets most applicable
worldwide automotive OEM
splice sealing specifications
n
RoHS/ELV compliant
26
All specifications subject to change. Consult TE Connectivity for latest specifications.
Protection Products
Harness Design
Catalog 1654296-3
Revised 10-2012
Clear, Dual-Wall, Moisture Proof, Heat-Shrinkable Tubing to Protect Electrical Splices
Product Features
RBK-VWS-125 Tubing
n
Continuous operating
temperature from -40°C up
to +125°C (3000 hrs)
n
4:1 shrink ratio
D
H*
W
d
W = Jacket only
d = Inner diameter of jacket only
H
Q
= Inner diameter of adhesive liner
L
Product Dimensions
Inside Diameter
Size
NR1
NR2
NR3
NR4
D (min)
Expanded
as
Supplied
5.70
8.00
10.80
17.78
H (max)
Q
1
Recovered
after
Heating
1.27
1.65
2.40
4.45
d (max)
Recovered
Jacket after
Heating
2.52
3.01
4.55
7.40*
2
Wall Thickness (mm)
W (min)
Recovered
Jacket after
Heating
0.80
1.06
1.16
1.04
W+
Adhesive
Liner
(min)
1.42
1.78
2.14
2.41
Length
Q
3
)
L
(nom)
50
50
65
75
Ordering Description
RBK-VWS-125-NR1-X
RBK-VWS-125-NR2-X
RBK-VWS-125-NR3-X
RBK-VWS-125-NR4-X
Refer to the Installation Guidelines document before selecting size (PIP-004).
The wall thickness of the tubing will be less than specified if recovery is restricted during shrinkage.
Q
1
)
Q
2
)
Nominal values for reference only.
Estimate.
Q
3
) Other lengths are available subject to special order.
Ordering Information
Standard Colour
Installation
Clear (X)
The product may be installed using a TE Automotive RBK-ILS Processor or other
recommended application equipment.
Consult your local TE Automotive office for more information.
Refer to PIP-004
Specify product name, size and colour (for example RBK-VWS-125-NR)
Series
RBK-VWS-125
Size 1–3
+125 °C
–40 °C
Size Selection
Ordering Description
Specifications/Approvals
TE
RK-6640
RT-1113
Operating
Temperature Range
Size 4
Shrinking Ratio
4:1
Shrink
Temperature
+135 °C
Fluid Resistant
All specifications subject to change. Consult TE Connectivity for latest specifications.
27
