Printview: Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating; 2 rows; with coding fingers to be cut off; CAGE CLAMP®CONNECTION - Item No.:
713-1105/037-047
.
Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm /
0.138 in; 100% protected against mismating; 2 rows; with coding
fingers to be cut off; CAGE CLAMP®CONNECTION
Item No.: 713-1105/037-047
.
Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; 2
rows; with coding fingers to be cut off; CAGE CLAMP®CONNECTION
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
713-1105/037-047
4050821177050
1
50
Item description:Universal connection for all conductor typesUnique, compact, double-row connector system for
conductor cross sections up to 1.5mm2 High-density, “wire-to-board” connectors for use in very confined
spacesCentered strain relief plate anchors conductors, while acting as convenient connection and disconnection
handle. It also provides easy access to operating slots – even when wired.With coding fingers and 100% protected
against mismating
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
10
3.5 mm (0.138 in %)
10
10
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating; 2 rows; with coding fingers to be cut off; CAGE CLAMP®CONNECTION - Item No.:
713-1105/037-047
Technical data
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
black
IEC/EN 60664-1
80 [V]
2.5 [kV]
160 [V]
2.5 [kV]
250 [V]
2.5 [kV]
10 [A]
1
2
CAGE CLAMP®
1
Betätigungswerkzeug
0.08 … 1.5 mm² / 28 … 16 AWG
0.08 … 1.5 mm² / 28 … 16 AWG
0.25 … 1 mm² / …
0.25 … 1 mm² / …
6 … 7 mm / 0.24 … 0.28 in
II
Glass-fiber-reinforced polyamide (PA66 GF)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
0.108 [MJ]
6.27 [g]
26 mm / 1.024 in
18.8 mm / 0.74 in
16 mm / 0.63 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating; 2 rows; with coding fingers to be cut off; CAGE CLAMP®CONNECTION - Item No.:
713-1105/037-047

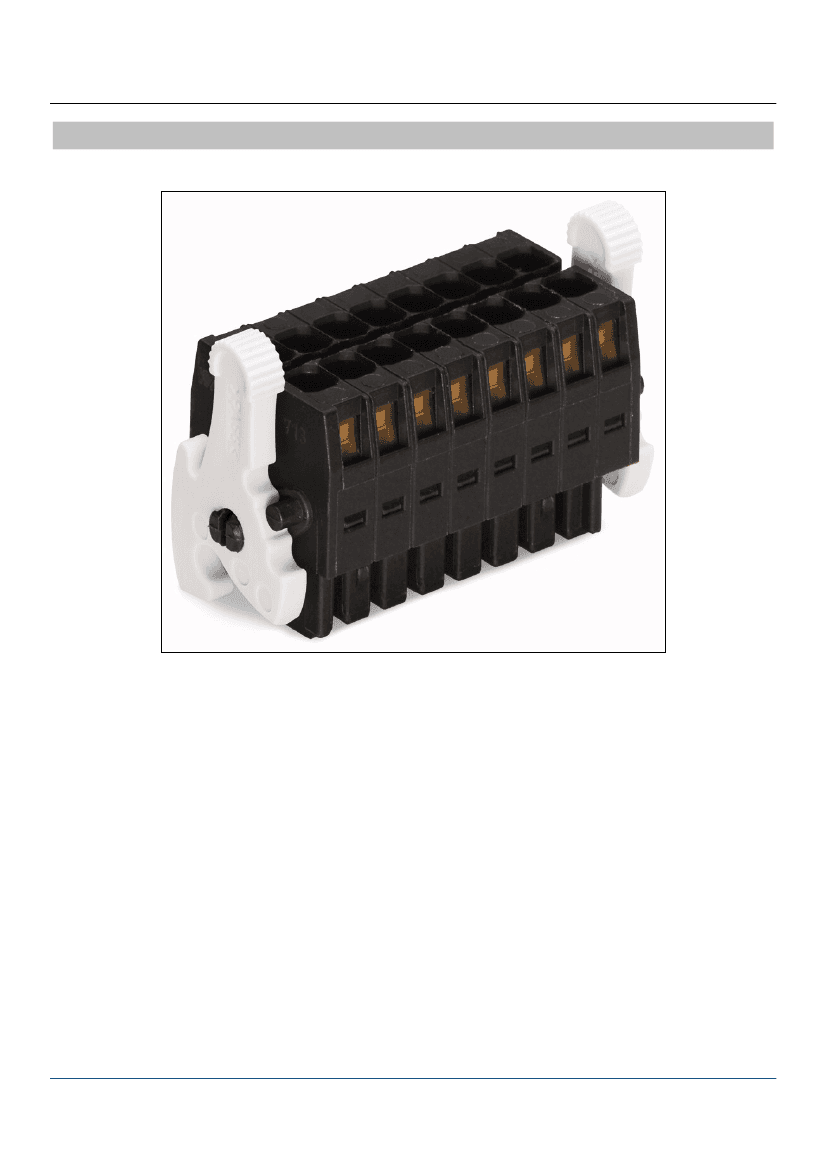

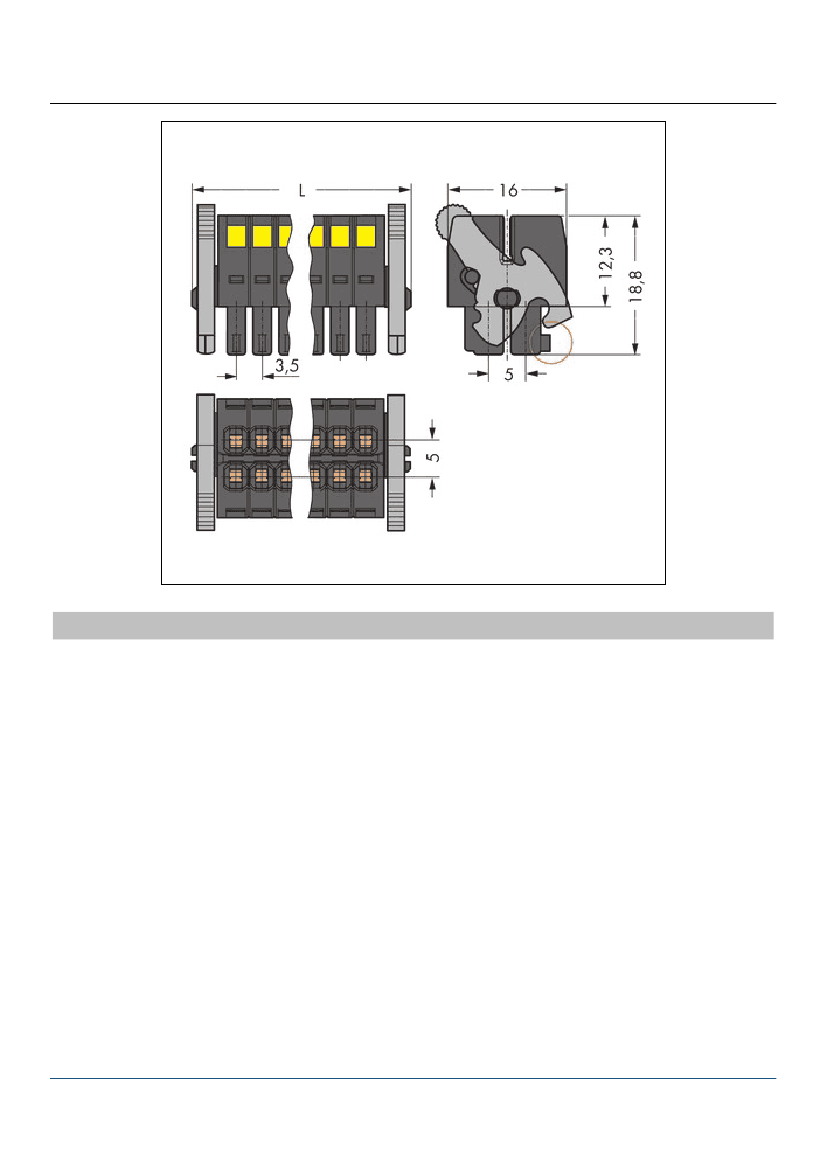

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with ejectors; 5x2-pole; Pin spacing 3.5 mm / 0.138 in; 100% protected
against mismating; 2 rows; with coding fingers to be cut off; CAGE CLAMP®CONNECTION - Item No.:
713-1105/037-047
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
