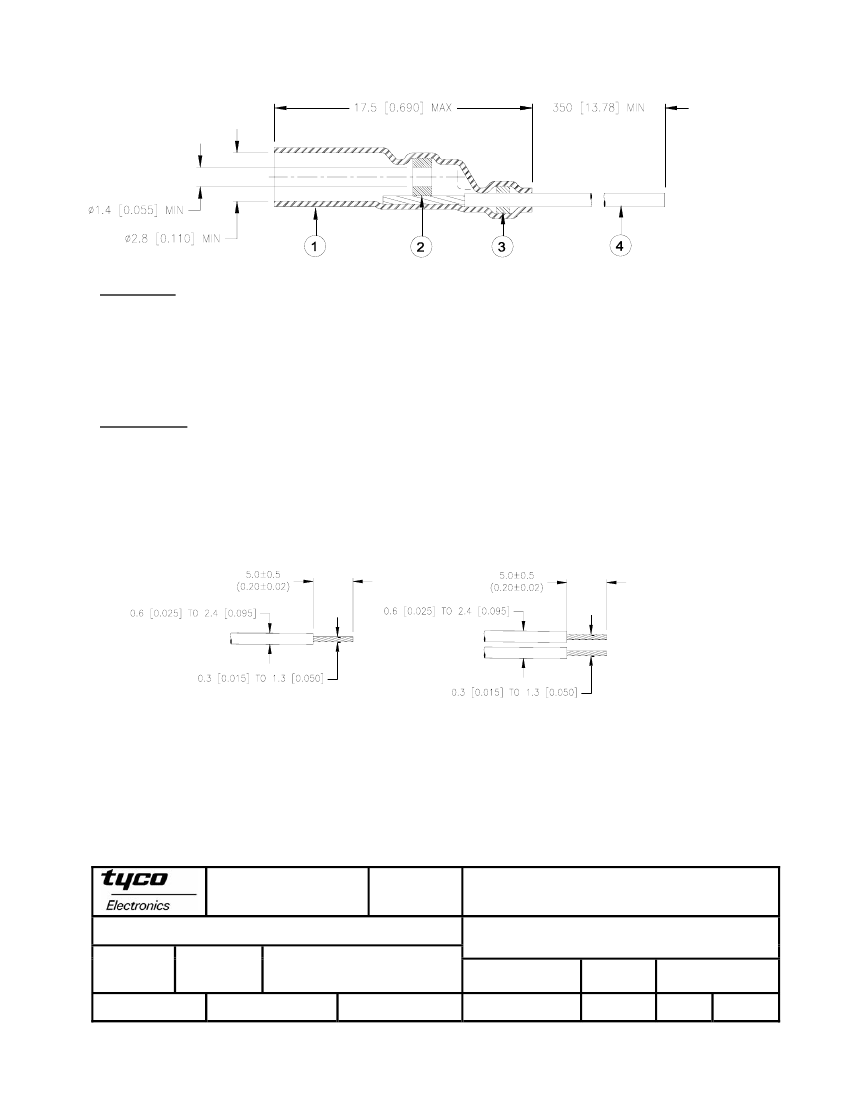

SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. SOLDER PREFORM WITH FLUX:
SOLDER: TYPE Sn63 per ANSI/J-STD-006.
FLUX:
TYPE ROL1 per ANSI/J-STD-004.
3. MELTABLE RING: Thermally stabilized thermoplastic. Color: red.
4. CONDUCTOR LEAD: Raychem 55A0111-24 in accordance with MIL-W-22759/32 AWG24 stranded tin-plated
copper wire. Color: white.
APPLICATION
1. This controlled soldering device is designed to terminate with a stranded extension lead:
-A metallic pin or,
-the primary of a coaxial cable or,
-one or several tin or silver plated wire(s), having an insulation rated for at least +125°C.
2. Temperature range: -55°C to +150°C.
3. Install using Raychem-approved convection or infrared tools or equivalent.
For best results, prepare the wire(s) as shown:
Tyco Electronics Corporation
300 Constitution Drive,
Menlo Park, CA. 94025, U.S.A.
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
PREPARED BY:
TITLE:
Raychem
SOLDERSLEEVE DEVICE EXTENSION
DOCUMENT NO.:
B-801-64-350
PROD. REV.:
DOC. ISSUE:
DATE:
Tyco Electronics reserves the right to amend
this drawing at any time. Users should
evaluate the suitability of the product for their
ROUGHNESS IN
application.
MICRON
DCR NUMBER:
REPLACES:
ANGLES: N/A
A
CAGE CODE :
1
SCALE:
SIZE:
3-Jun-05
SHEET:
mforonda
D050213
---
© 2005 Tyco Electronics Corporation. All rights reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
06090
---
A
1 of 1
