RNF-100-1/4-X-STK datasheet, PDF

Datasheet> All Categories > accessories> RNF-100-1/4-X-STK

RNF-100-1/4-X-STK: DescriptionRNF-100-1/4-X-STK; Categoryaccessories; File Size128KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

RNF-100-1/4-X-STK Overview

RNF-100-1/4-X-STK

RNF-100-1/4-X-STK Parametric

Parameter Name	Attribute value
Wall type	single
Product Series	RNF-100
Voltage (max) (kV)	.6
color	Clear
Shrinkage	2:1
Material	Irradiated modified polyolefin
flexibility	Flexible
Fluid type	water, gasoline, lubricating oil, hydraulic oil
Expand inner diameter (minimum value)	6.4 mm [ .252 in ]
Recovered inner diameter (maximum value)	3.2 mm [ .126 in ]
Recovered wall thickness (nominal)	.65 mm [ .026 in ]
cutting length	1220 mm [ 48.031 in ]
Recovered wall thickness (tolerance)	.3 mm [ .012 in ]
Shrinkage temperature (min) (°C)	95
Resistant	tension, friction, mechanical damage, liquid
Operating temperature range (°C)	-55 – 135
Flammability	Non-flammable
Shrinkage temperature (°C)	121
fluid resistance	splash proof
Applicable area	global, global
Encapsulation method	Paste
Product source	Czech Republic
Low outgassing	no

Preview

Download Datasheet

View All

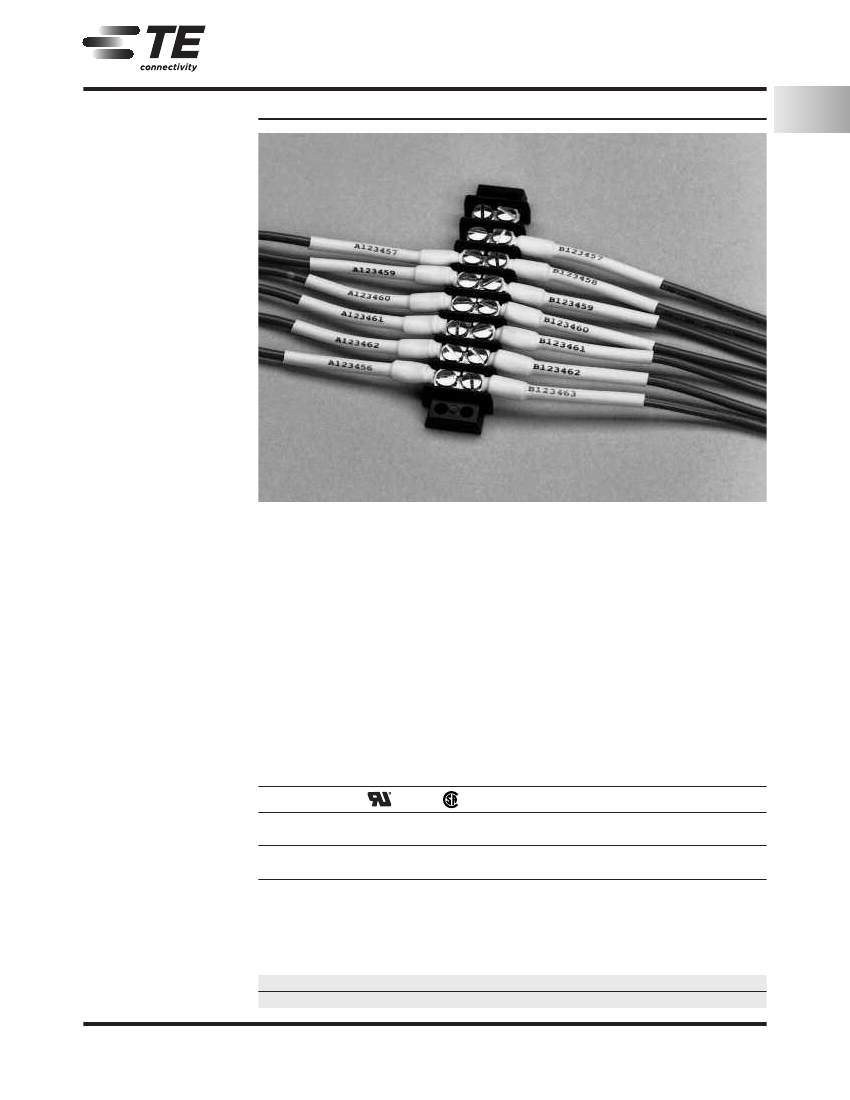

RAYCHEM Tubing Products

RNF-100

Flexible, Flame-Retardant,

General Purpose,

Polyolefin Tubing

Product Facts

2:1 shrink ratio

Superior abrasion and

solvent resistance when

compared with that of many

flexible, general purpose

polyolefin tubings

Excellent physical,

chemical, and electrical

properties that meet or

exceed industrial and

military standards for highly

reliable, general purpose

tubing

Flexible; conforms to

irregular shapes

Flame-retardant (colors

only)

Wide range of sizes and

colors

RoHS compliant

Heat-shrinkable Tubing

Applications

Designed to provide superior

mechanical (abrasion, cut-

through, and strain relief),

thermal, and fluid-resistance

performance in demanding

environments. Widely used

to provide insulation and

strain relief of wire termina-

tions and connections. Used

for jacketing wire bundles

and light-duty harnesses

where superior abrasion

resistance is a plus. Also

used to identify and color-

code electrical connections

and wire bundles.

Installation

Minimum shrink

temperature: 95°C [203°F]

Minimum full recovery

temperature: 121°C [250°F]

Operating Temperature Range

-55°C to 135°C

[-67°F to 275°F]

Specifications/Approvals

Series

RNF-100 Type 1

(colors)

RNF-100 Type 2

(clear)

E35586

600 V, 125°C

CSA

Military

AMS-DTL-23053/5*,

Class 1

Def. Stan. 59-97 Type 2B

AMS-DTL-23053/5*,

Class 2

VG 95343 Pt 5 Type B

Industry

VDE 0341 Pt 9005

Type A and B

Raychem

RT-350, Type 1

RK-6001

RT-350, Type 2

RK-6001

LR31929

600 V, 125°C

—

*Formerly MIL-I-23053/5 and MIL-DTL-23053/5.

Available in:

Americas

Europe

Asia Pacific

1-89

9-1773447-9

CIS WR 08/2011

te.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-475-6222

Mexico: 52-55-1106-0800

L. & S. America: 54-11-4733-2200

Germany: 49-6251-133-1999

China: 86-400-820-6015

Japan: 81-44-844-8013

UK: 44-800-267-666
