82A0111-0-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 82A0111-0-9

82A0111-0-9: Description82A0111-0-9; CategoryWire/cable; File Size141KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

82A0111-0-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82A0111-0-9	-	-	View	Buy Now

82A0111-0-9 Overview

82A0111-0-9

82A0111-0-9 Parametric

Parameter Name	Attribute value
Cable type	power supply
Insulation type	pair
Product Categories	Wire - Spec 80 (FlexLine)
Wall type	single
Cable type	primary
Number of shares	2660
Number of conductors	1
Rated voltage (VAC)	600
Insulation Materials	Irradiation cross-linked modified flexible ETFE
Insulating sleeve color	White
Wire color	WT
conductor material	tinned copper, tinned copper
conductor split	Highly stranded conductor
Stock size (AWG)	34
Wire size (AWG)	0
Wire size (mm²)	53.5
Wire diameter (in)	.516
Conductor diameter (in)	.45
Length (ft)	50
Overall outside diameter (in)	.516
Operating temperature range (°C)	-65 – 150
Wires	equipment
Encapsulation method	roll

Preview

Download Datasheet

View All

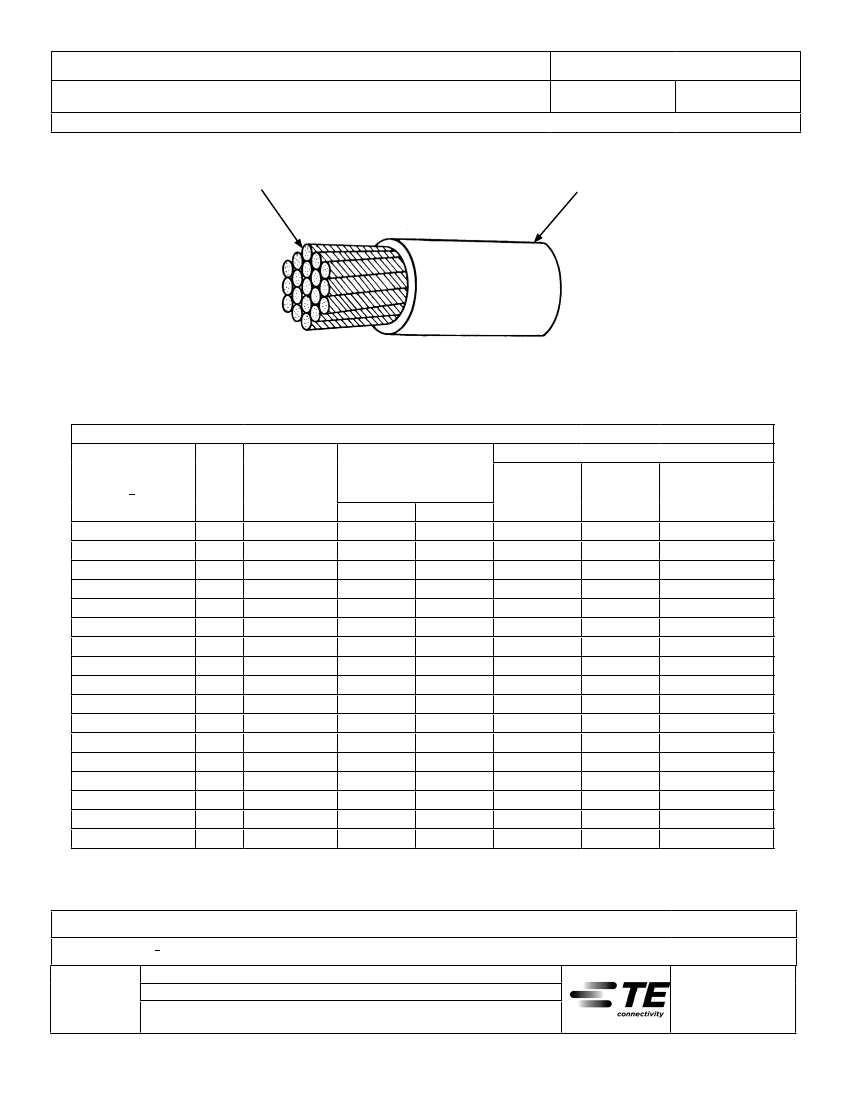

TITLE

SPECIFICATION CONTROL DRAWING

WIRE, RADIATION-CROSSLINKED, MODIFIED FLEXIBLE ETFE-INSULATED,

LIGHTWEIGHT, GENERAL PURPOSE, 600 VOLT

82A0111

Date

6-5-13

Revision

This specification sheet forms a part of the latest issue of Raychem Specification 80.

CONDUCTOR - TIN-COATED COPPER

INSULATION - RADIATION-CROSSLINKED,

MODIFIED FLEXIBLE ETFE

TABLE I. CONSTRUCTION DETAILS

PART NUMBER

82A0111-28-*

82A0111-26-*

82A0111-24-*

82A0111-22-*

82A0111-20-*

82A0111-18-*

82A0111-16-*

82A0111-14-*

82A0111-12-*

82A0111-10-*

82A0111-8-*

82A0111-6-*

82A0111-4-*

82A0111-2-*

82A0111-1-*

82A0111-0-*

82A0111-00-*

WIRE

SIZE

(AWG)

CONDUCTOR

STRANDING

(number x AWG)

42 x 44

63 x 44

105 x 44

154 x 44

154 x 42

259 x 42

259 x 40

665 x 42

665 x 40

665 x 38

665 x 36

1045 x 36

1665 x 36

1665 x 34

2109 x 34

2660 x 34

3325 x 34

DIAMETER OF

STRANDED

CONDUCTOR

(in.)

MINIMUM

.013

.017

.023

.029

.037

.047

.061

.078

.096

.126

.157

.192

.265

.325

.370

.435

.485

MAXIMUM

.017

.021

.027

.033

.043

.053

.067

.086

.106

.140

.173

.208

.285

.345

.400

.465

.515

FINISHED WIRE

MAXIMUM

RESISTANCE

AT 20°C

(ohms/1000 ft.)

71.4

43.5

28.2

19.2

11.7

7.14

4.53

2.96

1.89

1.12

.714

.490

.326

.204

.163

.133

.102

DIAMETER

(in.)

.029 ± .003

.033 ± .003

.037 ± .003

.043 ± .003

.053 ± .004

.064 ± .004

.079 ± .004

.099 ± .005

.121 ± .006

.157 ± .009

.195 ± .010

.236 ± .011

.318 ± .013

.385 ± .014

.445 ± .019

.516 ± .020

.566 ± .020

MAXIMUM

WEIGHT

(lbs/1000 ft.)

1.0

1.4

2.1

2.9

4.2

6.7

10.2

16.5

24.8

42.2

66.3

102.

169.

252.

317.

407.

502.

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE

ADDED TO THE PART NUMBER. AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
