51323-1102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51323-1102

51323-1102: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, White Insulator, Receptacle; CategoryThe connector The connector; File Size281KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51323-1102 Overview

Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, White Insulator, Receptacle

51323-1102 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99

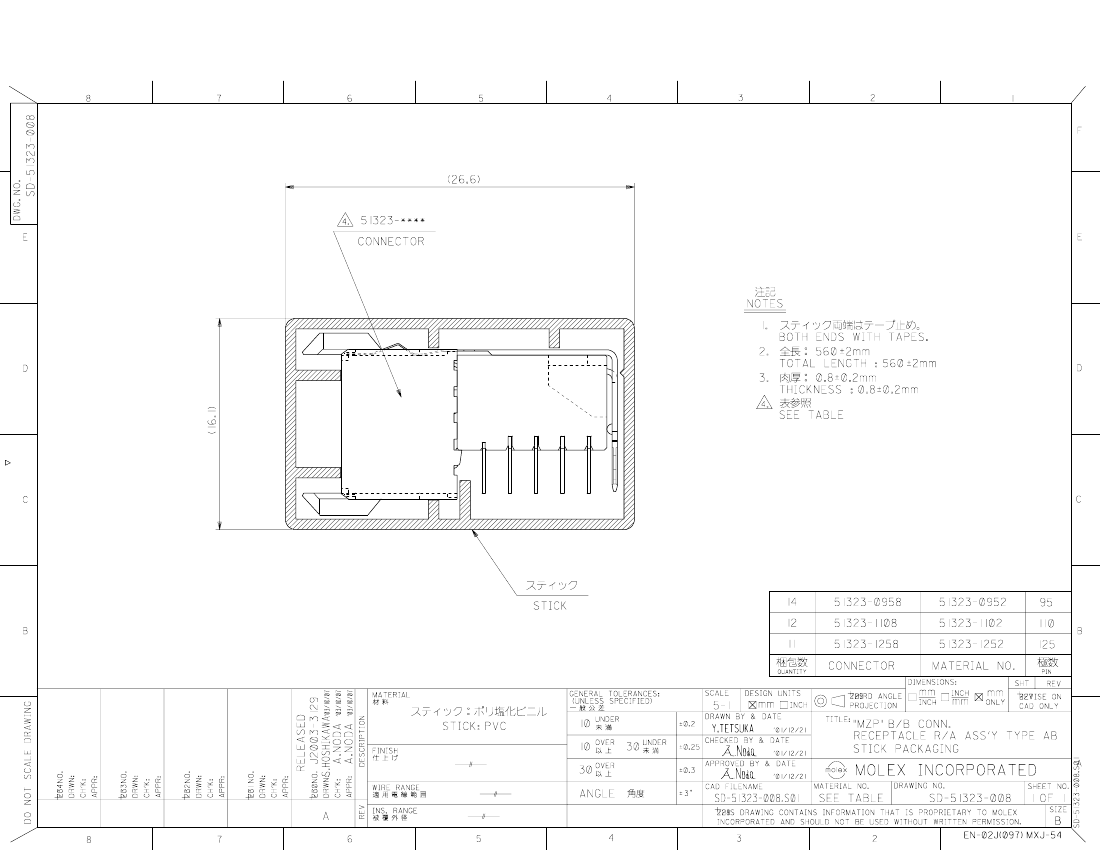

Other features	STICK PACKAGING
body width	0.545 inch
subject depth	0.945 inch
body length	1.732 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	51323
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

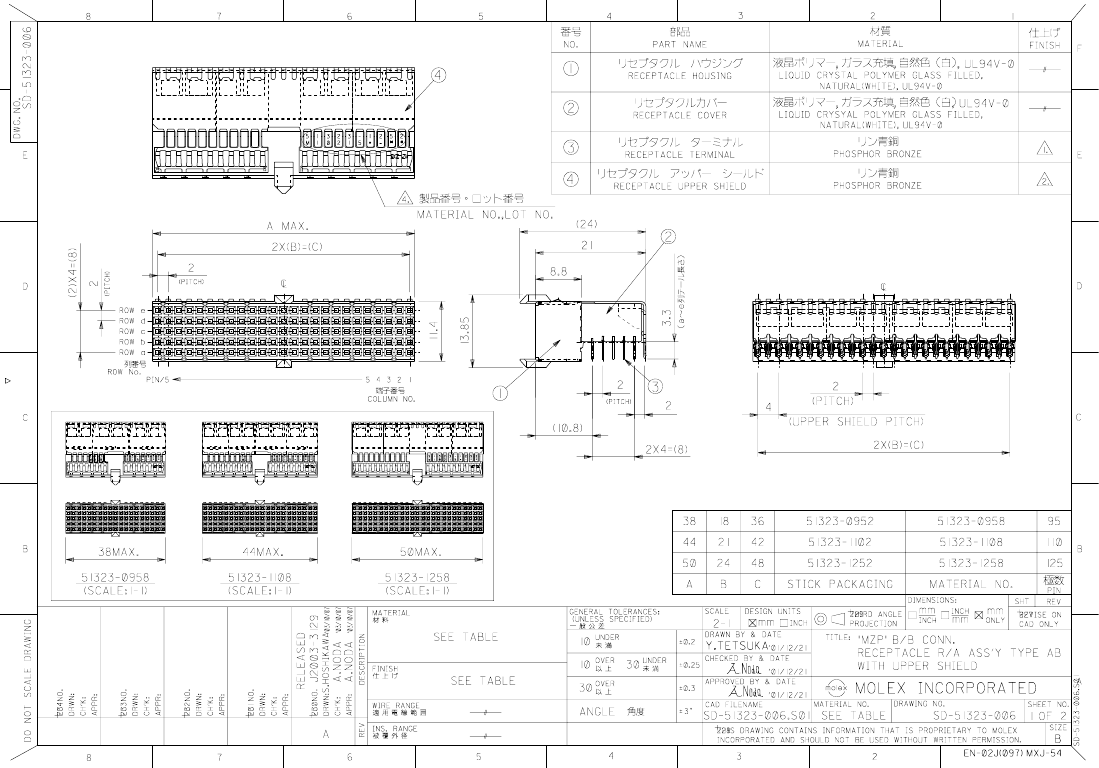

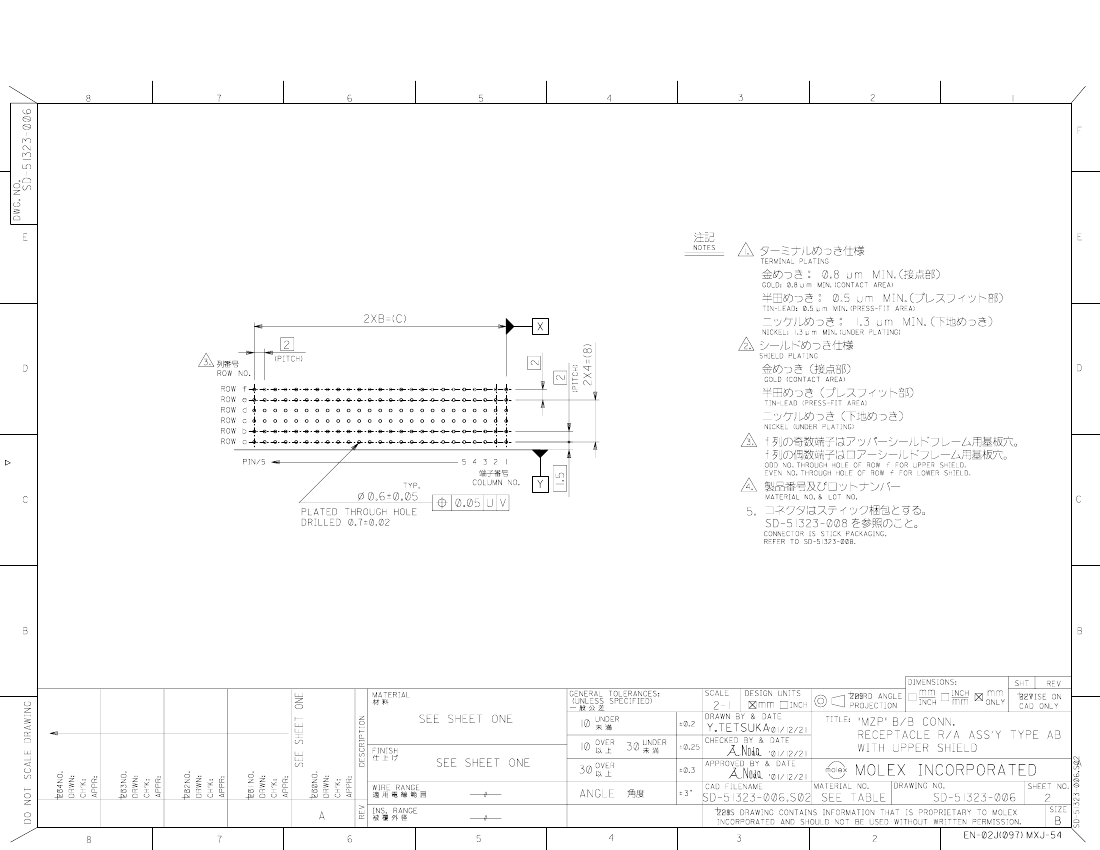

Preview

Download Datasheet

View All

51323-1102 Related Products

	51323-1102	51323-1108	51323-0952	51323-1252	51323-0958
Description	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Slot, White Insulator, Receptacle	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (31) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	GOLD (31) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	95	125	95
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	-	conform to	conform to	-
Maker	Molex	-	Molex	Molex	Molex
Other features	STICK PACKAGING	-	STICK PACKAGING	STICK PACKAGING	-
body width	0.545 inch	-	0.545 inch	0.545 inch	-
subject depth	0.945 inch	-	0.945 inch	0.945 inch	-
body length	1.732 inch	-	1.496 inch	1.969 inch	-
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
Contact resistance	30 mΩ	-	30 mΩ	30 mΩ	-
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	750VAC V	-	750VAC V	750VAC V	-
Durability	125 Cycles	-	125 Cycles	125 Cycles	-
maximum insertion force	.7506 N	-	.7506 N	.7506 N	-
Insulation resistance	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	-
Insulator color	WHITE	-	WHITE	WHITE	-
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-
Manufacturer's serial number	51323	-	51323	51323	51323
Plug contact pitch	0.079 inch	-	0.079 inch	0.079 inch	-
Match contact row spacing	0.079 inch	-	0.079 inch	0.079 inch	-
Installation option 1	GUIDE SLOT	-	GUIDE SLOT	GUIDE SLOT	-
Number of connectors	ONE	-	ONE	ONE	-
PCB row number	6	-	6	6	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.0066 mm	-	2.0066 mm	2.0066 mm	-
Plating thickness	31u inch	-	31u inch	31u inch	-
polarization key	POLARIZED KEY	-	POLARIZED KEY	POLARIZED KEY	-
Rated current (signal)	1 A	-	1 A	1 A	-
Guideline	UL	-	UL	UL	-
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-
Terminal length	0.13 inch	-	0.13 inch	0.13 inch	-
Evacuation force-minimum value	.139 N	-	.139 N	.139 N	-
