55PC1811-22-9-9-F871 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55PC1811-22-9-9-F871

55PC1811-22-9-9-F871: Description55PC1811-22-9-9-F871; CategoryWire/cable; File Size27KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC1811-22-9-9-F871 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55PC1811-22-9-9-F871	-	-	View	Buy Now

55PC1811-22-9-9-F871 Overview

55PC1811-22-9-9-F871

55PC1811-22-9-9-F871 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	1
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	White
conductor material	tinned copper, tinned copper
Shield size (AWG)	38
Overall outer diameter	2.01 mm [ .079 in ]
Wire size (AWG)	22
Wire diameter	1.26 mm [ .0495 in ]
Operating temperature range (°C)	-65 – 150
Wire source	USA

Preview

Download Datasheet

View All

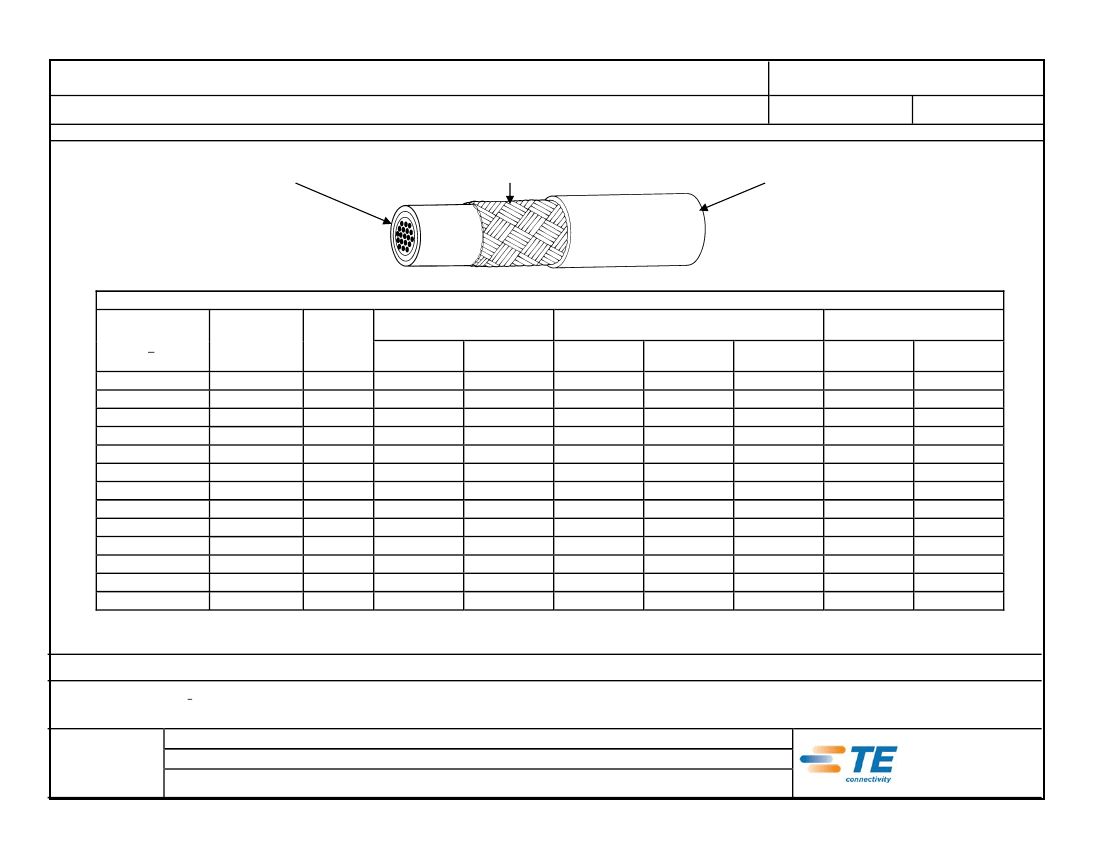

SPECIFICATION CONTROL DRAWING

Title

SCD

55PC1811

Revision

ONE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

Date

7-9-15

COMPONENT WIRE - 55PC0811

SHIELD - TIN-COATED COPPER

JACKET - RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETAILS

PART NUMBER

55PC1811-24-*

55PC1811-22-*

55PC1811-20-*

55PC1811-18-*

55PC1811-16-*

55PC1811-14-*

55PC1811-12-*

55PC1811-10-*

55PC1811-8-*

55PC1811-6-*

55PC1811-4-*

55PC1811-2-*

55PC1811-0-*

CONDUCTOR

SIZE

(AWG)

SHIELD

SIZE

(AWG)

JACKET THICKNESS

(inch)

LOWER

SPEC LIMIT

.0050

.0070

.0080

.0085

TARGET

WALL

.0060

.0065

.0090

.0100

.0110

LOWER

SPEC LIMIT

.069

.075

.084

.094

.102

.118

.137

.155

.219

.263

.334

.405

.488

OUTSIDE DIAMETER

(inch)

TARGET

VALUE

.073

.079

.087

.097

.105

.122

.141

.163

.231

.277

.352

.426

.514

UPPER

SPEC LIMIT

.077

.083

.091

.101

.109

.127

.145

.171

.243

.291

.370

.447

.540

WEIGHT

(lbs/1000 ft.)

TARGET

VALUE

5.74

7.07

9.14

12.06

14.44

20.29

28.43

41.33

73.26

110.56

178.54

269.90

408.52

UPPER

SPEC LIMIT

6.04

7.40

9.49

12.51

14.92

20.90

29.16

42.81

75.89

114.19

184.20

278.04

420.27

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: "901/902..." MAY BE REPLACED BY "Axxx".) OTHER CODES

AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.

Page 1 of 2

DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

55PC1811-22-9-9-F871 Related Products

	55PC1811-22-9-9-F871	55PC1811-14-2-9-F871	55PC1811-0-9-9	55PC1811-18-9-9-F871	55PC1811-12-2-9-F871	55PC1811-20-9-9	55PC1811-20-9-9-F871
Description	55PC1811-22-9-9-F871	55PC1811-14-2-9-F871	55PC1811-0-9-9	55PC1811-18-9-9-F871	55PC1811-12-2-9-F871	55PC1811-20-9-9	55PC1811-20-9-9-F871
Rated voltage (V)	600	600	600	600	600	600	600
shielding material	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper
Insulating sleeve color	White	White	White	White	White	White	White
conductor material	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper	tinned copper, tinned copper
Wire size (AWG)	22	14	-	18	12	20	20
Operating temperature range (°C)	-65 – 150	-65 – 150	-65 – 150	-65 – 150	-65 – 150	-65 – 150	-65 – 150
Cable type	Sheathed shield winding braid	Sheathed shield winding braid	Surround braided shield and jacket	Sheathed shield winding braid	Sheathed shield winding braid	Surround braided shield and jacket	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	-	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	-	High Performance - Sizes 44, 55 and RCW
Number of conductors	1	1	-	1	1	-	1
Wire color	White	red	-	White	red	-	White
Shield size (AWG)	38	38	-	38	38	-	38
Overall outer diameter	2.01 mm [ .079 in ]	3.1 mm [ .122 in ]	-	2.46 mm [ .097 in ]	3.58 mm [ .141 in ]	-	2.21 mm [ .087 in ]
Wire diameter	1.26 mm [ .0495 in ]	2.34 mm [ .092 in ]	-	1.73 mm [ .068 in ]	2.81 mm [ .1105 in ]	-	1.47 mm [ .058 in ]
Wire source	USA	USA	-	USA	USA	-	USA
