55/2122-26-6/9-9: Description55/2122-26-6/9-9; CategoryWire/cable; File Size26KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55/2122-26-6/9-9 Overview

55/2122-26-6/9-9

55/2122-26-6/9-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
shield	yes
Cable type	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	2
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Insulating sleeve color	White
Wire color	White Blue
conductor material	silver coated copper, silver coated copper
Stock size (AWG)	38
Overall outer diameter	2.21 mm [ .087 in ]
Wire size (AWG)	26
Wire diameter	.81 mm [ .032 in ]
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

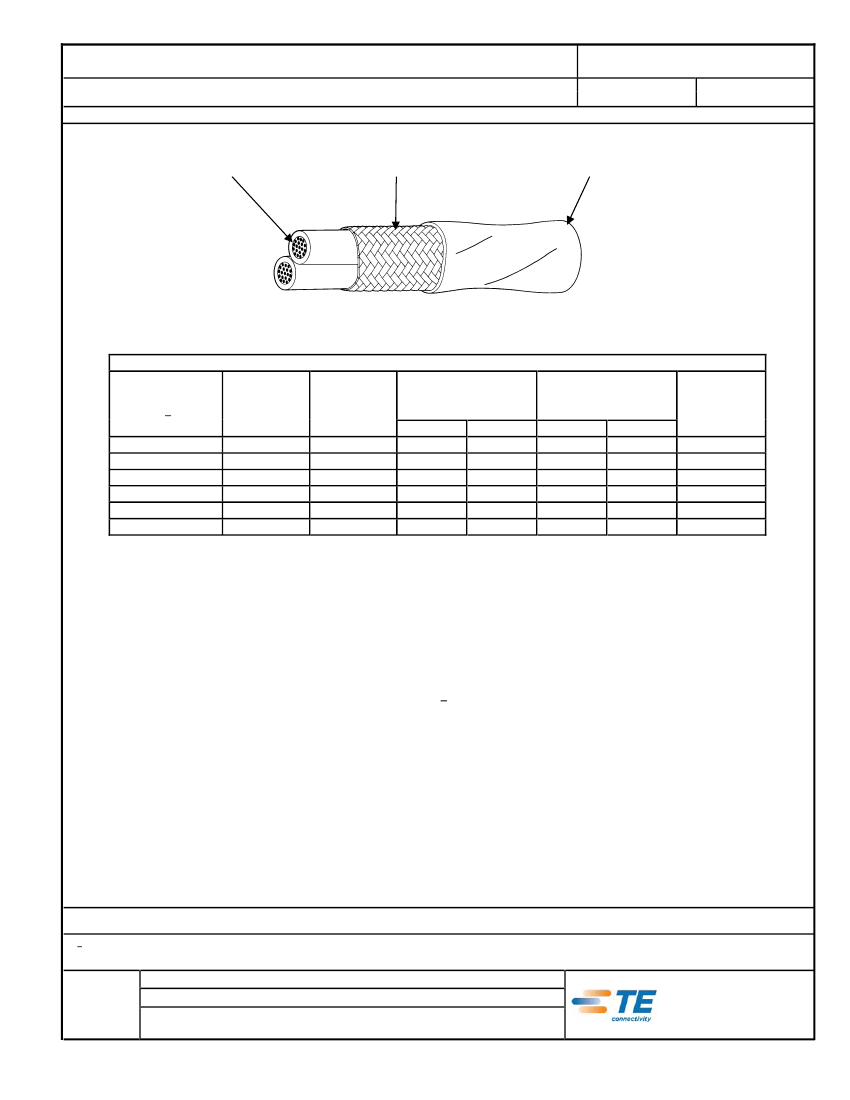

SPECIFICATION CONTROL DRAWING

Title

Date

TWO CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED,

2-18-14

OUTER SPACE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55/.

55/2122

Revision

COMPONENT WIRES - 55/0112

SHIELD - SILVER-COATED COPPER

JACKET - LOW OUTGASSING,

RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETIALS

PART NUMBER

55/2122-26-*

55/2122-24-*

55/2122-22-*

55/2122-20-*

55/2122-18-*

55/2122-16-*

CONDUCTOR

SIZE

(AWG)

SHIELD

STRAND

THICKNESS

(± .0004 inch)

.0015

JACKET THICKNESS

(inch)

MINIMUM

.006

NOMINAL

.008

OUTSIDE DIAMETER

(inch)

NOMINAL

.087

.097

.109

.123

.143

.159

MAXIMUM

.092

.102

.114

.129

.150

.167

MAXIMUM

WEIGHT

(lbs/1000 ft.)

6.0

7.7

9.8

13.5

18.8

23.2

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

TEMPERATURE RATING: 200°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

JACKET COLOR: White preferred

JACKET ELONGATION: 50% (minimum)

JACKT FLAWS:

Spark Test, 1000 volts (rms)

Impulse Dielectric Test, 6.0 kV (peak)

RADIATION RESISTANCE: 500 megarads

SHIELD COVERAGE: 85% (minimum)

VACUUM STABILITY:

Total Mass Loss (TML), 1.00% (maximum)

Volatile Condensable Material (VCM), 0.10% (maximum)

VOLTAGE WITHSTAND (Pose Environmental):

1500 volts (rms), 60 Hz, 1 minute

1/ PART NUMBER:

The "*" in the part numbers above shall be replaced by color

code designators with a slash separating the component wire

colors and a dash separating the component wire colors from

the jacket color.

Example: AWG 20, black and brown component wires;

white jacket: 55/2122-20-0/1-9

NOTE: Nominal values are for information only.

Nominal values are not requirements.

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics Corporation

also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: "901/902..." MAY BE REPLACED BY "Axxx".) OTHER CODES AND

SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55/2122-26-6/9-9 Related Products

	55/2122-26-6/9-9	55/2122-24-6/9-9	55/2122-22-6/9-9	55/2122-22-0/2-9	55/2122-20-0/2-9	55/2122-22-9/96-9
Description	55/2122-26-6/9-9	55/2122-24-6/9-9	55/2122-22-6/9-9	55/2122-22-0/2-9	55/2122-20-0/2-9	55/2122-22-9/96-9
shield	yes	yes	yes	yes	yes	yes
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of shares	19	19	19	19	19	19
Number of conductors	2	2	2	2	2	2
Rated voltage (V)	600	600	600	600	600	600
shielding material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Insulating sleeve color	White	White	White	White	White	White
Wire color	White Blue	White Blue	White Blue	Red Black	Red Black	white, white with blue stripes
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Stock size (AWG)	38	36	34	34	32	34
Overall outer diameter	2.21 mm [ .087 in ]	2.46 mm [ .097 in ]	2.77 mm [ .109 in ]	2.77 mm [ .109 in ]	3.12 mm [ .123 in ]	2.77 mm [ .109 in ]
Wire size (AWG)	26	24	22	22	20	22
Wire diameter	.81 mm [ .032 in ]	.94 mm [ .037 in ]	1.09 mm [ .043 in ]	1.09 mm [ .043 in ]	1.27 mm [ .05 in ]	1.09 mm [ .043 in ]
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200
Cable type	Flat braided shielding and jacketing	Flat braided shielding and jacketing	Flat braided shielding and jacketing	Flat braided shielding and jacketing	Flat braided shielding and jacketing	Flat braided shielding and jacketing
