55/2121-20-2/6-9 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55/2121-20-2/6-9

55/2121-20-2/6-9: Description55/2121-20-2/6-9; CategoryWire/cable; File Size76KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55/2121-20-2/6-9 Overview

55/2121-20-2/6-9

55/2121-20-2/6-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
shield	yes
Cable type	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	2
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	Red Blue
conductor material	tinned copper, tinned copper
Stock size (AWG)	32
Overall outer diameter	3.12 mm [ .123 in ]
Wire size (AWG)	20
Wire diameter	12.7 mm [ .5 in ]
Operating temperature range (°C)	-65 – 150

Preview

Download Datasheet

View All

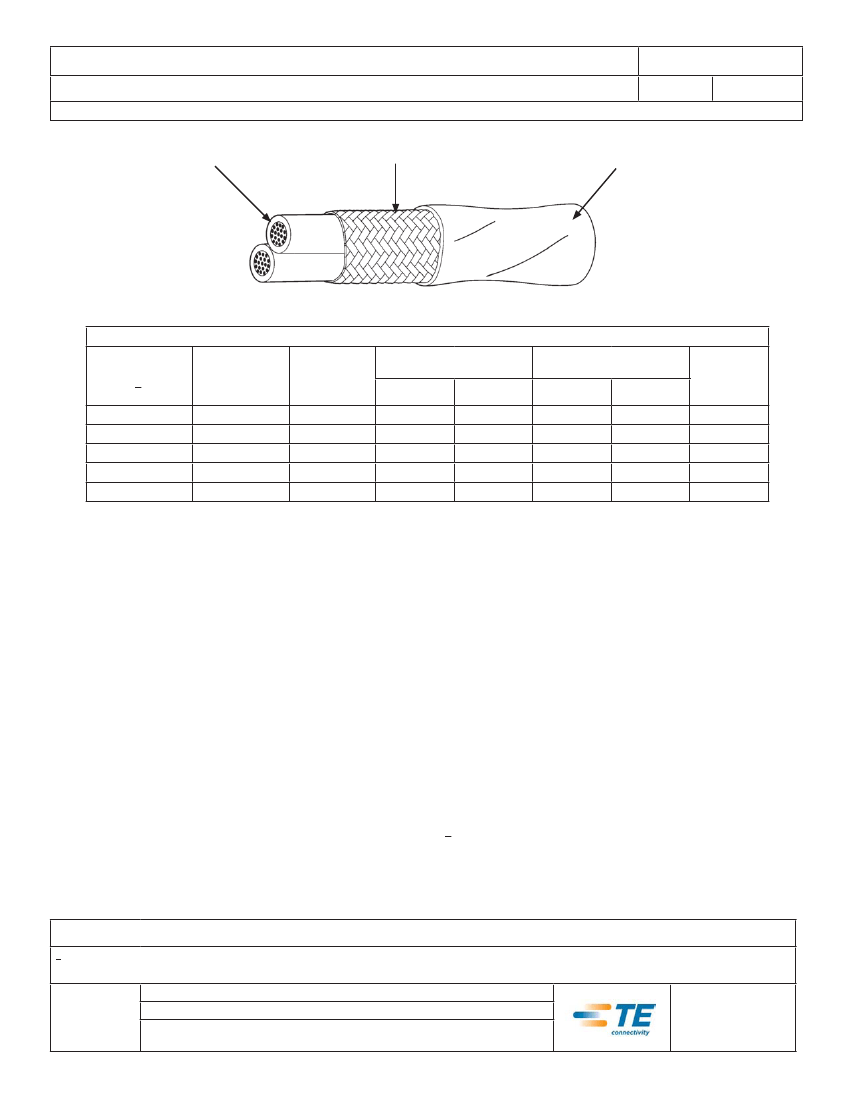

SPECIFICATION CONTROL DRAWING

TITLE

55/2121

Date

TWO CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, OUTER SPACE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55/.

4-20-11

Revision

COMPONENT WIRES - 55/0111

SHIELD - TIN-COATED COPPER

JACKET - LOW OUTGASSING,

RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETAILS

PART NUMBER

55/2121-24-*

55/2121-22-*

55/2121-20-*

55/2121-18-*

55/2121-16-*

CONDUCTOR

SIZE

(AWG)

SHIELD

STRAND

THICKNESS

(± .0004 inch)

.0015

JACKET THICKNESS

(in.)

MINIMUM

.006

NOMINAL

.008

OUTSIDE DIAMETER

(in.)

NOMINAL

.097

.109

.123

.143

.159

MAXIMUM

.102

.114

.129

.150

.167

MAXIMUM

WEIGHT

(lbs/1000 ft.)

7.7

9.8

13.5

18.8

23.2

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

TEMPERATURE RATING: 150°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

JACKET COLOR: White preferred

JACKET ELONGATION: 50% (minimum)

JACKET FLAWS:

Spark Test, 1000 volts (rms)

Impulse Dielectric Test, 6.0 kV (peak)

NOTE: Nominal values are for information only.

Nominal values are not requirements.

RADIATION RESISTANCE: 500 megarads

SHIELD COVERAGE: 85% (minimum)

VACUUM STABILITY:

Total Mass Loss (TML), 1.00% (maximum)

Volatile Condensable Material (VCM), 0.10% (maximum)

VOLTAGE WITHSTAND (Post Environmental):

1500 volts (rms), 60 Hz, 1 minute

PART NUMBER:

The “*” in the part numbers above shall be replaced by color code

designators with a slash separating the component wire colors and a

dash separating the component wire colors from the jacket color.

Example: AWG 20, black and brown component wires; white jacket:

55/2121-20-0/1-9

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND

SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

TE Connectivity, TE connectivity (logo), TE (logo), and Raychem are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55/2121-20-2/6-9 Related Products

	55/2121-20-2/6-9	55/2121-22-2/6-9
Description	55/2121-20-2/6-9	55/2121-22-2/6-9
shield	yes	yes
Product Categories	High Performance - Sizes 44, 55 and RCW	High Performance - Sizes 44, 55 and RCW
Number of shares	19	19
Number of conductors	2	2
Rated voltage (V)	600	600
shielding material	tinned copper, tinned copper	tinned copper, tinned copper
Insulating sleeve color	White	White
Wire color	Red Blue	Red Blue
conductor material	tinned copper, tinned copper	tinned copper, tinned copper
Stock size (AWG)	32	34
Overall outer diameter	3.12 mm [ .123 in ]	2.77 mm [ .109 in ]
Wire size (AWG)	20	22
Wire diameter	12.7 mm [ .5 in ]	10.92 mm [ .43 in ]
Operating temperature range (°C)	-65 – 150	-65 – 150
Cable type	Flat braided shielding and jacketing	Flat braided shielding and jacketing
