55A1132-16-0/2/9-9 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55A1132-16-0/2/9-9

55A1132-16-0/2/9-9: Description55A1132-16-0/2/9-9; CategoryWire/cable; File Size73KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55A1132-16-0/2/9-9 Overview

55A1132-16-0/2/9-9

55A1132-16-0/2/9-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55A
shield	yes
Cable type	Surround braided shield and jacket
Number of shares	19
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Insulation Materials	Irradiation cross-linked modified ETFE
Insulating sleeve color	White
conductor material	silver coated copper, silver coated copper
Wire size (AWG)	16
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

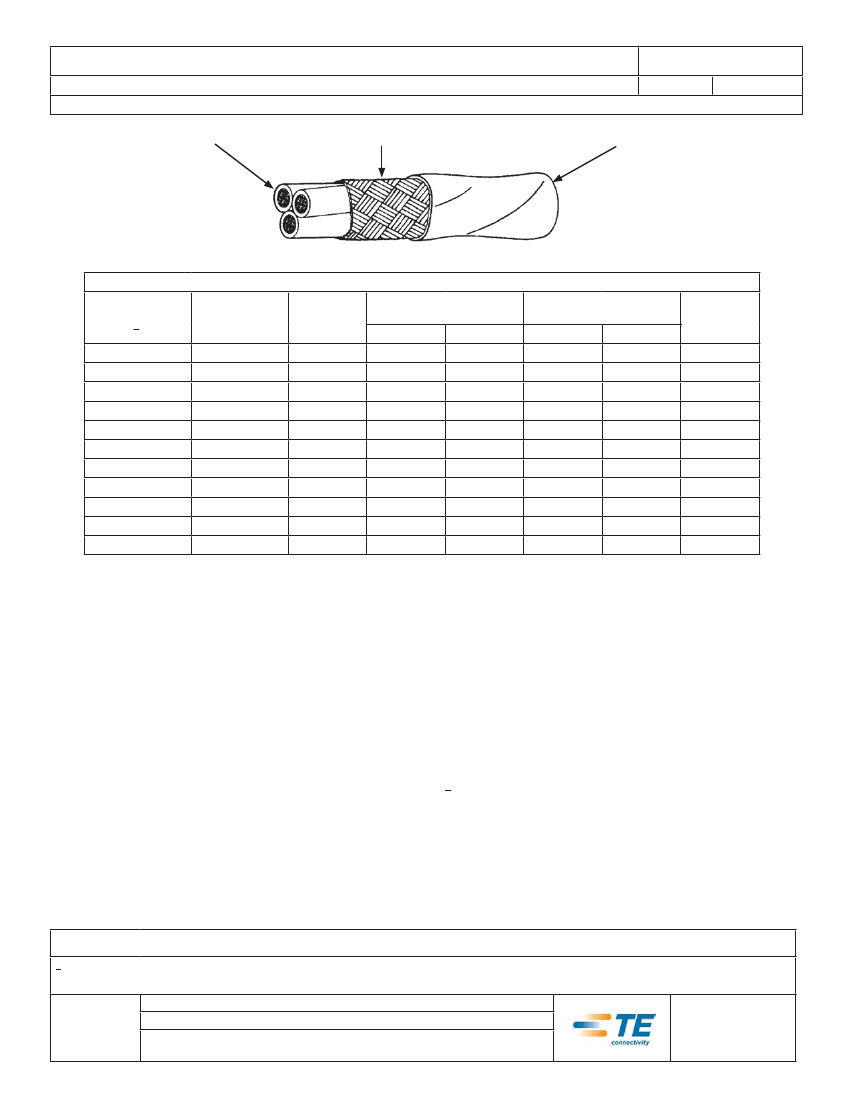

SPECIFICATION CONTROL DRAWING

TITLE

55A1132

Date

THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55A.

COMPONENT WIRES - 55A0112

SHIELD - SILVER-COATED COPPER

4-18-11

Revision

JACKET - RADIATION-CROSSLINKED,

MODIFIED ETFE

CABLE CONSTRUCTION DETAILS

PART NUMBER

55A1132-30-*

55A1132-28-*

55A1132-26-*

55A1132-24-*

55A1132-22-*

55A1132-20-*

55A1132-18-*

55A1132-16-*

55A1132-14-*

55A1132-12-*

55A1132-10-*

CONDUCTOR

SIZE

(AWG)

SHIELD

SIZE

(AWG)

JACKET THICKNESS

(inches)

MINIMUM

.006

.007

NOMINAL

.008

.009

OUTSIDE DIAMETER

(inches)

NOMINAL

.085

.091

.102

.113

.126

.141

.163

.180

.219

.257

.311

MAXIMUM

.090

.096

.107

.119

.132

.148

.171

.189

.230

.270

.327

MAXIMUM

WEIGHT

(lbs/1000 ft.)

6.5

7.7

10.0

12.6

15.9

21.5

29.7

36.4

53.9

77.2

120.

CABLE RATINGS AND ADDITIONAL REQUIREMENTS

TEMPERATURE RATING: 200°C

Maximum continuous conductor temperature

VOLTAGE RATING: 600 volts (rms) at sea level

ACCELERATED AGING: 300 ± 3°C for 7 hours

BLOCKING: 200 ± 3°C for 6 hours

DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz

FLAMMABILITY (Procedure 1): 3 seconds (maximum);

3 in. (maximum); no flaming of facial tissue

JACKET COLOR: White preferred

JACKET ELONGATION AND TENSILE STRENGTH:

Elongation, 50% (minimum)

Tensile Strength, 5000 lbf/in² (minimum)

JACKET FLAWS:

Spark Test, 1000 volts (rms)

Impulse Dielectric Test, 6.0 kV (peak)

NOTE: Nominal values are for information only.

Nominal values are not requirements.

LIFE CYCLE: 230 ± 3°C for 500 hours

LOW TEMPERATURE-COLD BEND: -65 ± 2°C for 4 hours

SHIELD COVERAGE: 85% (minimum)

VOLTAGE WITHSTAND (Post Environmental):

1000 volts (rms), 60 Hz, 1 minute

PART NUMBER:

The “*” in the part numbers above shall be replaced by color code

designators with a slash separating the component wire colors and a

dash separating the component wire colors from the jacket color. Colors

shown do not necessarily reflect the sequence of manufacturing.

Example: AWG 20, black, brown and red component wires;

white jacket: 55A1132-20-0/1/2-9

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES AND

SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

TE Connectivity, TE connectivity (logo), TE (logo), and Raychem are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 1

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55A1132-16-0/2/9-9 Related Products

	55A1132-16-0/2/9-9	55A1132-20-3/6/9-9	55A1132-20-2/4/6-9	55A1132-20-3/6/9-9CS2275	55A1132-22-2/5/9-9	55A1132-22-3/6/9-9
Description	55A1132-16-0/2/9-9	Wire And Cable, 3 Conductor(s), 20AWG, 600V, Flexible Cord And Fixture Wire	WIRE AND CABLE	55A1132-20-3/6/9-9CS2275	55A1132-22-2/5/9-9	55A1132-22-3/6/9-9
conductor material	silver coated copper, silver coated copper	COPPER ALLOY	COPPER ALLOY	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Cable type	Surround braided shield and jacket	SPEC 55	-	sheath, winding braid	sheath, winding braid	sheath, winding braid
shield	yes	YES	-	yes	yes	yes
Number of shares	19	-	-	19	19	19
Rated voltage (V)	600	-	-	600	600	600
shielding material	silver coated copper, silver coated copper	-	-	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
Insulating sleeve color	White	-	-	White	White	White
Wire size (AWG)	16	-	-	20	22	22
Operating temperature range (°C)	-65 – 200	-	-	-65 – 200	-65 – 200	-65 – 200
Number of conductors	-	3	-	3	3	3
