55PC1131-16-3/6/9-9 datasheet, PDF

Datasheet> All Categories > Wire/cable> 55PC1131-16-3/6/9-9

55PC1131-16-3/6/9-9: Description55PC1131-16-3/6/9-9; CategoryWire/cable; File Size78KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

55PC1131-16-3/6/9-9 Overview

55PC1131-16-3/6/9-9

55PC1131-16-3/6/9-9 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Sheathed shield winding braid
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of conductors	3
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	orange, blue, white
conductor material	tinned copper, tinned copper
Shield size (AWG)	38
Overall outer diameter	4.5 mm [ .177 in ]
Wire size (AWG)	16
Wire diameter	1.69 mm [ .0665 in ]
Operating temperature range (°C)	-65 – 150
Wire source	USA

Preview

Download Datasheet

View All

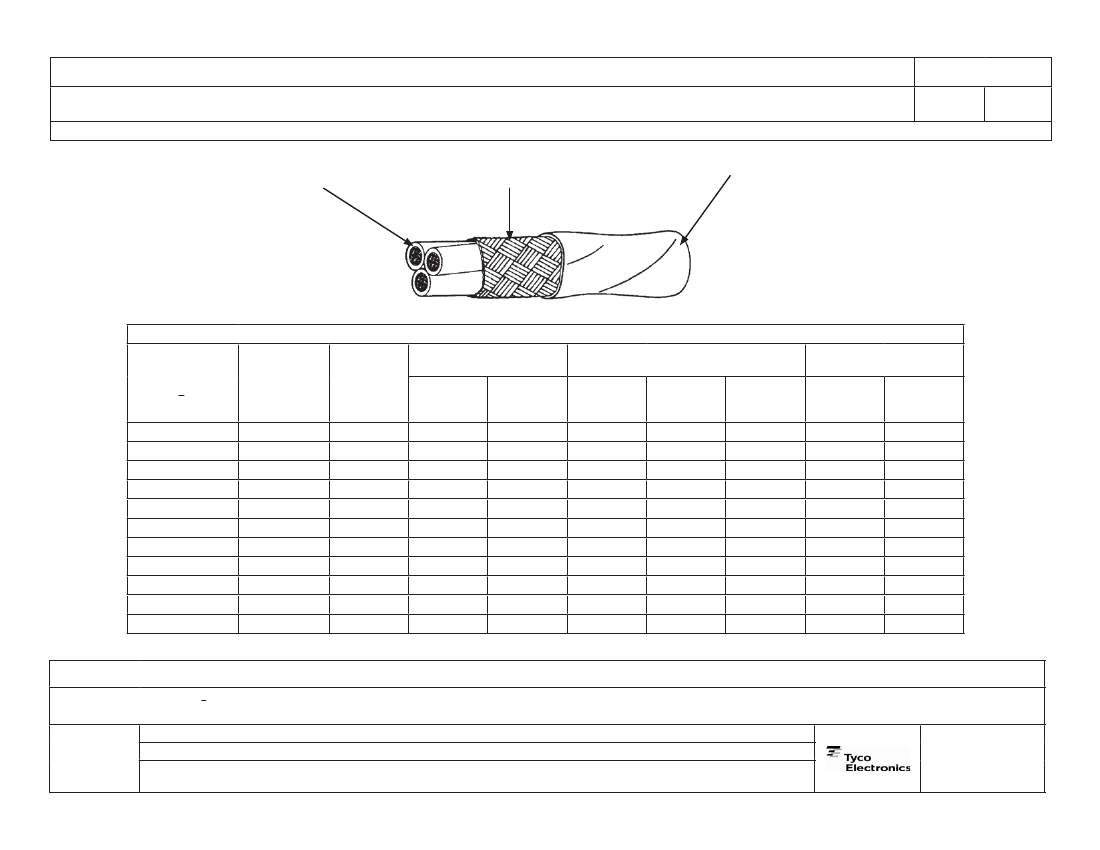

SPECIFICATION CONTROL DRAWING

TITLE

55PC1131

Date

THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

JACKET -

RADIATION-CROSSLINKED,

MODIFIED ETFE

3-16-10

Revision

COMPONENT WIRES - 55PC0111

SHIELD - TIN-COATED COPPER

CONSTRUCTION DETAILS

CONDUCTOR

SIZE

(AWG)

SHIELD

SIZE

(AWG)

JACKET THICKNESS

( in. )

LOWER

SPEC

LIMIT

.0050

.0055

.0060

.0065

.0070

TARGET

WALL

.0065

.0070

.0075

.0080

.0085

.0090

LOWER

SPEC

LIMIT

.081

.094

.104

.118

.135

.155

.172

.203

.244

.295

.426

OUTSIDE DIAMETER

( in. )

TARGET

VALUE

.087

.098

.108

.122

.139

.160

.177

.208

.249

.310

.449

UPPER

SPEC

LIMIT

.092

.102

.113

.127

.144

.165

.182

.214

.255

.325

.472

WEIGHT

( lbs/1000 ft. )

TARGET

VALUE

6.69

8.87

11.23

14.85

20.30

28.14

34.67

50.00

73.31

116.67

218.12

UPPER

SPEC

LIMIT

7.23

9.32

11.67

15.39

20.91

28.94

35.57

51.12

74.78

120.59

225.11

PART NUMBER

55PC1131-28-*

55PC1131-26-*

55PC1131-24-*

55PC1131-22-*

55PC1131-20-*

55PC1131-18-*

55PC1131-16-*

55PC1131-14-*

55PC1131-12-*

55PC1131-10-*

55PC1131-8-*

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.)

OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

The TE logo, Tyco Electronics and Raychem are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
