SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. SOLDER PREFORM WITH FLUX:
SOLDER:
TYPE Sn96 per ANSI-J-STD-006.
FLUX:
TYPE ROM1 per ANSI-J-STD-004.
3. MELTABLE SEALING RING: Thermally stabilized thermoplastic. Color: red.
4. MELTABLE SEALING RING: Thermally stabilized thermoplastic. Color: blue.
APPLICATION
1. This controlled soldering device is designed for termination of a nickel plated shield of a cable having an insulation rated for
at least 150°C.
2. Temperature range: -55°C to +175°C. For application tooling, contact your local Raychem technical service.

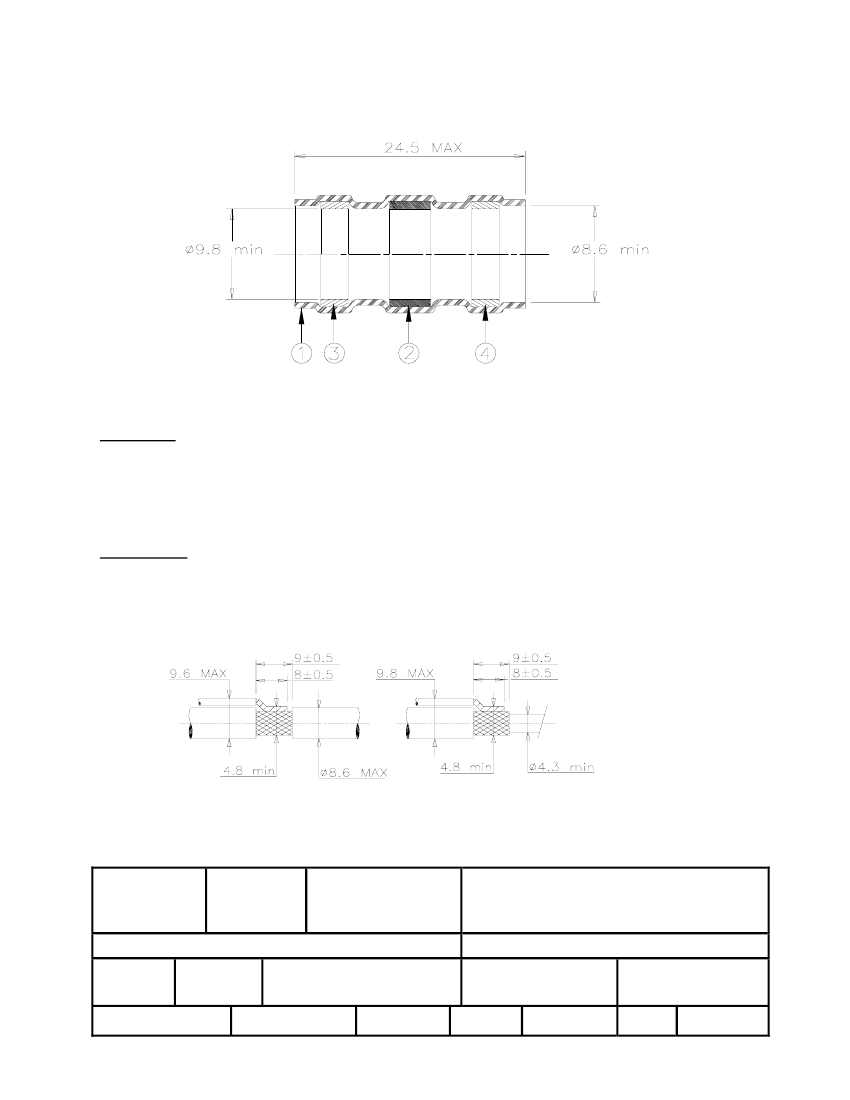

For best results, prepare the cable as shown:
* A trademark of Raychem Corporation.
Raychem
THERMOFIT
DEVICES
Raychem Corporation
300 Constitution Drive
Menlo Park, CA 94025
USA
TITLE:
SOLDERSLEEVE* DEVICE
SHIELD TERMINATION
HIGH TEMPERATURE
DOCUMENT NO.:
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
Raychem reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should evaluate
0.00 N/A
the suitability of the product for their
ROUGHNESS IN
0.0 N/A
application.
MICRON
0 N/A
DRAWN BY:
DATE:
PROD. REV.
B-022-05
REPLACES:
D980892
DOC ISSUE:
SCALE:
SIZE:
B02205
SHEET:
D
M. FORONDA
07/10/98
If this document is printed it becomes uncontrolled.
Check with the web for latest revision.
1
None
A
1 of 1
