SPECIFICATION CONTROL DRAWING
Product
Name
D-704-0019
D-704-0024
Product
Revision
C
C
S +0.51/-0.00
(S +0.020/-0.000)
(center spacing dimension)
2.54
(0.100)
3.81
(0.150)
Quantity Per
Assembly
750
500
MATERIALS
1. SOLDERSLEEVE WIRE TERMINATOR: D-128-0014, Quantity Per Assembly: see table.
2. CARRIER STRIP: Adhesive Coated High Temperature Tape
APPLICATION
1. This assembly is designed to be used with a Raychem AS-4000 Wire Organization System on
connectors with terminals on “S” (see table) center spacing. For usage parameters, see Raychem
Devices Specification Control Drawing D-128-0014.
2. Wire terminators are to be inspected to Raychem Devices Specification Control Drawing D-128-0014.
307 Constitution Drive Menlo Park, CA 94025, USA
Wire and
Harnessing
Products
TITLE:

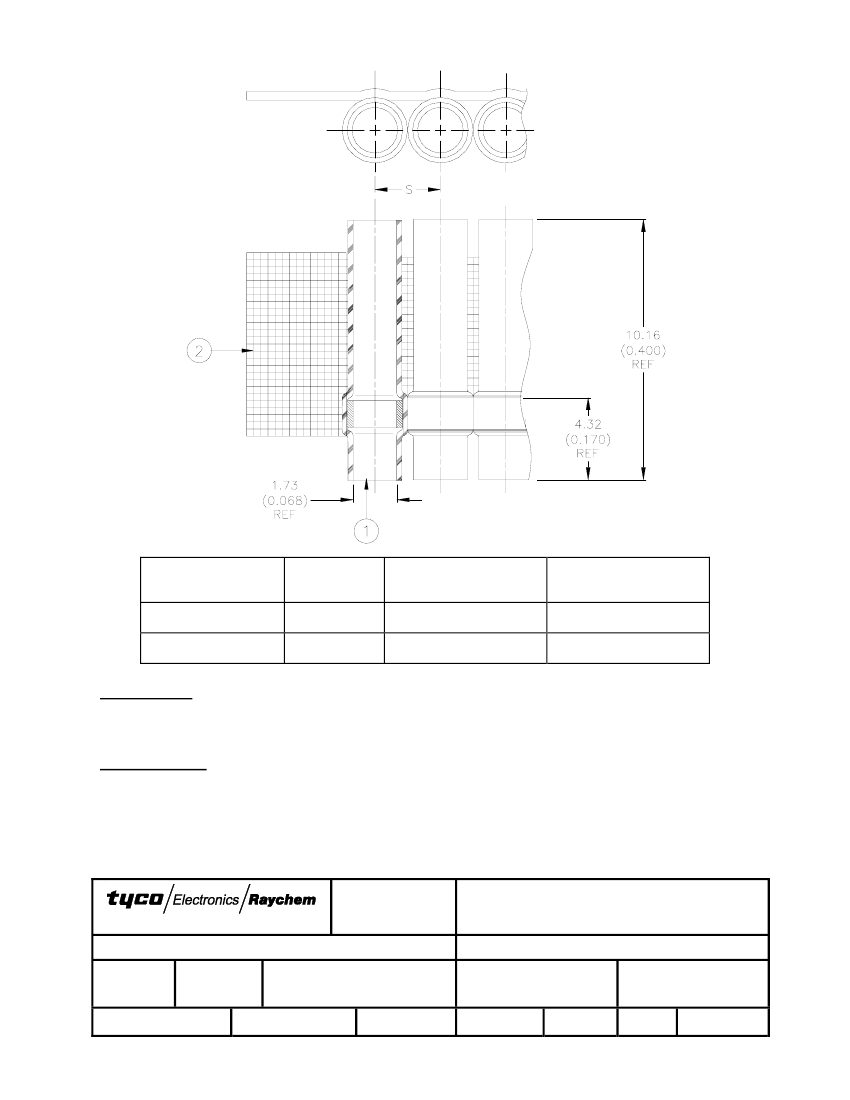

2.54 (0.100), 3.81 (0.150) Centers
SOLDER PAK ASSEMBLY FOR AS-4000
SLEEVE: D-128-0014
Unless otherwise specified dimensions are in millimeters.
Inches dimensions are in between brackets.
Tyco Electronics reserves the right to amend
ANGLES: N/A
TOLERANCES:
this drawing at any time. Users should
0.00 N/A
evaluate the suitability of the product for
ROUGHNESS IN
0.0 N/A
their application.
MICRON
0 N/A
DOCUMENT NO.:
DCR NUMBER:
D-704-0019/D-704-0024
REPLACES:
D010012
SCALE:
None
SIZE:
A
N/A
SHEET:
1 of 1
DRAWN BY:
DATE:
PROD. REV.
DOC ISSUE:
M. FORONDA
08-Feb.-01
SEE TABLE
1
If this document is printed it becomes uncontrolled. Check for the latest revision.
