B-058-00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> B-058-00

B-058-00: DescriptionB-058-00; CategoryThe connector; File Size35KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

B-058-00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B-058-00	-	-	View	Buy Now

B-058-00 Overview

B-058-00

B-058-00 Parametric

Parameter Name	Attribute value
Connector type	welded casing
Pre-installed leads	yes
Termination method	welding
Expand inner diameter (minimum value)	2.59 mm [ .102 in ]
Recovered inner diameter (maximum value)	1.5 mm [ .06 in ]
Wire Size Range (AWG)	24
Wire size range (mm²)	.25
total length	16.51 mm [ .65 in ]
Operating temperature (max) (°C)	150
Resistance properties	Splash protection
Wire temperature (max) (°C)	125

Preview

Download Datasheet

View All

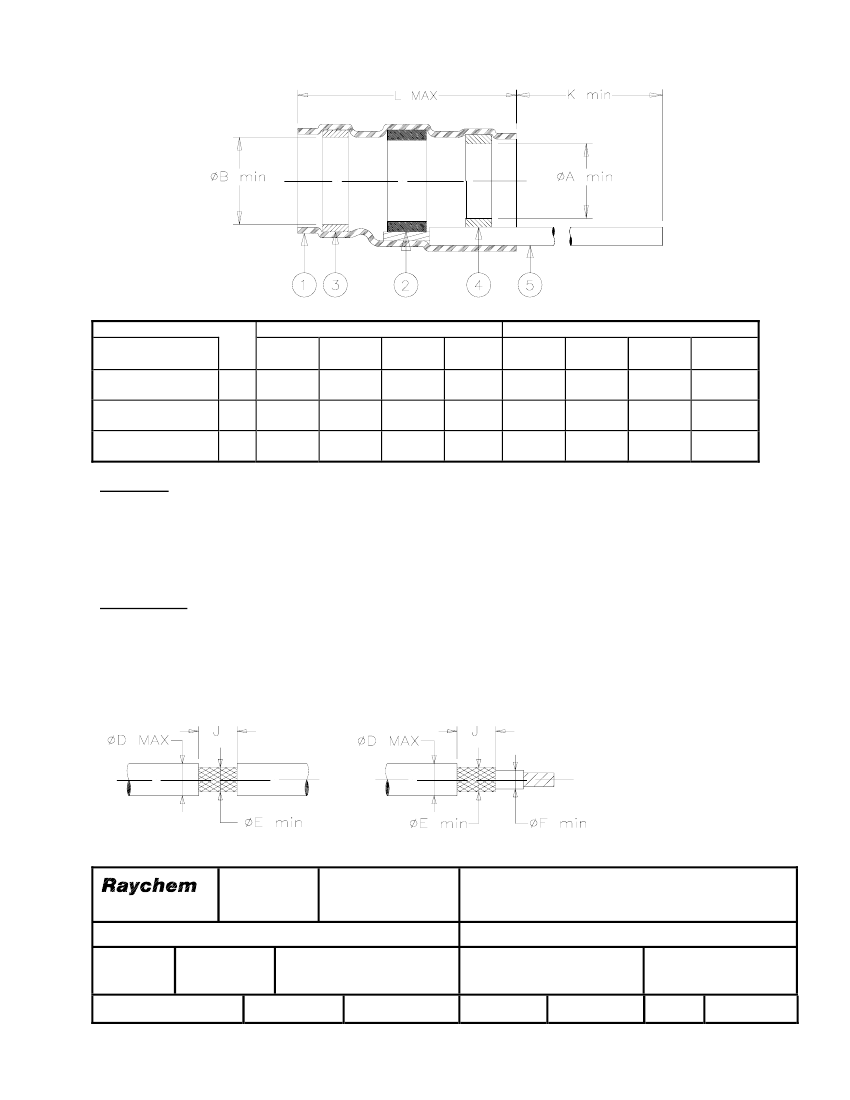

SPECIFICATION CONTROL DRAWING

Product Revisions

Part Names

B-058-00

B-058-01

B-058-02

max

16.5

(0.650)

16.5

(0.650)

22.1

(0.870)

Product Dimensions

min

2.6

3.1

(0.100)

(0.120)

4.4

4.9

(0.175)

(0.195)

6.9

7.4

(0.270)

(0.290)

min

150

(5.900)

150

(5.900)

150

(5.900)

max

2.6

(0.100)

4.4

(0.175)

6.9

(0.270)

Cable Dimensions

min

1.6

1.5

(0.630)

(0.060)

2.2

2.1

(0.085)

(0.080)

3.4

3.2

(0.135)

(0.125)

J±1

(J±0.04)

(0.275)

MATERIAL

1. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue.

2. SOLDER PREFORM WITH FLUX:

SOLDER: TYPE Sn63 per ANSI J-STD-006.

FLUX:

TYPE ROL1 per ANSI J-STD-004.

3. & 4. MELTABLE RINGS: Thermally stabilized thermoplastic. Color: clear.

5. GROUND LEAD: RAYCHEM 55A0111-24 in accordance with MIL-W-22759/32 24 AWG. Stranded tin plated copper.

Color: blue.

APPLICATION

1. These parts are designed to provide an environment protected shield termination on cables rated for 125°C minimum, meeting

the dimensional criteria listed and having tin or silver plated shields.

2. Temperature range: -55°C to +150°C.

3. Install using Raychem-approved convection or infrared heating tools in accordance with Raychem installation procedure

RPIP-709-00.

For best results, prepare the cable as shown:

*A trademark of Raychem Corporation.

THERMOFIT

DEVICES

Raychem Corporation

300 Constitution Drive

Menlo Park, CA 94025

USA

TITLE:

SOLDERSLEEVE* DEVICE

WITH PRE-INSTALLED LEAD

DOCUMENT NO

DCR NUMBER:

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.

INCHES DIMENSIONS ARE IN BETWEEN BRACKETS.

Raychem reserves the right to amend this

ANGLES: N/A

TOLERANCES:

drawing at any time. Users should

0.00 N/A

evaluate the suitability of the product for

ROUGHNESS IN

0.0 N/A

their application.

MICRON

0 N/A

.: B-058-0X

REPLACES:

D981675

SCALE:

NONE

SIZE:

B0580X

SHEET:

1 of 1

DRAWN BY:

DATE:

REV.:

DOC ISSUE:

R. MAPALO

16-Oct-98

SEE TABLE

If this document is printed it becomes uncontrolled. Check for the latest revision.

B-058-00 Related Products

	B-058-00	B-058-02
Description	B-058-00	B-058-02
Connector type	welded casing	welded casing
Pre-installed leads	yes	yes
Termination method	welding	welding
Expand inner diameter (minimum value)	2.59 mm [ .102 in ]	6.9 mm [ .272 in ]
Recovered inner diameter (maximum value)	1.5 mm [ .06 in ]	3.2 mm [ .125 in ]
Wire Size Range (AWG)	24	24
Wire size range (mm²)	.25	.25
total length	16.51 mm [ .65 in ]	22.1 mm [ .87 in ]
Operating temperature (max) (°C)	150	150
Resistance properties	Splash protection	Splash protection
Wire temperature (max) (°C)	125	125
