BSTS-07X100FR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> BSTS-07X100FR

BSTS-07X100FR: DescriptionBSTS-07X100FR; Categoryaccessories; File Size112KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BSTS-07X100FR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BSTS-07X100FR	-	-	View	Buy Now

BSTS-07X100FR Overview

BSTS-07X100FR

BSTS-07X100FR Parametric

Parameter Name	Attribute value
Wall type	single
Product Series	BSTS-FR
Voltage (max) (kV)	.6
color	black
Shrinkage	3:1
Material	Irradiated modified polyolefin
flexibility	semi-rigid
Fluid type	water
Expand inner diameter (minimum value)	19.05 mm [ .75 in ]
Recovered inner diameter (maximum) (mm)	5.59, 5.6
Restored inner diameter (max) (in)	.22, 0.2204
Cutting length (in)	1200
Recovered wall thickness (tolerance)	2.41 mm [ .095 in ]
Shrinkage temperature (min) (°C)	90
Resistant	friction
Operating temperature range (°C)	-55 – 110
Flammability	ignition retardation
Shrinkage temperature (°C)	121
fluid resistance	splash proof
Applicable area	global, global
Encapsulation method	pieces
Product source	US
Low outgassing	no

Preview

Download Datasheet

View All

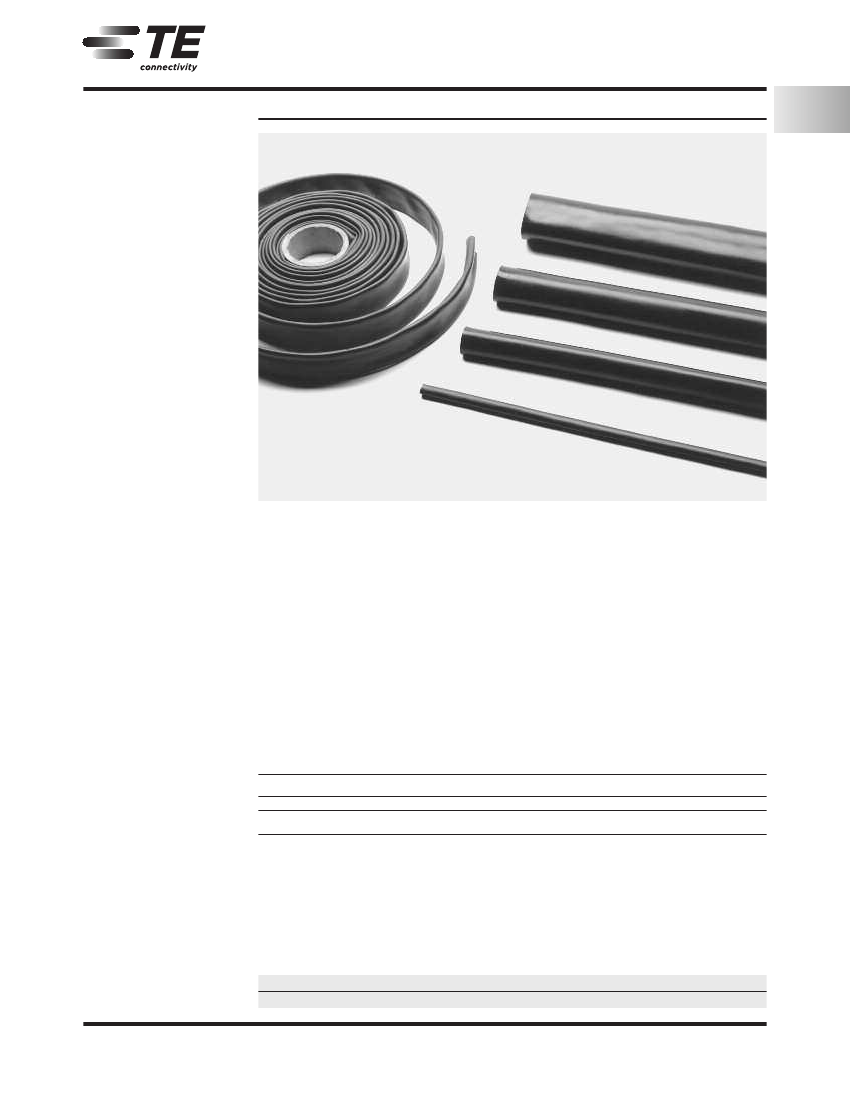

RAYCHEM Tubing Products

BSTS/BSTS-FR

General Purpose,

Heat-Shrinkable Tubing

Product Facts

Excellent thick-wall

insulation and abrasion

protection

No adhesive – can be

removed easily

Expansion ratios as high as

3:1

Availability in flame-

retardant material with FR

callout (see “Ordering

information and Part

numbering system” on the

next page)

BSTS has the following

agency approvals:

- ABS (American Bureau of

Shipping)

- Lloyd’s (Lloyd’s Register of

Shipping)

RoHS compliant

Heat-shrinkable Tubing

Applications

BSTS heat-shrinkable tubing

is made of a rugged poly-

mer that resists moisture,

fungus, and weathering. It

also has excellent electrical

properties. This tubing is

useful in applications where

insulation, abrasion resist-

ance, and strain relief are

important. When used with

sealant tape (S-1305 for

flame-retardant or S-1278

for non-flame-retardant), it

can provide a watertight

system in nonpressurized

applications.

Specifications/Approvals

Series

BSTS

BSTS-FR

Military

Installation

Minimum shrink

temperature: 90°C [194°F]

Minimum full recovery

temperature: 121°C [250°F]

Operating Temperature Range

-55°C to 110°C

[-67°F to 230°F]

Industry

—

ASTM D 685, nonburning

Raychem

RW-2017

—

AMS-DTL-23053/15*,

Class 1 and Class 2**

*Formerly MIL-I-23053/15 and MIL-DTL-23053/15.

**Except for coatings requirement. Refer to SST-FR when coating is required.

Available in:

Americas

Europe

Asia Pacific

1-5

9-1773447-9

CIS WR 08/2011

te.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-475-6222

Mexico: 52-55-1106-0800

L. & S. America: 54-11-4733-2200

Germany: 49-6251-133-1999

China: 86-400-820-6015

Japan: 81-44-844-8013

UK: 44-800-267-666

BSTS-07X100FR Related Products

	BSTS-07X100FR	CU9212-000	CL9351-000	CB5001-000	BSTS-13X4FR/NM	CJ1417-000
Description	BSTS-07X100FR	BSTS-11X4FR/NM	BSTS-17X25FR/RED/NM	BSTS-03X4	BSTS-13X4FR/NM	BSTS-11X25/NM
Wall type	single	single	single	single	single	single
Product Series	BSTS-FR	BSTS-FR	BSTS-FR	BSTS	BSTS-FR	BSTS
Voltage (max) (kV)	.6	.6	.6	.6	.6	.6
color	black	black	red	black	black	black
Shrinkage	3:1	3:1	3:1	3:1	3:1	3:1
Material	Irradiated modified polyolefin	Irradiated modified polyolefin	Irradiated modified polyolefin	Irradiated modified polyolefin	Irradiated modified polyolefin	Irradiated modified polyolefin
flexibility	semi-rigid	semi-rigid	semi-rigid	semi-rigid	semi-rigid	semi-rigid
Fluid type	water	water	water	water	water	water
Cutting length (in)	1200	48 – 49	300	48 – 49	48 – 49	300
Recovered wall thickness (tolerance)	2.41 mm [ .095 in ]	3.05 mm [ .12 in ]	3.56 mm [ .14 in ]	1.78 mm [ .07 in ]	3.05 mm [ .12 in ]	3.05 mm [ .12 in ]
Shrinkage temperature (min) (°C)	90	90	90	90	90	90
Resistant	friction	tension, friction, mechanical damage, liquid	tension, friction, mechanical damage, liquid	tension, friction, mechanical damage, liquid	tension, friction, mechanical damage, liquid	tension, friction, mechanical damage, liquid
Operating temperature range (°C)	-55 – 110	-55 – 110	-55 – 110	-55 – 110	-55 – 110	-55 – 90
Flammability	ignition retardation	ignition retardation	ignition retardation	Non-flammable	ignition retardation	Non-flammable
Shrinkage temperature (°C)	121	121	121	121	121	121
fluid resistance	splash proof	splash proof	splash proof	splash proof	splash proof	splash proof
Applicable area	global, global	global, global	global, global	global, global	global, global	global, global
Encapsulation method	pieces	pieces	pieces	pieces	pieces	pieces
Product source	US	US	US	US	US	US
Low outgassing	no	no	no	no	no	no
Expand inner diameter (minimum value)	19.05 mm [ .75 in ]	27.94 mm [ 1.1 in ]	43.18 mm [ 1.7 in ]	7.62 mm [ .3 in ]	-	27.94 mm [ 1.1 in ]
Recovered inner diameter (maximum value)	-	9.52 mm [ .375 in ]	12.7 mm [ 0.5 in ]	2.54 mm [ .1 in ]	9.52 mm [ .375 in ]	9.52 mm [ .375 in ]
