Part Number

Search

5-146503-4

Description
08 MODII HDR DRST UNSHRD STKG
CategoryThe connector
File Size307KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

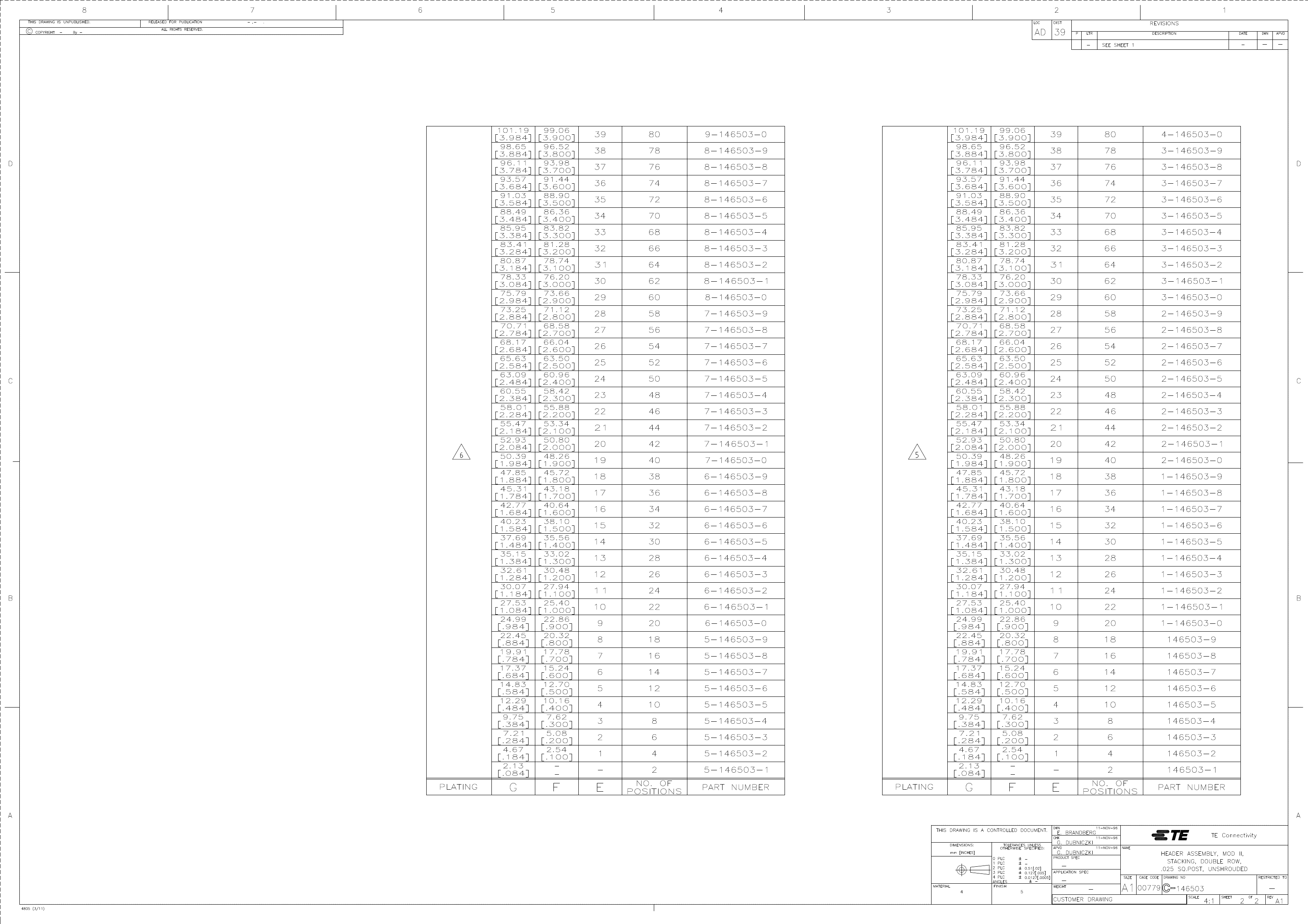

Download Datasheet Parametric View All

5-146503-4 Online Shopping

Suppliers Part Number Price MOQ In stock
5-146503-4 - - View Buy Now

5-146503-4 Overview

08 MODII HDR DRST UNSHRD STKG

5-146503-4 Parametric

Parameter NameAttribute value
PCB Connector Component TypesPCB mounting header
Line spacing2.54 mm [ .1 in ]
Connectors and terminals terminate toA printed circuit board
seriesAMPMODU
lugsno
Stackableyes
PCB mounting directionvertical
Number of Positions8
Rows2
Insulation resistance (MΩ)5000
Terminal base materialbrass
PCB terminal termination area plating materialstin
Solder tail terminal plating material surface coatingTin: matte
Terminal shapesquare
Terminal contact plating materialgold
Terminal Contact Plating Thickness (µin)15
Terminal typePin
Contact Current Rating (Max) (A)3
PCB Terminal Termination Area Plating Thickness (µin)100 – 200
PCB Termination MethodsThrough hole
Termination cylinder length31.24 mm [ 1.23 in ]
PCB installation and fixationWithout
Centerline (Pitch)2.54 mm [ .1 in ]
Shell colorblack
Shell materialthermoplastic
stacking height20.32 mm [ .8 in ]
tail length2.54 mm [ .1 in ]
Joint post length8.38 mm [ .33 in ]
Working group temperature range (°C)-65 – 125
Assembly process characteristicsnone
pick and place coverWithout
Applicable toFemale components
approved standardsCSA LR7189, UL E28476
UL flammability ratingUL 94V-0
Encapsulation methodcarton
Package quantity150
