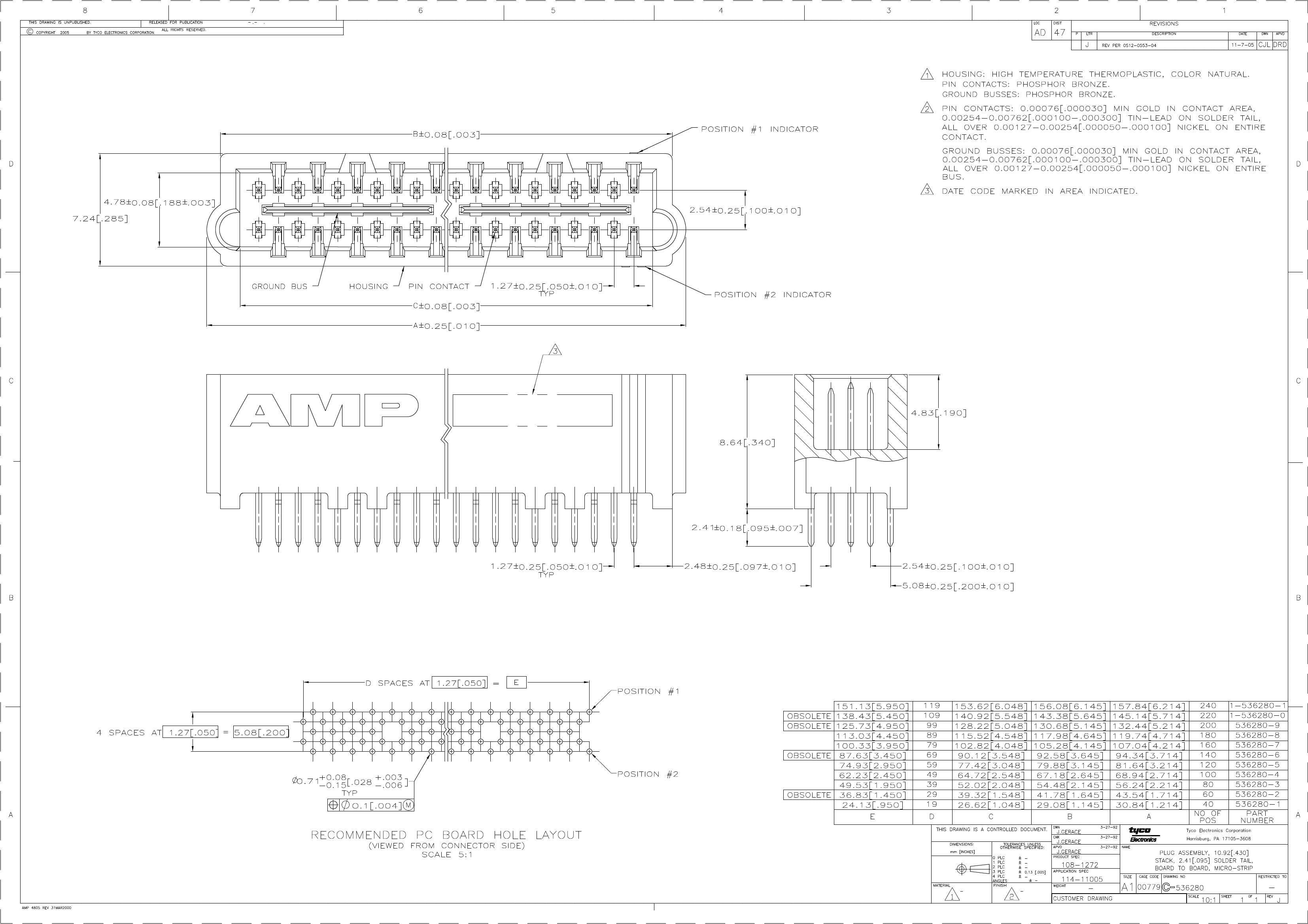

536280-4 datasheet, PDF - EEWORLD Datasheet

536280-4: Description100,PLUG,VT,095,30AU; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

536280-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	536280-4	-	-	View	Buy Now

100,PLUG,VT,095,30AU

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH DENSITY, POLARZED
body width	0.285 inch
subject depth	0.34 inch
body length	2.714 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.095 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100
Base Number Matches	1
