Part Number

Search

1-2199119-5

Description
M.2 0.5PITCH 3.2H KEY M 15U'' AU
CategoryThe connector
File Size318KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1-2199119-5 Online Shopping

Suppliers Part Number Price MOQ In stock
1-2199119-5 - - View Buy Now

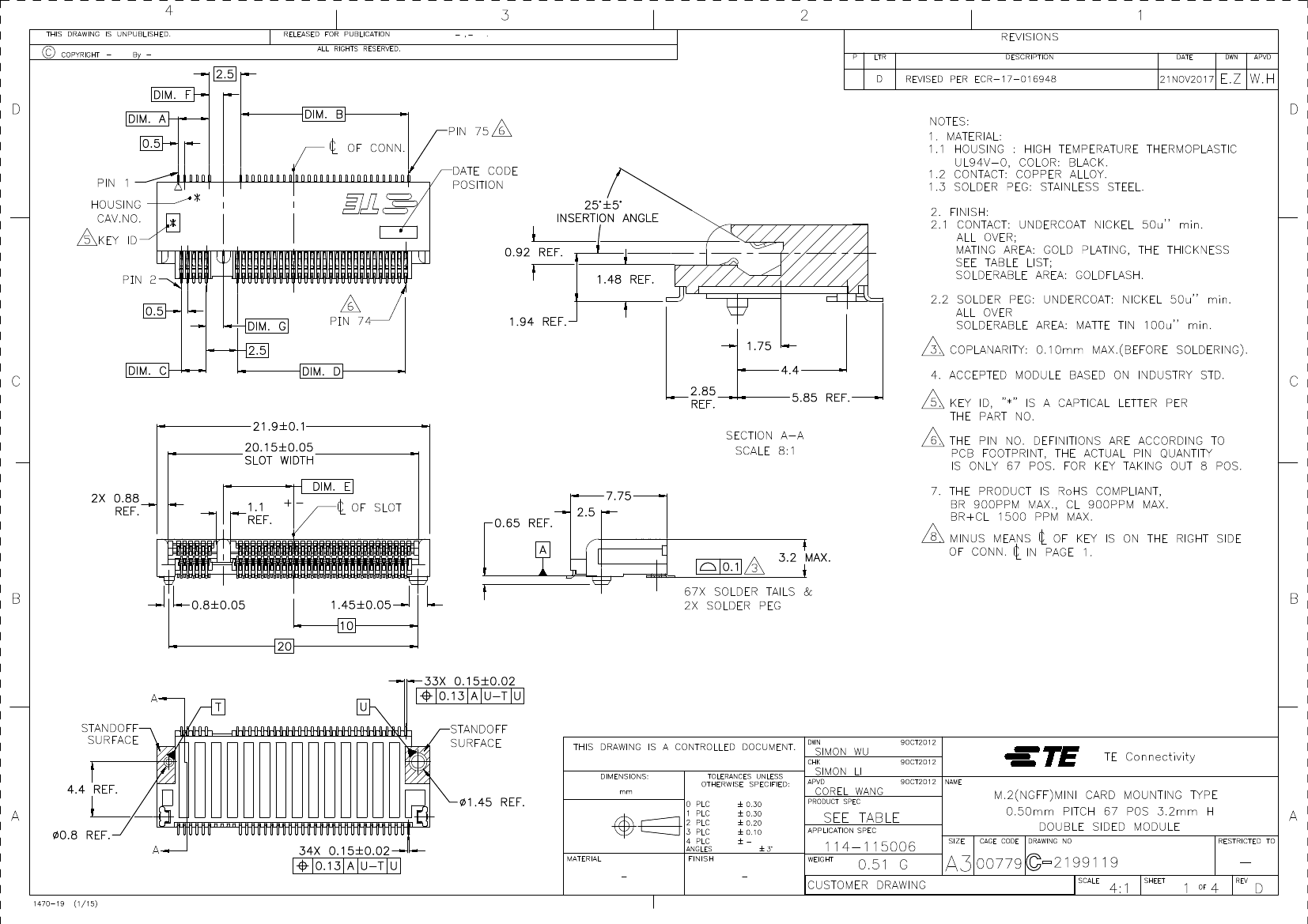

1-2199119-5 Overview

M.2 0.5PITCH 3.2H KEY M 15U'' AU

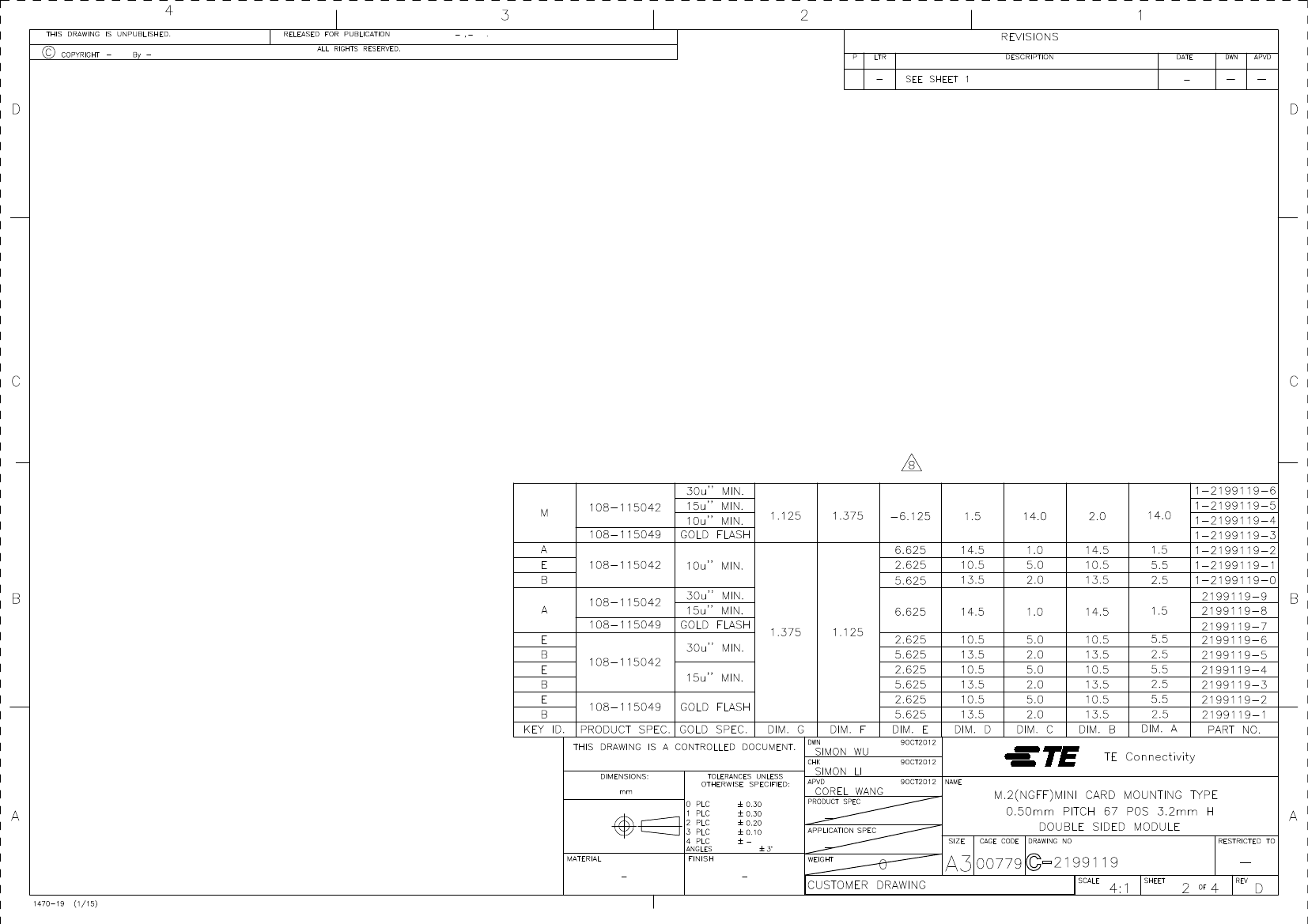

1-2199119-5 Parametric

Parameter NameAttribute value
Connector SystemBoard to Board
Sealableno
Connectors and terminals terminate toA printed circuit board
PCB mounting directionright angle
keyingM
Number of Positions67
Rows2
Operating voltage (VAC)50
Terminal base materialcopper alloy
Terminal contact plating materialgold
Contact Current Rating (Max) (A).5
Terminal plating materialsgold
PCB terminal termination area plating material surface coatingmatte
Terminal Plating Thickness (µin)15
Terminal termination area plating materialTin, thin gold plated

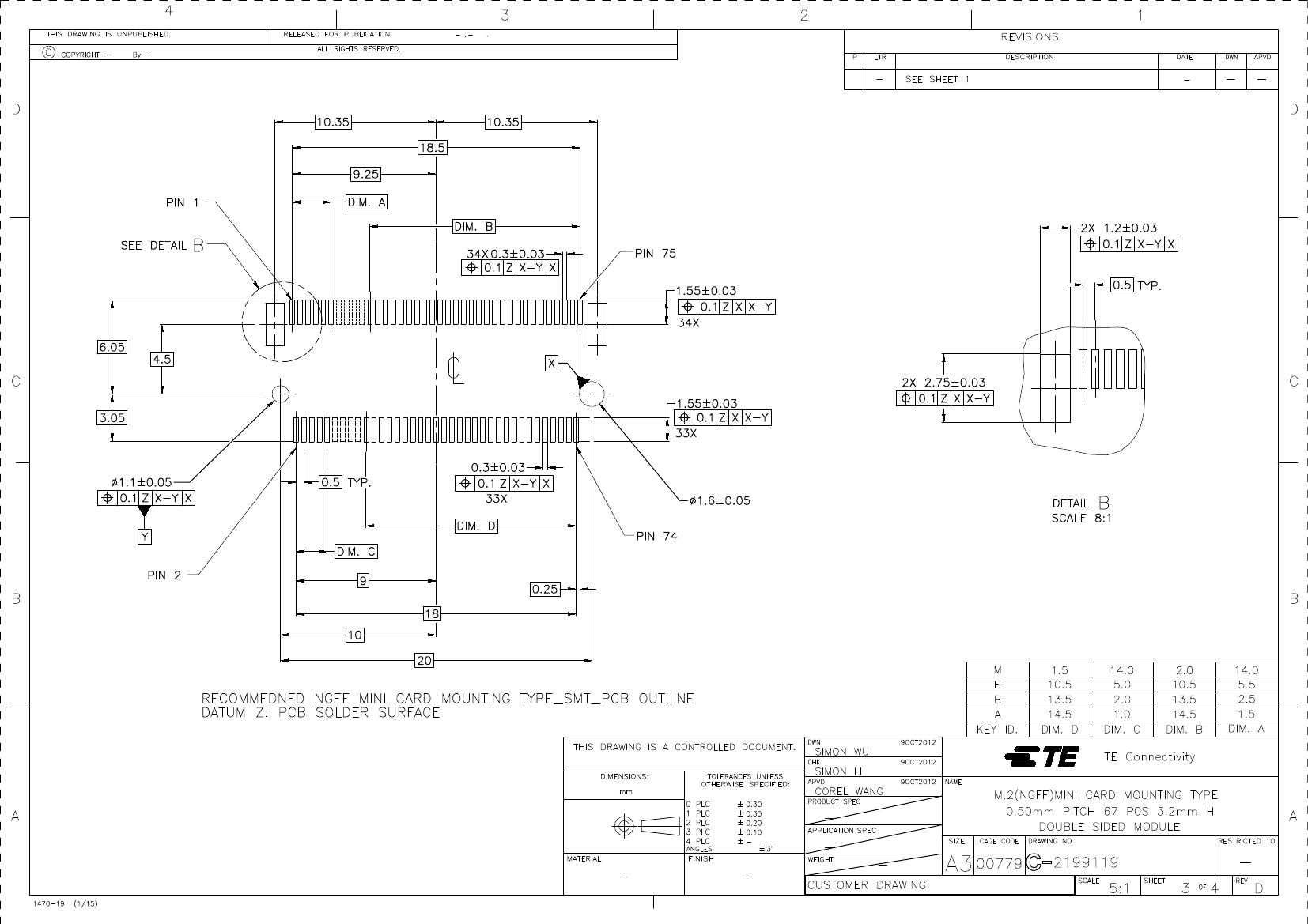

PCB installation methodsurface mount
Connector mounting typeboard mounting
Centerline (Pitch).5 mm [ .0197 in ]
Shell colorblack
Shell materialhigh temperature thermoplastics
high3.2 mm [ .126 in ]
width8.7 mm [ .343 in ]
length21.9 mm [ .862 in ]
Working group temperature range-40 – 80 °C [ -40 – 176 °F ]
Circuit ApplicationPower

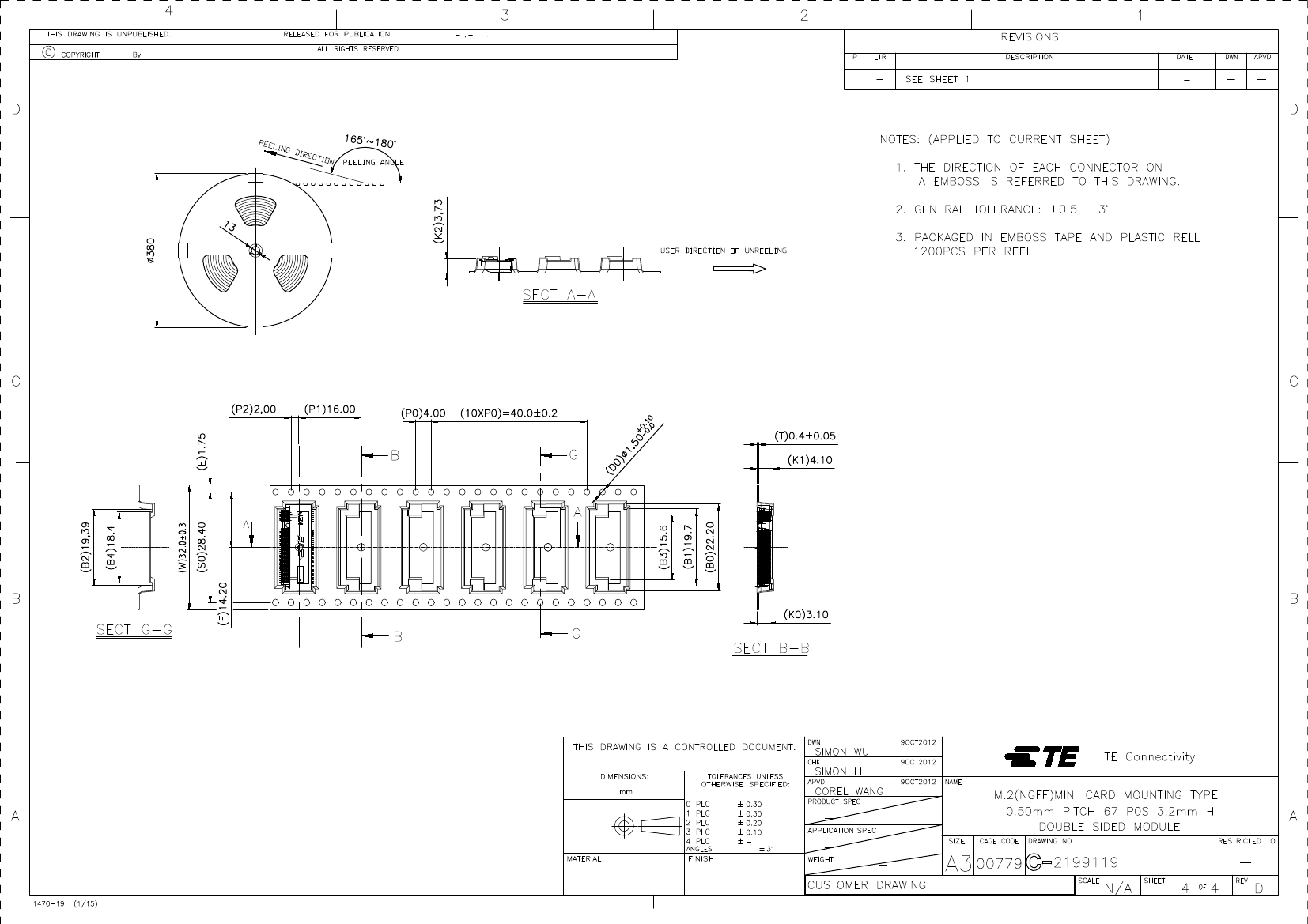

Encapsulation methodtape reel
