5745057-3 datasheet, PDF - EEWORLD Datasheet

5745057-3: DescriptionHD-20 RCPT 15P VERT THD INS; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5745057-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5745057-3	-	-	View	Buy Now

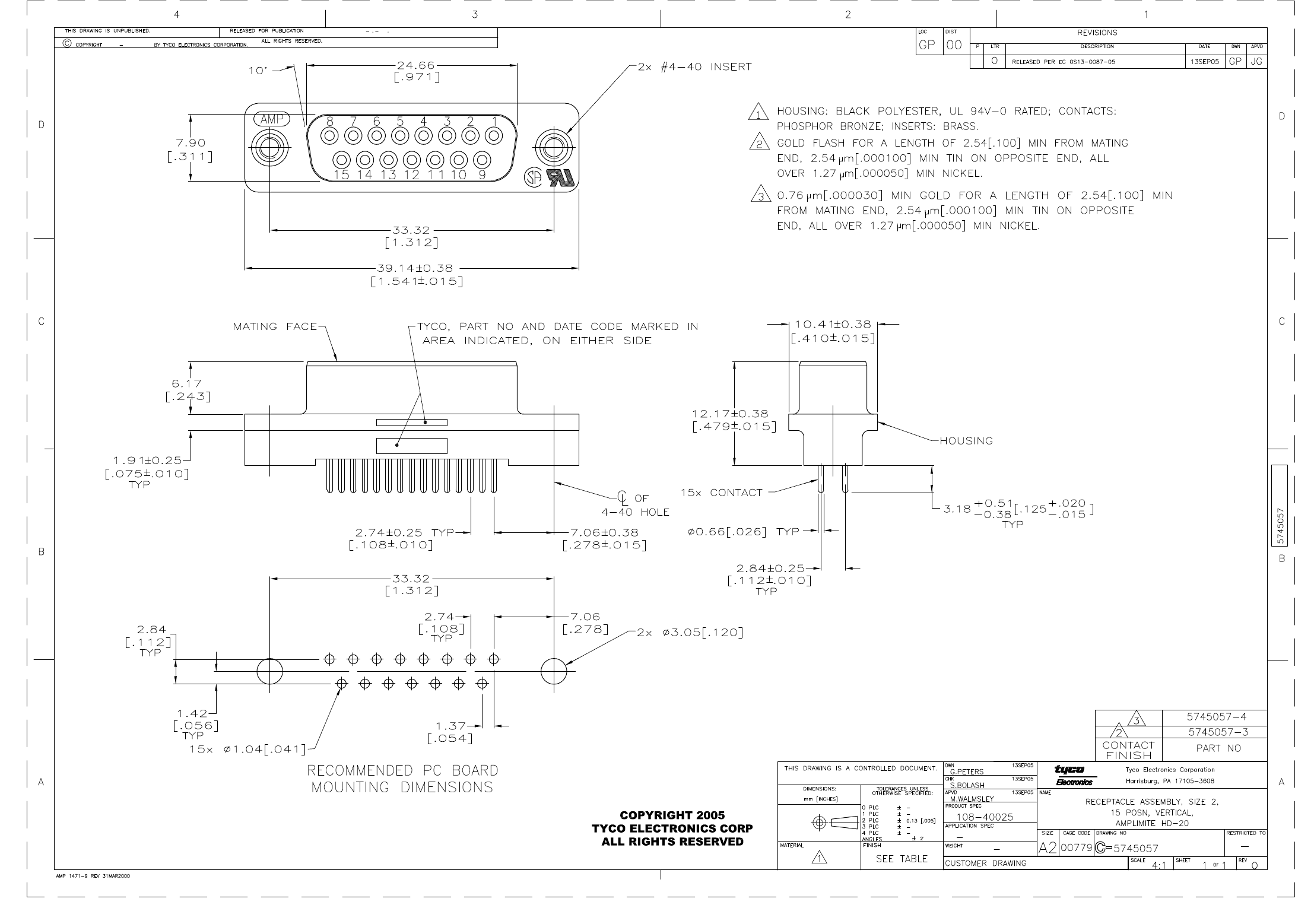

HD-20 RCPT 15P VERT THD INS

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	not_compliant
Factory Lead Time	9 weeks
Other features	AMPLIMITE
body width	0.41 inch
subject depth	0.236 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	POLYESTER
Housing size	2/A
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1
