Part Number

Search

5-146269-5

Description
10 MODII HDR DRST B/A 100 W/HD
CategoryThe connector
File Size335KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5-146269-5 Online Shopping

Suppliers Part Number Price MOQ In stock
5-146269-5 - - View Buy Now

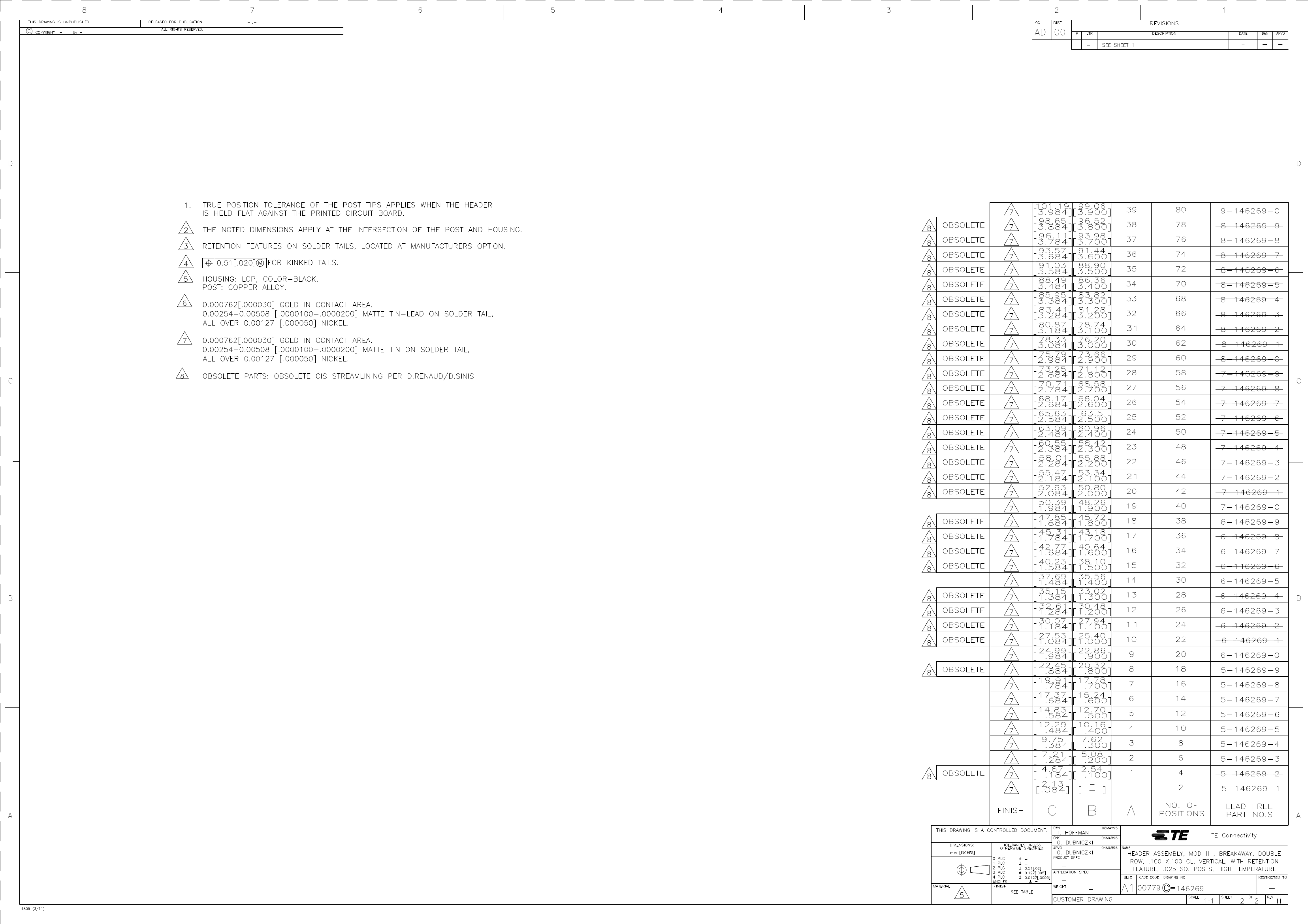

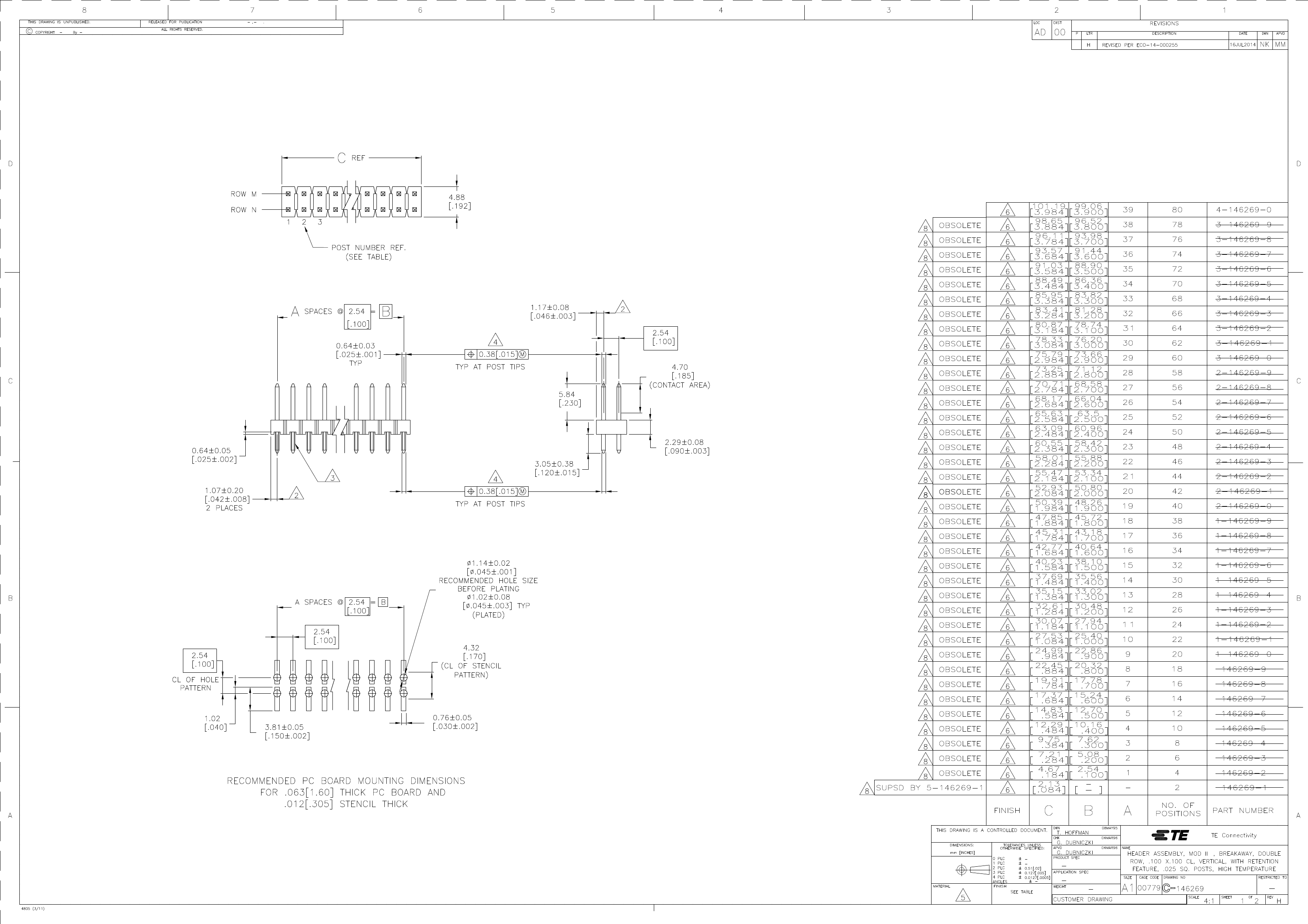

5-146269-5 Overview

10 MODII HDR DRST B/A 100 W/HD

5-146269-5 Parametric

Parameter NameAttribute value
PCB Connector Component TypesPCB mounting header
Connectors and terminals terminate toA printed circuit board
Connector typeseparation
Line spacing2.54 mm [ .1 in ]
sealing ringWithout
shapestandard
stabilizing deviceWithout
plate supportwith
stress reliefWithout
Connector terminal load statusFully loaded
PCB mounting directionvertical
Number of Positions10
Rows2
keyingno
Medium pressure resistance750 V
Voltage (VAC)30
Cylinder size.64 mm [ .025 in ]
Terminal base materialPhosphor bronze
PCB terminal termination area plating materialstin
Terminal base materialnickel
Terminal protectionWithout
Terminal shapesquare
Terminal typePin
Contact Current Rating (Max) (A)3
Terminal Contact Plating Thickness (µin)30
Terminal contact plating materialgold
PCB Termination Methodssurface mount, through hole
Termination cylinder length3.05 mm [ .12 in ]
Terminal Plating Thickness (µin)100 – 200
Terminal plating materialsmatte tin lead
PCB mounting fixation typeFixed solder tail
PCB installation and fixationwith
Panel mount featuresWithout
Engage connector latchWithout
PCB installation methodThrough hole
joint alignmentWithout
Centerline (Pitch)2.54 mm [ .1 in ]
Shell materialthermoplastic
Shell colorblack
PCB thickness (recommended)1.57 mm [ .062 in ]
Joint post length5.84 mm [ .23 in ]
Working group temperature range (°C)-65 – 105
High temperature shellyes
High speed serial data connectorno
approved standardsCSA LR7189, UL E28476
UL flammability ratingUL 94V-0
Package quantity320
Encapsulation methodcarton
