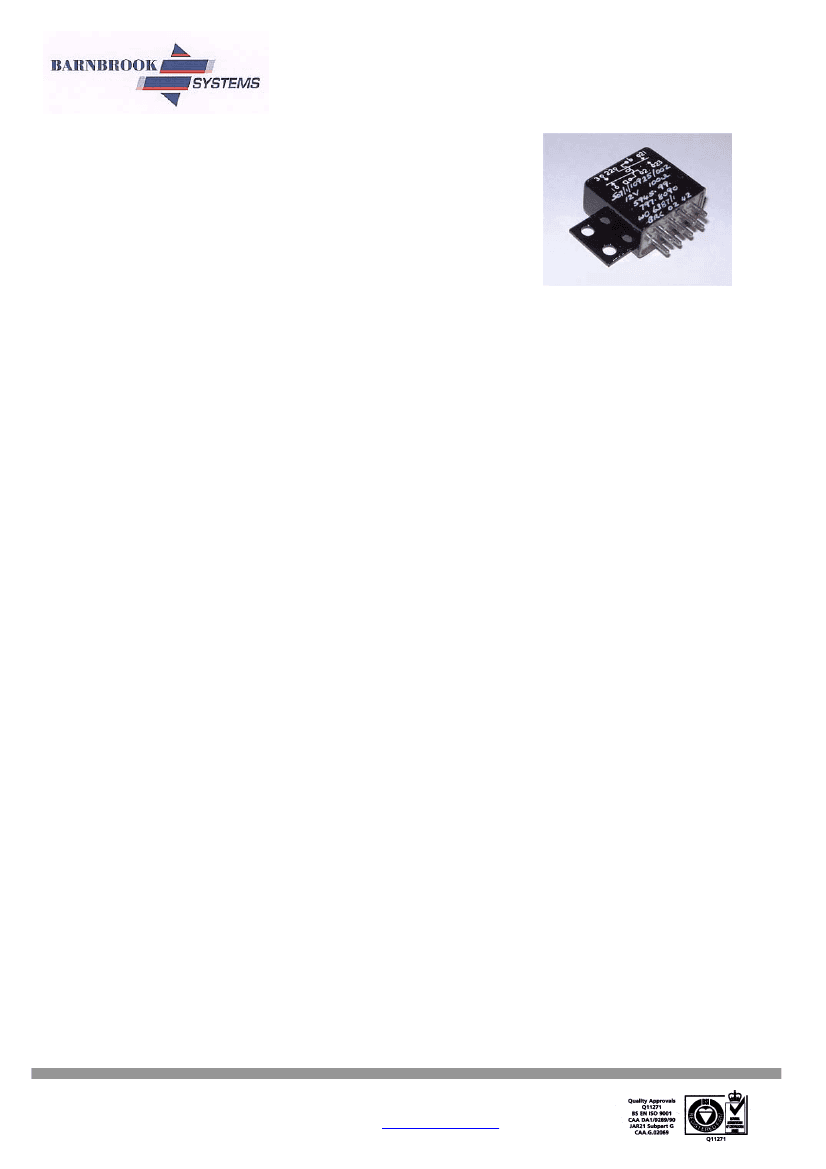

DATA SHEET
The CS Relay is an hermetically sealed relay in the crystal can
size range.
The balanced armature provides excellent performance under
conditions of shock, acceleration and vibration
The welded construction is a further asset, ensuring increased
reliability and the relay is filled with an inert gas before sealing
RELAY
Key Features
•
•
•
Hermetically sealed.
Balanced force armature.
Excellent performance under conditions of shock,
acceleration and vibration.
Type CS
Specification
Electrical
Contact resistance
Operate time
Release Time
Bounce Time
Endurance Test
Contact Rating and Life
03, medium duty contacts
30 m
Ω
max. initial measured at 5V with 1A max.
7 ms
7 ms
5 ms max.
10
5
operations at 125
o
C, 1200 operations per hour max.
Contacts loading 28V dc 10 amp resistive.
Max. contact voltage 32V dc 115V ac 400 Hz
Min. contact voltage 5V dc or ac
Max. contact current 10A dc or ac rms
Min.contact current 1A dc or ac rms
On request
Capable of 20 ops per min. at maximum contact load
3W at 25
o
C, 2W at 125
o
C
1000 V rms 50/60 Hz
As above but open and closed contacts to frame and
Coil 1600V rms 50/60 Hz
1000M
Ω
min. at 500V dc
2C
Silver
Missed operations Test
Switching Rate
Maximum Permissible Coil Dissipation
Voltage Proof:
All styles less bridge mounting
Bridge mounting style
507/1/10939/003 to 103
Insulation Resistance
Contact arrangement
Contact material
Environmental and Physical
Weight
Temperature Category
Vibration
Acceleration
Bump
Shock
35 gm max.
-65
o
C to +125
o
C
0.4 double amplitude 10 to 60 Hz
196 m/s
2
(20 g). 60 to 1500 Hz
490 m/s
2
(50 g)
4000 bumps, 390 m/s
2
, 40 g, 6ms.
490 m/s
2
, 50 g, 11 ms.
See sheet 2 and 3 for dimensional details
See sheet 5 for details of how order.
Dimensions
Ordering Information
Data Sheet No
DSRELCS-0305
Sheet 1 of 5
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET
RELAY
Type CS

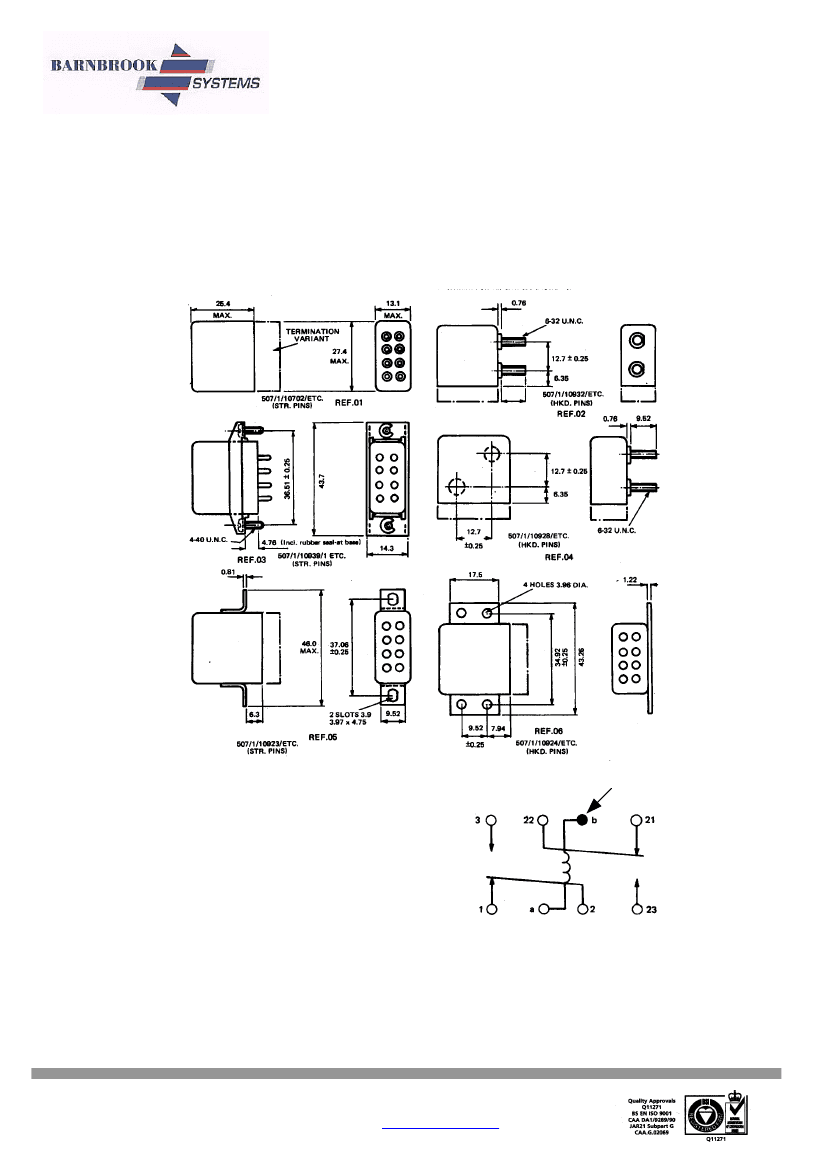

Mounting Variants
All dimensions are in millimetres.
Tolerances
±0.40
unless otherwise stated. Can dimensions shown in
Ref 01 apply to all variants.
All terminations are allowable.
Identification
Each relay carries adequate identifying data
which is printed on the side of the can:
Part Number
Schematic Diagram
Voltage
Manufacturing Date Code
Contact Code
Schematic
Blue Bead
The relay is enclosed in a cupro-nickel can, which is finished with epoxy painf.
Terminations are tin plated to facilitate solder connections.
Data Sheet No
DSRELCS-0305
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
Sheet 2 of 5
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET

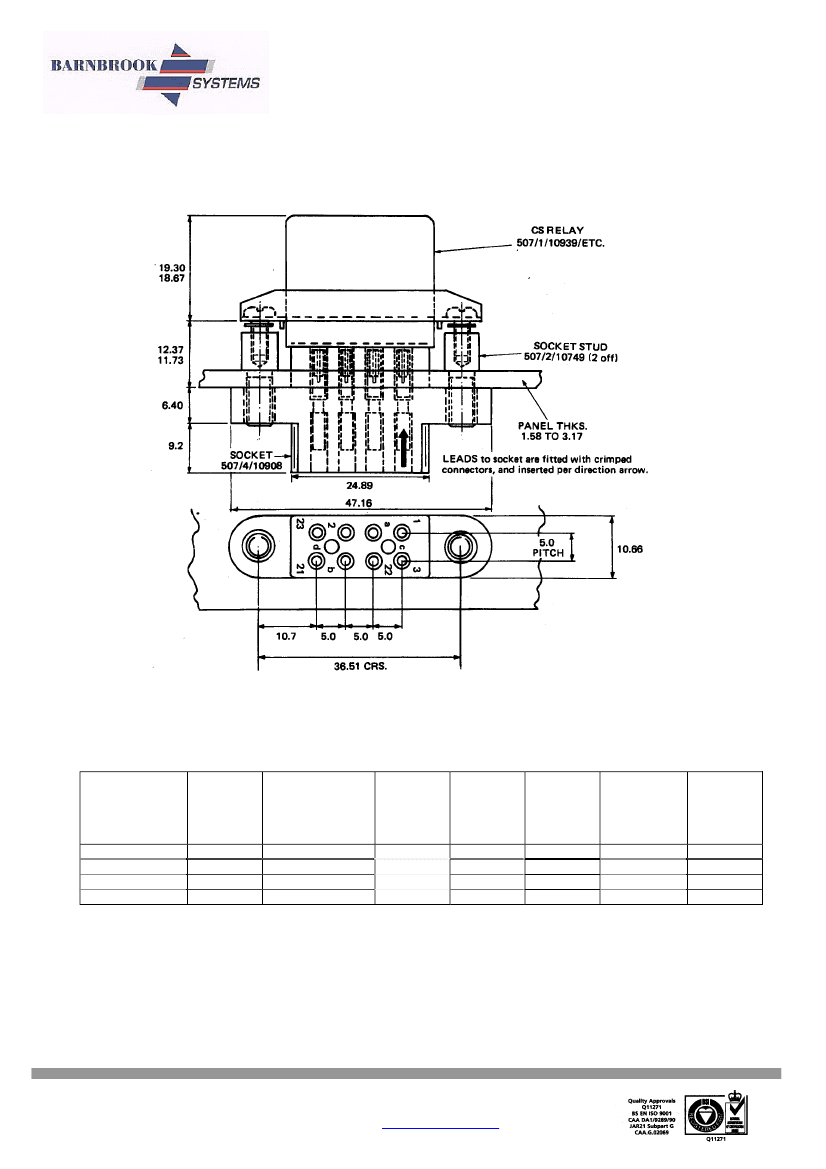

Plug-in Facility
RELAY
Type CS
All dimensions are in millimetres
Coil Variants
A range of coils to suit DEF 5165 and BS 9151 is available as under. Special requirements are catered for, on
request
Rated dc
BS 9151
Voltage Range
Rated
Drop-out
Barnbrook
Resistance (
Ω)
Coil
Saturate
Pull-in
dc
over the
Voltage
Coil
Voltage dc Voltage dc
Variant
at
25
o
C
Operating temp.
Voltage
dc
Code
Code
(Tol.+/-10%)
Range
25
6.0
5.25 - 7.20
75
3.5
0.35
01
001
100
12.0
10.50 - 14.40
30
7.0
0.70
02
002
440
24.0
21.00 - 28.80
15.5
14.5
1.50
03
003
1570
48.0
42.00 - 56.60
7.3
30.0
3.00
04
004
For all inductive loads an adequate contact protection and spark quenching circuit must be fitted
Data Sheet No
DSRELCS-0305
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
Sheet 3 of 5
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET
RELAY
Type CS

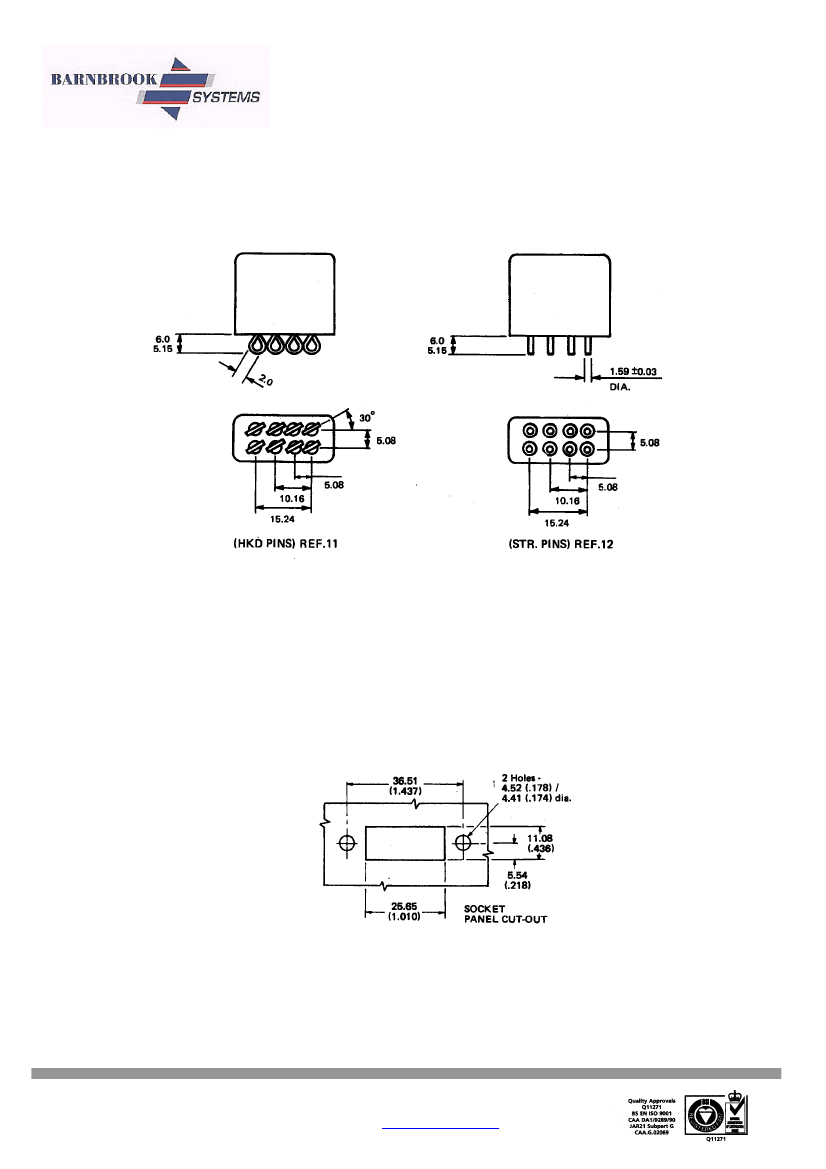

Terminations
Tolerances
±0.25
unless otherwise stated
All dimensions are in millimetres
Socket – Panel Cut out
Data Sheet No
DSRELCS-0305
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
Sheet 4 of 5
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET
RELAY
Type CS
Ordering Information
The ordering Part Number comprises two basic functions.
The first gives the mounting and termination style and the second is the coil code obtained from the ‘Coil
Data’ table.
Example
507/1/10939/003
Plug-in Mounting
Straight Pin Terminations
440
Ω
Coil
Alternatively, whn BS 9151 is implemented, relays may be ordered to that specification. In this
case the following information should be provided.:
(1)
(2)
BS Number of the detail specification
Code number in the order as follows:
Two digits for contact rating.
Two digits for coil variant.
Two digits for mounting variant.
Two digits for termination variant.
Example
BS 9151
CS Relay
Contact Rating
Coil Variant
F003
03
03
03
12
24V 440
Ω
Mounting Variant
Termination Variant
Plug-in Mt.
Straight Pins
507/1/10939/003 Manufacturing Part Number.
(Indicate rubber seal if required additionally.
Data Sheet No
DSRELCS-0305
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
Sheet 5 of 5
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
