5-2271140-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-2271140-2

5-2271140-2: DescriptionM12 MALE PNL.A CODE.8P.PCB TYPE.(AU); CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-2271140-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-2271140-2	-	-	View	Buy Now

5-2271140-2 Overview

M12 MALE PNL.A CODE.8P.PCB TYPE.(AU)

5-2271140-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	8003321317
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	23 weeks
Samacsys Description	TE Connectivity M12 PCB Mount Connector, 8 Pole Socket
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-04-09 20:00:51
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	2A
Mixed contacts	NO
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	HERMETIC
Panel mounting	NO
polarization	A
polarization key	POLARIZED
Rated current (signal)	2 A
Housing size	18
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG

RELEASED FOR PUBLICATION

FREI FUER VEROEFFENTLICHUNG

2014

MATED WITH:

PASSEND ZU:

PRJ-14-000000805

PROJEKT NR.:

REVISIONS

LTR

AENDERUNGEN

DESCRIPTION

BESCHREIBUNG

DATE

DWN

APVD

2014

Tyco Electronics AMP GmbH

ADDED PCB LAYOUT IN DRAWING

3-2271140-2 AND 4-2271140-2 DISCONTINUED

20AUG2014

25SEP2017

MATERIAL: ITEM NO. 1: HOUSING

- ZINC DIECASTING, NICKEL PLATED

ITEM NO. 2: CONTACT BODY - PA

ITEM NO. 3: CONTACT

- CuZn (brass)

CONTACT FINISH - Au (gold)

ALL DIMENSIONS ARE FOR NOMINAL REFERENCE ONLY UNLESS OTHERWISE STATED

PACKAGING: 20 PIECE IN A BAG

2.8

8+12POS. n

0.6

4+5POS. n 1.0

3-2271140-2

4-2271140-2

5-2271140-2

TECHNICAL

DATA

RATED VOLTAGE

6-2271140-2

RATED IMPULSE VOLTAGE

POLLUTION DEGREE

OVERVOLTAGE CATEGORY

MATERIAL GROUP

RATED CURRENT

VOLUME RESISTIVITY

DEGREE OF PROTECTION

UPPER TEMPERATURE

LOWER TEMPERATURE

2500V

<3m ^

IP68

+85°C

-40°C

250V

1500V

<3m ^

IP68

+85°C

-40°C

125V

800V

<3m ^

IP68

+85°C

-40°C

60V

500V

<3m ^

IP68

+85°C

-40°C

30V

M 12x1

PG 9

SW 18mm

MAX. 4.5

PIN ARRANGEMENT

A-CODING (SCALE 2:1)

3-2271140-2

4-2271140-2

5-2271140-2

6-2271140-2

5--2

SHOWN

WIE GEZEICHNET

26 / 0.14mm²

MATERIAL

NUMBER OF POLES

6-2271140-2

5-2271140-2

4-2271140-2

3-2271140-2

TE-PART-NO.

PCB LAYOUT

24 / 0.25mm²

$ X)

9 (6

38 (8X)

15.5 $

RE $

24 / 0.25mm²

SIZE ISO 14405

•

DWN

24 / 0.25mm²

AWG / mm²

66 F

WIRES

DIESE ZEICHNUNG IST EIN KONTROLLIERTES DOKUMENT.

BEMASSUNGEN UND TOLERANZEN GEMAESS GPS (ISO STANDARDS).

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

MASSEINHEITEN:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ALLGEMEINTOLERANZEN

DIMENSIONING AND TOLERANCING PER GPS (ISO STANDARDS).

CHK

YASHKUMAR

M.STRELOW

15MAY2014

NAME

TE Connectivity

APVD

5.5

2.26

MATERIAL

5.8

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

/WINKEL

PRODUCT SPEC

PRODUKTSPEZ.

15MAY2014

C.SCHRETTLINGER

SEE NOTES

FINISH

/OBERFLAECHE/FARBE

APPLICATION SPEC

VERARBEITUNGSSPEZ.

108-19483

SEE NOTES

114-32127

WEIGHT

GEWICHT

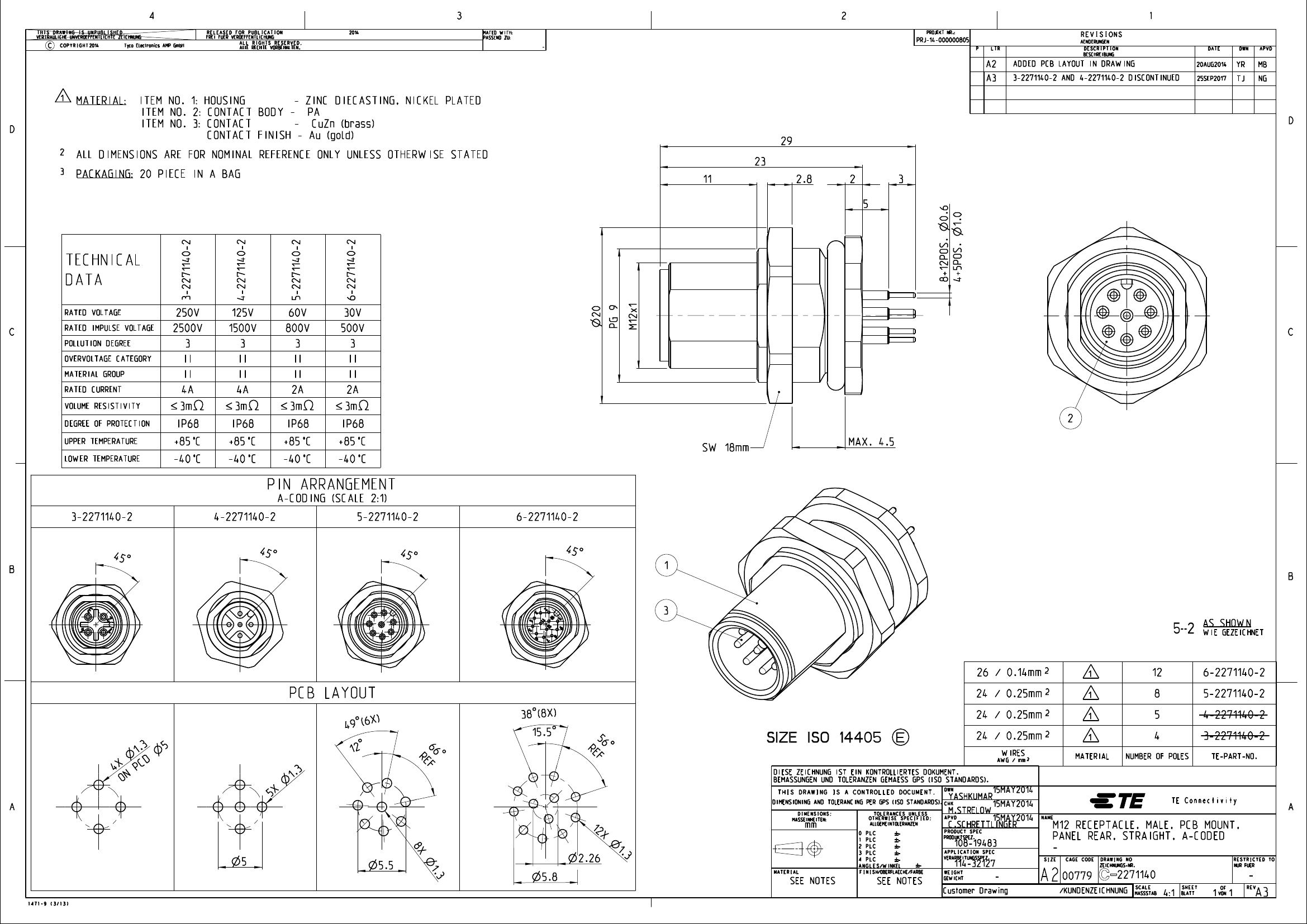

Customer Drawing

00779

SIZE

M12 RECEPTACLE, MALE, PCB MOUNT,

PANEL REAR, STRAIGHT, A-CODED

CAGE CODE DRAWING NO

ZEICHNUNGS-NR.

2271140

SCALE

MASSSTAB

RESTRICTED TO

NUR FUER

/KUNDENZEICHNUNG

1471-9 (3/13)

4:1

SHEET

BLATT

VON

REV
