8068-50S-0321-05 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8068-50S-0321-05

Preview

8068-50S-0321-05: DescriptionBoard Connector; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

8068-50S-0321-05 Overview

Board Connector

8068-50S-0321-05 Parametric

Parameter Name	Attribute value
Maker	ECS
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	8000
Base Number Matches	1

Preview

Download Datasheet

View All

CC

S

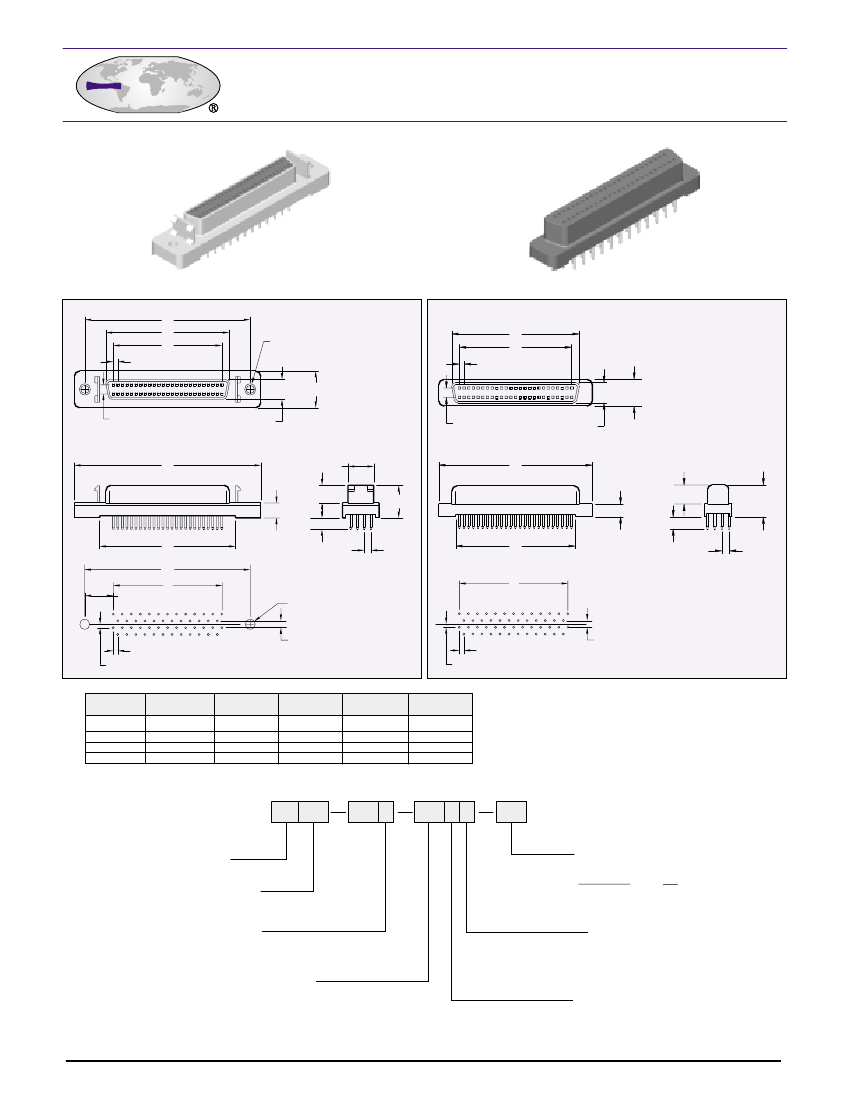

Vertical Mount PCB Solder and Press Fit

8000 Series SCSI

Metal Shell

D

B

A

.050 [1.27] TYP.

.406 [10.3]

MOUNTING HOLES

All Plastic

B

A

.050 [1.27] TYP.

.287 [7.3]

.100 [2.54]

.218 [5.54]

.100 [2.54]

.218 [5.54]

C

.284 [7.2]

.197 [5.0]

.165 [4.2]

.128 [3.25]

C

.362 [9.2]

.197 [5.0]

.134 [3.4]

.331 [8.4]

.122 [3.11]

D

E

.075 [1.905] TYP.

D

A

.315 [8.00]

ø.109 [2.77]

A

.075 [1.9]

.050 [1.27] TYP.

.0375 [.952]

.050 [1.27] TYP.

.0375 [.952]

.075 [1.9]

CONTACTS

A

1.200 [30.48]

1.650 [41.91]

B

1.366 [34.70]

1.816 [46.13]

C

2.065 [52.45]

1.644 [41.77]

2.515 [63.88]

2.094 [53.20]

D

1.830 [46.48]

1.279 [32.48]

2.280 [57.91]

1.729 [43.91]

E

1.504 [38.20]

1.279 [32.48]

1.954 [49.63]

1.729 [43.91]

Hole Size Requirements:

Drilled Hole Diameter: Ø.0276 [0.701]

Plating: .003 [0.70] min. Tin Lead over .001-.0015

[.025-.038] Copper.

Finished Hole Diameter: Ø.022 - Ø.026 [Ø.56 - Ø.066]

50

All Plastic-50

68

All Plastic-68

Dimensions are in inches [mm]

80 XX

SERIES CODE

NO. OF CONTACTS

50, 68

PART NUMBERING

50 S

XX X X

XX

50µ” Nickel Underplate

Mating Area

Tail

100µ” Tin Lead

05

= Au Flash

100µ” Tin Lead

20

= 15µ” Gold

100µ” Tin Lead

30

= 30µ” Gold

1

= Solder

2

= Press Fit

CONTACT PLATING

CONNECTOR TYPE

S

= Receptacle

TAIL STYLE

01

= Without Mounting Holes

02

= 4-40 UNC

03

= 2-56 UNC

04

= M2.6 X 0.45

MOUNTING STYLE OPTIONS

SHELL

1

= All Plastic (solder only)

2

= Metal Shell

3

= Metal Shell with Latch Locks

Consult Factory for other Mounting Options

WWW.ECSCONN.COM

8068-50S-0321-05 Related Products

	8068-50S-0321-05	8068-50S-0411-20	8050-50S-0411-20	SIP-4789SD-01-1580FF	SIP-4789SD-01-1583DA	8050-50S-0321-05
Description	Board Connector	Board Connector	Board Connector	Array/Network Resistor, Isolated, Thin Film, 0.8W, 158ohm, 100V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, 8007, SIP-8	Array/Network Resistor, Isolated, Thin Film, 0.8W, 158000ohm, 100V, 0.5% +/-Tol, 100ppm/Cel, Through Hole Mount, 8007, SIP-8	Board Connector
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	ECS	ECS	ECS	-	-	ECS
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Manufacturer's serial number	8000	8000	8000	-	-	8000
Base Number Matches	1	1	1	-	-	1
