Part Number

Search

5646486-1

Description
8-ROW,TWST,TUL TYPE/D W/SHEILD
CategoryThe connector    The connector
File Size167KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

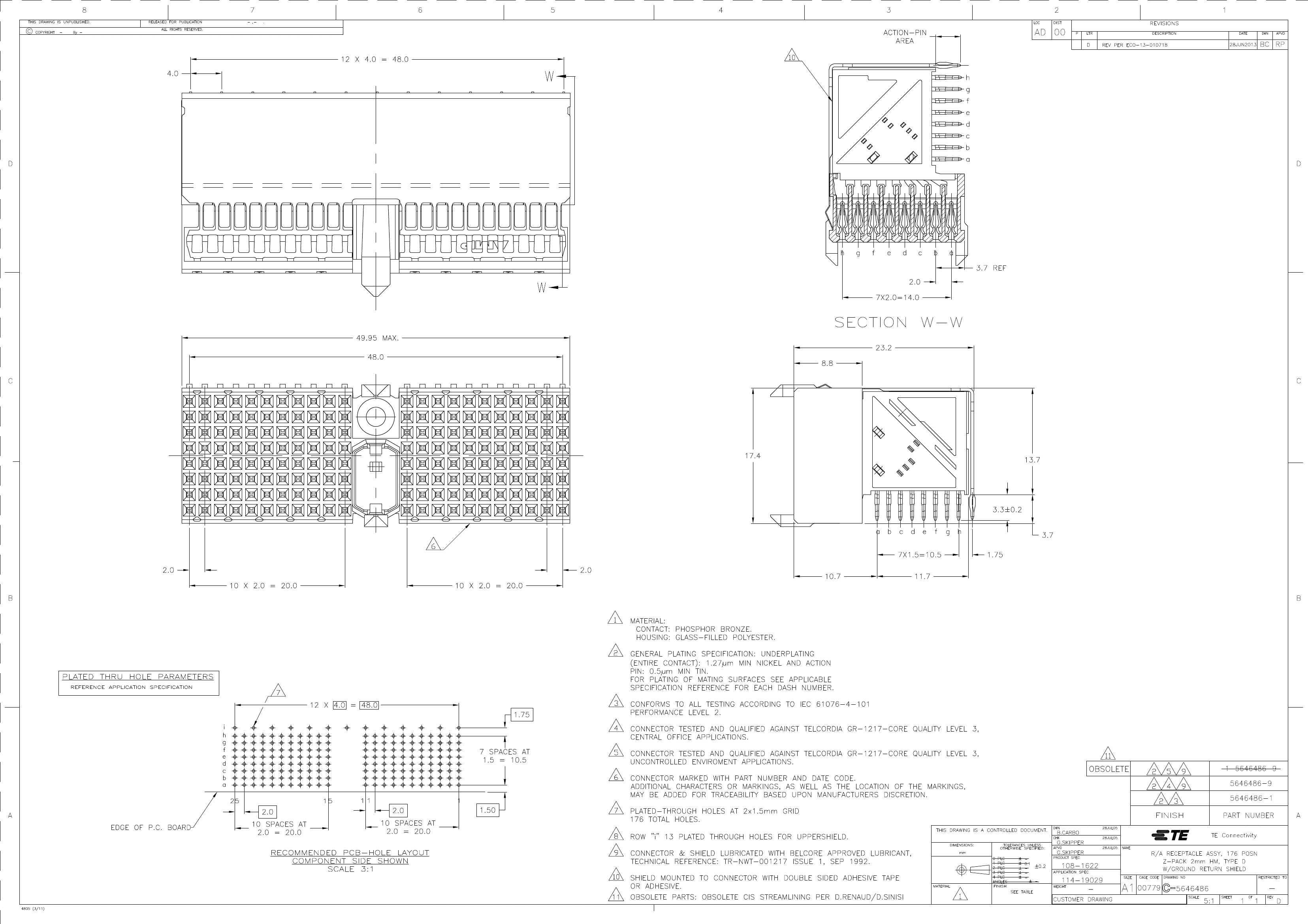

Download Datasheet Parametric View All

5646486-1 Online Shopping

Suppliers Part Number Price MOQ In stock
5646486-1 - - View Buy Now

5646486-1 Overview

8-ROW,TWST,TUL TYPE/D W/SHEILD

5646486-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks
body width0.685 inch
subject depth0.913 inch
body length1.966 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.7506 N
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number8
Number of rows loaded8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.129 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts176
Evacuation force-minimum value.139 N
Base Number Matches1
