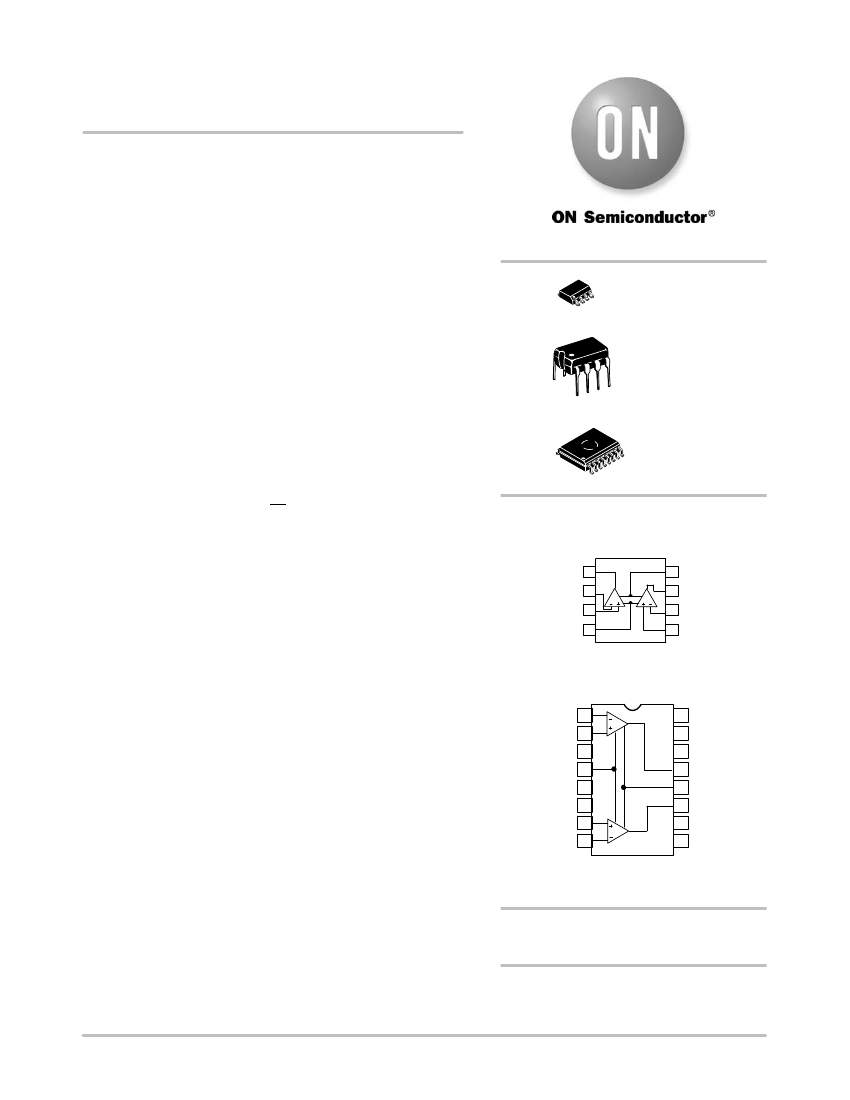

NE5532, SA5532, SE5532,

NE5532A, SE5532A

Internally Compensated

Dual Low Noise

Operational Amplifier

The 5532 is a dual high-performance low noise operational

amplifier. Compared to most of the standard operational amplifiers,

such as the 1458, it shows better noise performance, improved output

drive capability and considerably higher small-signal and power

bandwidths.

This makes the device especially suitable for application in

high-quality and professional audio equipment, instrumentation and

control circuits, and telephone channel amplifiers. The op amp is

internally compensated for gains equal to one. If very low noise is of

prime importance, it is recommended that the 5532A version be used

because it has guaranteed noise voltage specifications.

Features

http://onsemi.com

SOIC−8

D SUFFIX

CASE 751

PDIP−8

N SUFFIX

CASE 626

•

Small-Signal Bandwidth: 10 MHz

Output Drive Capability: 600

10 V

RMS

Input Noise Voltage:

5.0 nV Hz

(Typical)

DC Voltage Gain: 50000

AC Voltage Gain: 2200 at 10 kHz

Power Bandwidth: 140 kHz

Slew Rate: 9.0 V/ms

Large Supply Voltage Range:

"3.0

"20

Compensated for Unity Gain

Pb−Free Packages are Available

SOIC−16 WB

D SUFFIX

CASE 751G

PIN CONNECTIONS

N, D8 Packages

OUT

−IN

+IN

V-

8 V+

7 OUT

−IN

5 +IN

Top View

D Package*

−IN

+IN

V−

+IN

−IN

OUT

V+

OUT

Top View

*SOL and non-standard pinout.

DEVICE MARKING INFORMATION

See general marking information in the device marking

section on page 6 of this data sheet.

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

Semiconductor Components Industries, LLC, 2013

September, 2013

−

Rev. 2

Publication Order Number:

NE5532/D
