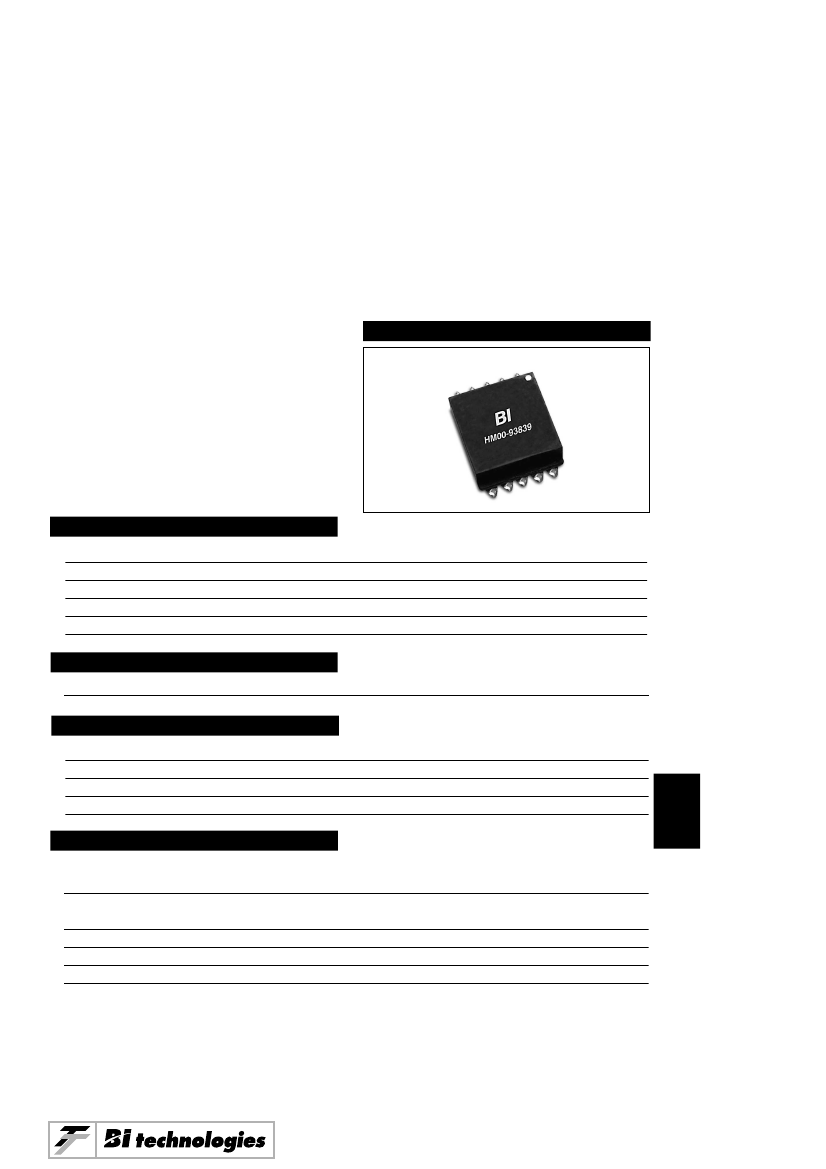

MODEL HM00-93839
Low Profile
Dual-Output
Surface Mount Inductors
FEATURES AND BENEFITS
•
•
•
•
•
Low profile surface mount design
Low core loss, high efficiency
Compatible with surface mount process temperatures
Base material meets UL 94V-O requirements
Used in combination with Linear Technology switching regulator LTC 1149
APPLICATIONS
• Notebook computers
ELECTRICAL / ENVIRONMENTAL
Insulation Resistance, Minimum
Operating Temperature Range
Ambient Temperature, Maximum
Insulation System
SPECIFICATIONS
100 Megohm
-40°C to +130°C
80°C
Class B, 130°C
6
Primary Inductance at 1.0 kHz (Strap Terminals 2 & 8)
(1-7)
Winding DC Resistance, Maximum
(1-8), (2-7), (3-6)
Input Voltages
Output Power
Dielectric Breakdown Voltage
Specifications subject to change without notice.
17.4 µH ±15%
20 mΩ
8V to 24V
Combination of 3.3V and 5V loads, totaling 17 watts or less
300 Vdc
6-127
Model HM00-93839
